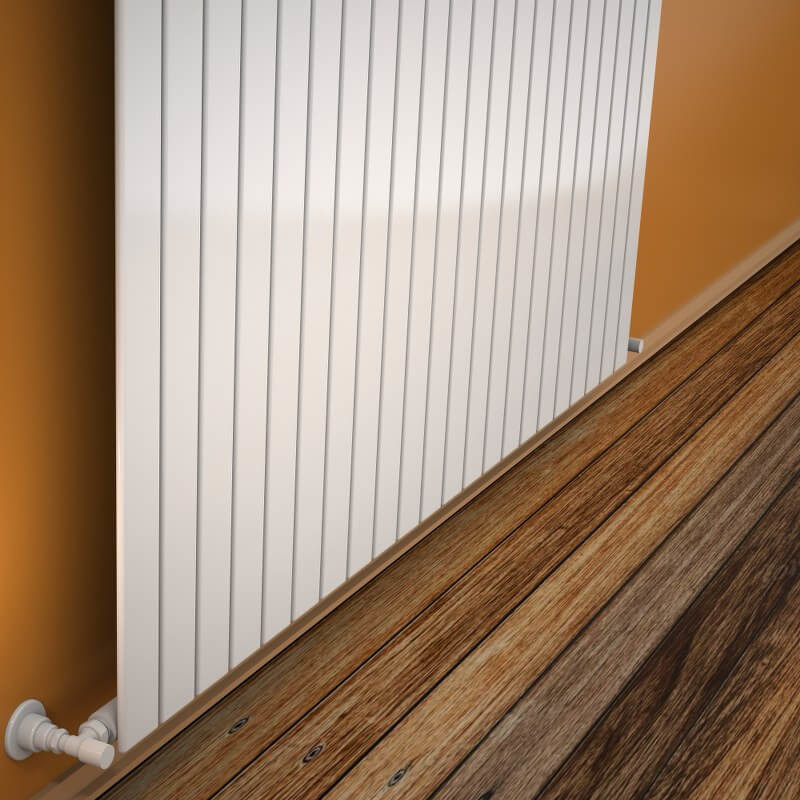

Type 10V Radiateur Décoratif 900x1624 Blanc

Name: Type 10V Radiateur Décoratif 900x1624 Blanc
SKU: 210V09001624B1PS
Price: 23694.00 TRY
Availability: InStock

Code De Produit : 210V09001624B1PS

Garantie : 10 Année

TAXES INCLUSES

Prix

43.080,00 TL

Prix réduit

23.694,00 TL

10 ans
Garantie

2000€ +
Livraison gratuite

Options de axe

Entrée Standard

Bas Milieu 50mm

Bas à gauche 50mm

Bas à droite 50mm

Choisissez la quantité

Ajouter Au Panier

Livraison Prévue

23.01.2025 (60 Jours)

Ajouter Un Commentaire Alerte Prix Ajouter À Ma Liste De Courses

Caractéristiques Du Produit
Téléchargements
Les Options De Paiement
Commentaires (0)

INFORMATIONS TECHNINQUES
• Model = 10V

• Matériel =Acier

• Hauteur=900 mm

• Largeur=1624 mm

• Couleur / Revêtement=Blanc vif RAL9016

• Nombre de sections=22 Pièces

• Nombre total de profils=22+0 Pièces

• Dimensions des profils=70x11 mm

• Dimension du collecteur=38 mm

• Pression de service maximale=4,5 bar

• Profondeur du radiateur=48 mm

• Du mur au centre de l'entrée=40 mm

• Distance entre mur et surface devant =69 mm

• Dimension du filetage du radiateur=1/2"

• Volume d'eau=12,6 lt

• Weight=35,4 kg

• Poids brute=40,09 kg

• Dimension de carton=167x95x8,6 cm

TAPPING OPTIONS

• Entrée Standard1 =1714 mm

• Entrée Standard2 =850 mm

• Croix d'entrée standard =1714 mm

• Entrée du bas au milieu=50mm

• Entrée du bas a droite=50mm

• Entrée du bas a gauche=50mm

Puissance thérmique

Kcal / h

• Puissance thérmique75/65-20°?t=50°C = 1515 Kcal/h

• Puissance thérmique90/70-20° ?t=60°C=1909Kcal/h

• Puissance thérmique55/45-20° ?t=30°C=776 Kcal/h

Watts

• Puissance thérmique75/65-20°?t=50°C=1761 Watt

• Puissance thérmique90/70-20°?t=60°C=2219 Watt

• Puissance thérmique55/45-20°?t=30°C=902 Watt

Btu

• Puissance thérmique75/65-20°?t=50°C=6009 Btu

• Puissance thérmique90/70-20°?t=60°C=7572 Btu

• Puissance thérmique55/45-20°?t=30°C=3077 Btu
