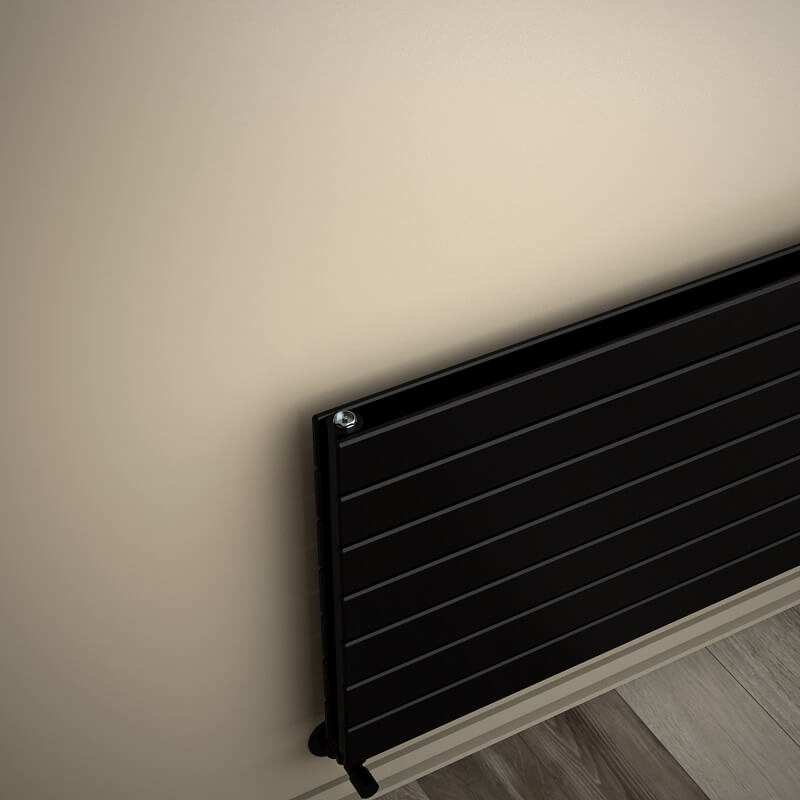

Type 20H Radiateur Décoratif 514x1000 Noir mat

Name: Type 20H Radiateur Décoratif 514x1000 Noir mat
SKU: 220H05141000B3MS
Price: 17736.68 TRY
Availability: InStock

Code De Produit : 220H05141000B3MS

Garantie : 10 Année

TAXES INCLUSES

Prix

32.248,50 TL

Prix réduit

17.736,68 TL

10 ans
Garantie

2000€ +
Livraison gratuite

{"vat":20,"m_o_p":0,"variant_ids":{"60_0":"6176","59_0":"8921","58_0":"11666","57_0":"14411","56_0":"17156","55_0":"18416","54_0":"19676","53_0":"21170","52_0":"21506"},"variant_prices":{"60_0":14780.5625,"59_0":15660.5625,"58_0":15660.5625,"57_0":15660.5625,"56_0":15660.5625,"55_0":15660.5625,"54_0":15660.5625,"53_0":15660.5625,"52_0":15660.5625},"variant_price_raws":{"60_0":14780.5625,"59_0":15660.5625,"58_0":15660.5625,"57_0":15660.5625,"56_0":15660.5625,"55_0":15660.5625,"54_0":15660.5625,"53_0":15660.5625,"52_0":15660.5625},"buying_prices":{"60_0":"0","59_0":"0","58_0":"0","57_0":"0","56_0":"0","55_0":"0","54_0":"0","53_0":"0","52_0":"0"},"not_discounted_prices":{"60_0":"26873.75","59_0":"28473.75","58_0":"28473.75","57_0":"28473.75","56_0":"28473.75","55_0":"28473.75","54_0":"28473.75","53_0":"28473.75","52_0":"28473.75"},"variant_supplier_codes":{"60_0":"220H05141000B3MS","59_0":"220H05141000B3MM2","58_0":"220H05141000B3MM3","57_0":"220H05141000B3MM1","56_0":"220H05141000B3MY0","55_0":"220H05141000B3MC1","54_0":"220H05141000B3MC2","53_0":"220H05141000B3MR2","52_0":"220H05141000B3ML2"},"active_ids":{"one_60":["0"],"two_0":["60","59","58","57","56","55","54","53","52"],"one_59":["0"],"one_58":["0"],"one_57":["0"],"one_56":["0"],"one_55":["0"],"one_54":["0"],"one_53":["0"],"one_52":["0"]},"variant_informations":{"60_0":{"additional_information":""},"59_0":{"additional_information":""},"58_0":{"additional_information":""},"57_0":{"additional_information":""},"56_0":{"additional_information":""},"55_0":{"additional_information":""},"54_0":{"additional_information":""},"53_0":{"additional_information":""},"52_0":{"additional_information":""}},"variant_stocks":{"60_0":"100","59_0":"100","58_0":"100","57_0":"100","56_0":"100","55_0":"100","54_0":"100","53_0":"100","52_0":"100"}}

Options de axe

Entrée Standard

Bas à droite 50mm

Bas à gauche 50mm

Bas Milieu 50mm

Côté-Bas Droite Bas Gauche

Croix-gauche en bas en haut à droite

Croisé en haut à gauche en bas à droite

514 Dek Radyator Yan-45cm Giriş Sağ

514 Dek Radyator Yan-45cm Giriş Sol

Choisissez la quantité

Ajouter Au Panier

Livraison Prévue

20.01.2025 (60 Jours)

Ajouter Un Commentaire Alerte Prix Ajouter À Ma Liste De Courses

Caractéristiques Du Produit
Téléchargements
Les Options De Paiement
Commentaires (0)

INFORMATIONS TECHNINQUES
• Model = 20H

• Matériel =Acier

• Hauteur=514 mm

• Largeur=900 mm

• Couleur / Revêtement=Anthracite

• Nombre de sections=7 Pièces

• Nombre total de profils=7+7 Pièces

• Dimensions des profils=70x11 mm

• Dimension du collecteur=38 mm

• Pression de service maximale=4,5 bar

• Profondeur du radiateur=58 mm

• Du mur au centre de l'entrée=64 mm

• Distance entre mur et surface devant =93 mm

• Dimension du filetage du radiateur=1/2"

• Volume d'eau=7,2 lt

• Weight=21,1 kg

• Poids brute=22,79 kg

• Dimension de carton=57x96x9,6 cm

TAPPING OPTIONS

• Entrée Standard=850 mm

• Entrée du bas au milieu=50mm

• Entrée du bas a droite=50mm

• Entrée du bas a gauche=50mm

• Côtés / Bas Droite-Gauche=990mm

• Croix en haut à droite / en bas à gauche=990mm

• Croix haut-gauche / bas-droite=990mm

• Côté - droit=450mm

• Côté - gauche=450mm

Puissance thérmique

Kcal / h

• Puissance thérmique75/65-20°?t=50°C = 703 Kcal/h

• Puissance thérmique90/70-20° ?t=60°C=886Kcal/h

• Puissance thérmique55/45-20° ?t=30°C=360Kcal/h

Watts

• Puissance thérmique75/65-20°?t=50°C=817 Watt

• Puissance thérmique90/70-20°?t=60°C=1030 Watt

• Puissance thérmique55/45-20°?t=30°C=419 Watt

Btu

• Puissance thérmique75/65-20°?t=50°C=2788 Btu

• Puissance thérmique90/70-20°?t=60°C=3513 Btu

• Puissance thérmique55/45-20°?t=30°C=1428 Btu

Informations Sur La Garantie

:

10 Années

Livraison Info

:

60 Jours

Les Étiquettes Des Produits

panel radyatör , radyatör petek , radyatör fiyatları , radyatör modelleri , dizayn panel radyatör , dizayn panel radyatör fiyatları , dizayn radyatör , panel radyatör modelleri , radyatör ölçüleri , radyatörler , siyah radyatör , mat siyah radyatör

D'autres Couleurs

%45 réduit
AKS Seçenekleri

{"vat":20,"m_o_p":0,"variant_ids":{"60_0":"6173","59_0":"8918","58_0":"11663","57_0":"14408","56_0":"17153","55_0":"18413","54_0":"19673","53_0":"21167","52_0":"21503"},"variant_prices":{"60_0":11824.45,"59_0":12704.45,"58_0":12704.45,"57_0":12704.45,"56_0":12704.45,"55_0":12704.45,"54_0":12704.45,"53_0":12704.45,"52_0":12704.45},"variant_price_raws":{"60_0":11824.45,"59_0":12704.45,"58_0":12704.45,"57_0":12704.45,"56_0":12704.45,"55_0":12704.45,"54_0":12704.45,"53_0":12704.45,"52_0":12704.45},"buying_prices":{"60_0":"0","59_0":"0","58_0":"0","57_0":"0","56_0":"0","55_0":"0","54_0":"0","53_0":"0","52_0":"0"},"not_discounted_prices":{"60_0":"21499","59_0":"23099","58_0":"23099","57_0":"23099","56_0":"23099","55_0":"23099","54_0":"23099","53_0":"23099","52_0":"23099"},"variant_supplier_codes":{"60_0":"220H05141000B1PS","59_0":"220H05141000B1PM2","58_0":"220H05141000B1PM3","57_0":"220H05141000B1PM1","56_0":"220H05141000B1PY0","55_0":"220H05141000B1PC1","54_0":"220H05141000B1PC2","53_0":"220H05141000B1PR2","52_0":"220H05141000B1PL2"},"active_ids":{"one_60":["0"],"two_0":["60","59","58","57","56","55","54","53","52"],"one_59":["0"],"one_58":["0"],"one_57":["0"],"one_56":["0"],"one_55":["0"],"one_54":["0"],"one_53":["0"],"one_52":["0"]},"variant_informations":{"60_0":{"additional_information":""},"59_0":{"additional_information":""},"58_0":{"additional_information":""},"57_0":{"additional_information":""},"56_0":{"additional_information":""},"55_0":{"additional_information":""},"54_0":{"additional_information":""},"53_0":{"additional_information":""},"52_0":{"additional_information":""}},"variant_stocks":{"60_0":"97","59_0":"100","58_0":"100","57_0":"100","56_0":"100","55_0":"100","54_0":"100","53_0":"100","52_0":"100"}}

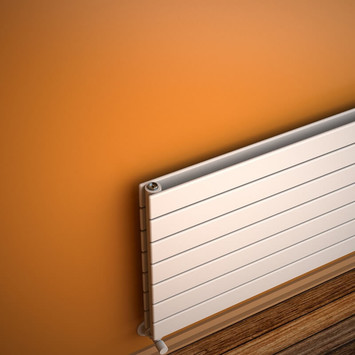

Type 20H Radiateur Décoratif 514x1000 Blanc ∆t50°C=781 Kcal/h |∆t60°C= 984 Kcal/h | 7 Tuyeaux | Chauffe 5-15 m2
