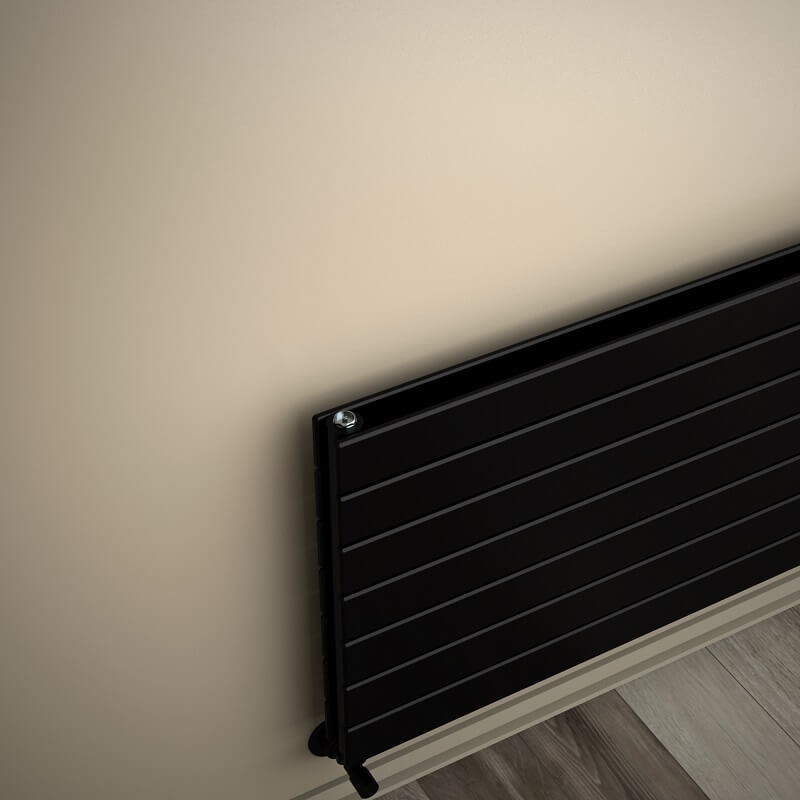

Type 20H Radiateur Décoratif 514x1100 Noir mat

Name: Type 20H Radiateur Décoratif 514x1100 Noir mat
SKU: 220H05141100B3MS
Price: 19101.23 TRY
Availability: InStock

Code De Produit : 220H05141100B3MS

Garantie : 10 Année

TAXES INCLUSES

Prix

34.729,50 TL

Prix réduit

19.101,23 TL

10 ans
Garantie

2000€ +
Livraison gratuite

{"vat":20,"m_o_p":0,"variant_ids":{"60_0":"6180","59_0":"8925","58_0":"11670","57_0":"14415","56_0":"17160","55_0":"18420","54_0":"19680","53_0":"21174","52_0":"21510"},"variant_prices":{"60_0":15917.6875,"59_0":16797.6875,"58_0":16797.6875,"57_0":16797.6875,"56_0":16797.6875,"55_0":16797.6875,"54_0":16797.6875,"53_0":16797.6875,"52_0":16797.6875},"variant_price_raws":{"60_0":15917.6875,"59_0":16797.6875,"58_0":16797.6875,"57_0":16797.6875,"56_0":16797.6875,"55_0":16797.6875,"54_0":16797.6875,"53_0":16797.6875,"52_0":16797.6875},"buying_prices":{"60_0":"0","59_0":"0","58_0":"0","57_0":"0","56_0":"0","55_0":"0","54_0":"0","53_0":"0","52_0":"0"},"not_discounted_prices":{"60_0":"28941.25","59_0":"30541.25","58_0":"30541.25","57_0":"30541.25","56_0":"30541.25","55_0":"30541.25","54_0":"30541.25","53_0":"30541.25","52_0":"30541.25"},"variant_supplier_codes":{"60_0":"220H05141100B3MS","59_0":"220H05141100B3MM2","58_0":"220H05141100B3MM3","57_0":"220H05141100B3MM1","56_0":"220H05141100B3MY0","55_0":"220H05141100B3MC1","54_0":"220H05141100B3MC2","53_0":"220H05141100B3MR2","52_0":"220H05141100B3ML2"},"active_ids":{"one_60":["0"],"two_0":["60","59","58","57","56","55","54","53","52"],"one_59":["0"],"one_58":["0"],"one_57":["0"],"one_56":["0"],"one_55":["0"],"one_54":["0"],"one_53":["0"],"one_52":["0"]},"variant_informations":{"60_0":{"additional_information":""},"59_0":{"additional_information":""},"58_0":{"additional_information":""},"57_0":{"additional_information":""},"56_0":{"additional_information":""},"55_0":{"additional_information":""},"54_0":{"additional_information":""},"53_0":{"additional_information":""},"52_0":{"additional_information":""}},"variant_stocks":{"60_0":"100","59_0":"100","58_0":"100","57_0":"100","56_0":"100","55_0":"100","54_0":"100","53_0":"100","52_0":"100"}}

Options de axe

Entrée Standard

Bas à droite 50mm

Bas à gauche 50mm

Bas Milieu 50mm

Côté-Bas Droite Bas Gauche

Croix-gauche en bas en haut à droite

Croisé en haut à gauche en bas à droite

514 Dek Radyator Yan-45cm Giriş Sağ

514 Dek Radyator Yan-45cm Giriş Sol

Choisissez la quantité

Ajouter Au Panier

Livraison Prévue

20.01.2025 (60 Jours)

Ajouter Un Commentaire Alerte Prix Ajouter À Ma Liste De Courses

Caractéristiques Du Produit
Téléchargements
Les Options De Paiement
Commentaires (0)

INFORMATIONS TECHNINQUES
• Model = 20H

• Matériel =Acier

• Hauteur=514 mm

• Largeur=1000 mm

• Couleur / Revêtement=Anthracite

• Nombre de sections=7 Pièces

• Nombre total de profils=7+7 Pièces

• Dimensions des profils=70x11 mm

• Dimension du collecteur=38 mm

• Pression de service maximale=4,5 bar

• Profondeur du radiateur=58 mm

• Du mur au centre de l'entrée=64 mm

• Distance entre mur et surface devant =93 mm

• Dimension du filetage du radiateur=1/2"

• Volume d'eau=7,9 lt

• Weight=23,3 kg

• Poids brute=25,15 kg

• Dimension de carton=57x106x9,6 cm

TAPPING OPTIONS

• Entrée Standard=950 mm

• Entrée du bas au milieu=50mm

• Entrée du bas a droite=50mm

• Entrée du bas a gauche=50mm

• Côtés / Bas Droite-Gauche=1090mm

• Croix en haut à droite / en bas à gauche=1090mm

• Croix haut-gauche / bas-droite=1090mm

• Côté - droit=450mm

• Côté - gauche=450mm

Puissance thérmique

Kcal / h

• Puissance thérmique75/65-20°?t=50°C = 781 Kcal/h

• Puissance thérmique90/70-20° ?t=60°C=985Kcal/h

• Puissance thérmique55/45-20° ?t=30°C=400Kcal/h

Watts

• Puissance thérmique75/65-20°?t=50°C=908 Watt

• Puissance thérmique90/70-20°?t=60°C=1145 Watt

• Puissance thérmique55/45-20°?t=30°C=465 Watt

Btu

• Puissance thérmique75/65-20°?t=50°C=3099 Btu

• Puissance thérmique90/70-20°?t=60°C=3905 Btu

• Puissance thérmique55/45-20°?t=30°C=1587 Btu

Informations Sur La Garantie

:

10 Années

Livraison Info

:

60 Jours

Les Étiquettes Des Produits

panel radyatör , radyatör petek , radyatör fiyatları , radyatör modelleri , dizayn panel radyatör , dizayn panel radyatör fiyatları , dizayn radyatör , panel radyatör modelleri , radyatör ölçüleri , radyatörler , siyah radyatör , mat siyah radyatör

D'autres Couleurs

%45 réduit
AKS Seçenekleri

{"vat":20,"m_o_p":0,"variant_ids":{"60_0":"6177","59_0":"8922","58_0":"11667","57_0":"14412","56_0":"17157","55_0":"18417","54_0":"19677","53_0":"21171","52_0":"21507"},"variant_prices":{"60_0":12734.15,"59_0":13614.15,"58_0":13614.15,"57_0":13614.15,"56_0":13614.15,"55_0":13614.15,"54_0":13614.15,"53_0":13614.15,"52_0":13614.15},"variant_price_raws":{"60_0":12734.15,"59_0":13614.15,"58_0":13614.15,"57_0":13614.15,"56_0":13614.15,"55_0":13614.15,"54_0":13614.15,"53_0":13614.15,"52_0":13614.15},"buying_prices":{"60_0":"0","59_0":"0","58_0":"0","57_0":"0","56_0":"0","55_0":"0","54_0":"0","53_0":"0","52_0":"0"},"not_discounted_prices":{"60_0":"23153","59_0":"24753","58_0":"24753","57_0":"24753","56_0":"24753","55_0":"24753","54_0":"24753","53_0":"24753","52_0":"24753"},"variant_supplier_codes":{"60_0":"220H05141100B1PS","59_0":"220H05141100B1PM2","58_0":"220H05141100B1PM3","57_0":"220H05141100B1PM1","56_0":"220H05141100B1PY0","55_0":"220H05141100B1PC1","54_0":"220H05141100B1PC2","53_0":"220H05141100B1PR2","52_0":"220H05141100B1PL2"},"active_ids":{"one_60":["0"],"two_0":["60","59","58","57","56","55","54","53","52"],"one_59":["0"],"one_58":["0"],"one_57":["0"],"one_56":["0"],"one_55":["0"],"one_54":["0"],"one_53":["0"],"one_52":["0"]},"variant_informations":{"60_0":{"additional_information":""},"59_0":{"additional_information":""},"58_0":{"additional_information":""},"57_0":{"additional_information":""},"56_0":{"additional_information":""},"55_0":{"additional_information":""},"54_0":{"additional_information":""},"53_0":{"additional_information":""},"52_0":{"additional_information":""}},"variant_stocks":{"60_0":"100","59_0":"100","58_0":"100","57_0":"100","56_0":"100","55_0":"100","54_0":"100","53_0":"100","52_0":"100"}}

Type 20H Radiateur Décoratif 514x1100 Blanc ∆t50°C=859 Kcal/h |∆t60°C= 1083 Kcal/h | 7 Tuyeaux | Chauffe 6-17 m2

27.783,60 TL

15.280,98 TL
%45 réduit
AKS Seçenekleri

{"vat":20,"m_o_p":0,"variant_ids":{"60_0":"6178","59_0":"8923","58_0":"11668","57_0":"14413","56_0":"17158","55_0":"18418","54_0":"19678","53_0":"21172","52_0":"21508"},"variant_prices":{"60_0":15917.6875,"59_0":16797.6875,"58_0":16797.6875,"57_0":16797.6875,"56_0":16797.6875,"55_0":16797.6875,"54_0":16797.6875,"53_0":16797.6875,"52_0":16797.6875},"variant_price_raws":{"60_0":15917.6875,"59_0":16797.6875,"58_0":16797.6875,"57_0":16797.6875,"56_0":16797.6875,"55_0":16797.6875,"54_0":16797.6875,"53_0":16797.6875,"52_0":16797.6875},"buying_prices":{"60_0":"0","59_0":"0","58_0":"0","57_0":"0","56_0":"0","55_0":"0","54_0":"0","53_0":"0","52_0":"0"},"not_discounted_prices":{"60_0":"28941.25","59_0":"30541.25","58_0":"30541.25","57_0":"30541.25","56_0":"30541.25","55_0":"30541.25","54_0":"30541.25","53_0":"30541.25","52_0":"30541.25"},"variant_supplier_codes":{"60_0":"220H05141100B2TS","59_0":"220H05141100B2TM2","58_0":"220H05141100B2TM3","57_0":"220H05141100B2TM1","56_0":"220H05141100B2TY0","55_0":"220H05141100B2TC1","54_0":"220H05141100B2TC2","53_0":"220H05141100B2TR2","52_0":"220H05141100B2TL2"},"active_ids":{"one_60":["0"],"two_0":["60","59","58","57","56","55","54","53","52"],"one_59":["0"],"one_58":["0"],"one_57":["0"],"one_56":["0"],"one_55":["0"],"one_54":["0"],"one_53":["0"],"one_52":["0"]},"variant_informations":{"60_0":{"additional_information":""},"59_0":{"additional_information":""},"58_0":{"additional_information":""},"57_0":{"additional_information":""},"56_0":{"additional_information":""},"55_0":{"additional_information":""},"54_0":{"additional_information":""},"53_0":{"additional_information":""},"52_0":{"additional_information":""}},"variant_stocks":{"60_0":"100","59_0":"100","58_0":"100","57_0":"100","56_0":"100","55_0":"100","54_0":"100","53_0":"100","52_0":"100"}}

Type 20H Radiateur Décoratif 514x1100 Anthracite ∆t50°C=859 Kcal/h |∆t60°C= 1083 Kcal/h | 7 Tuyeaux | Chauffe 6-17 m2

34.729,50 TL

19.101,23 TL
%45 réduit
AKS Seçenekleri

{"vat":20,"m_o_p":0,"variant_ids":{"60_0":"6180","59_0":"8925","58_0":"11670","57_0":"14415","56_0":"17160","55_0":"18420","54_0":"19680","53_0":"21174","52_0":"21510"},"variant_prices":{"60_0":15917.6875,"59_0":16797.6875,"58_0":16797.6875,"57_0":16797.6875,"56_0":16797.6875,"55_0":16797.6875,"54_0":16797.6875,"53_0":16797.6875,"52_0":16797.6875},"variant_price_raws":{"60_0":15917.6875,"59_0":16797.6875,"58_0":16797.6875,"57_0":16797.6875,"56_0":16797.6875,"55_0":16797.6875,"54_0":16797.6875,"53_0":16797.6875,"52_0":16797.6875},"buying_prices":{"60_0":"0","59_0":"0","58_0":"0","57_0":"0","56_0":"0","55_0":"0","54_0":"0","53_0":"0","52_0":"0"},"not_discounted_prices":{"60_0":"28941.25","59_0":"30541.25","58_0":"30541.25","57_0":"30541.25","56_0":"30541.25","55_0":"30541.25","54_0":"30541.25","53_0":"30541.25","52_0":"30541.25"},"variant_supplier_codes":{"60_0":"220H05141100B3MS","59_0":"220H05141100B3MM2","58_0":"220H05141100B3MM3","57_0":"220H05141100B3MM1","56_0":"220H05141100B3MY0","55_0":"220H05141100B3MC1","54_0":"220H05141100B3MC2","53_0":"220H05141100B3MR2","52_0":"220H05141100B3ML2"},"active_ids":{"one_60":["0"],"two_0":["60","59","58","57","56","55","54","53","52"],"one_59":["0"],"one_58":["0"],"one_57":["0"],"one_56":["0"],"one_55":["0"],"one_54":["0"],"one_53":["0"],"one_52":["0"]},"variant_informations":{"60_0":{"additional_information":""},"59_0":{"additional_information":""},"58_0":{"additional_information":""},"57_0":{"additional_information":""},"56_0":{"additional_information":""},"55_0":{"additional_information":""},"54_0":{"additional_information":""},"53_0":{"additional_information":""},"52_0":{"additional_information":""}},"variant_stocks":{"60_0":"100","59_0":"100","58_0":"100","57_0":"100","56_0":"100","55_0":"100","54_0":"100","53_0":"100","52_0":"100"}}

Type 20H Radiateur Décoratif 514x1100 Noir mat ∆t50°C=859 Kcal/h |∆t60°C= 1083 Kcal/h | 7 Tuyeaux | Chauffe 6-17 m2

34.729,50 TL

19.101,23 TL
%45 réduit
AKS Seçenekleri

{"vat":20,"m_o_p":0,"variant_ids":{"60_0":"6179","59_0":"8924","58_0":"11669","57_0":"14414","56_0":"17159","55_0":"18419","54_0":"19679","53_0":"21173","52_0":"21509"},"variant_prices":{"60_0":17694.05,"59_0":18574.05,"58_0":18574.05,"57_0":18574.05,"56_0":18574.05,"55_0":18574.05,"54_0":18574.05,"53_0":18574.05,"52_0":18574.05},"variant_price_raws":{"60_0":17694.05,"59_0":18574.05,"58_0":18574.05,"57_0":18574.05,"56_0":18574.05,"55_0":18574.05,"54_0":18574.05,"53_0":18574.05,"52_0":18574.05},"buying_prices":{"60_0":"0","59_0":"0","58_0":"0","57_0":"0","56_0":"0","55_0":"0","54_0":"0","53_0":"0","52_0":"0"},"not_discounted_prices":{"60_0":"32171","59_0":"33771","58_0":"33771","57_0":"33771","56_0":"33771","55_0":"33771","54_0":"33771","53_0":"33771","52_0":"33771"},"variant_supplier_codes":{"60_0":"220H05141100K6FS","59_0":"220H05141100K6FM2","58_0":"220H05141100K6FM3","57_0":"220H05141100K6FM1","56_0":"220H05141100K6FY0","55_0":"220H05141100K6FC1","54_0":"220H05141100K6FC2","53_0":"220H05141100K6FR2","52_0":"220H05141100K6FL2"},"active_ids":{"one_60":["0"],"two_0":["60","59","58","57","56","55","54","53","52"],"one_59":["0"],"one_58":["0"],"one_57":["0"],"one_56":["0"],"one_55":["0"],"one_54":["0"],"one_53":["0"],"one_52":["0"]},"variant_informations":{"60_0":{"additional_information":""},"59_0":{"additional_information":""},"58_0":{"additional_information":""},"57_0":{"additional_information":""},"56_0":{"additional_information":""},"55_0":{"additional_information":""},"54_0":{"additional_information":""},"53_0":{"additional_information":""},"52_0":{"additional_information":""}},"variant_stocks":{"60_0":"100","59_0":"100","58_0":"100","57_0":"100","56_0":"100","55_0":"100","54_0":"100","53_0":"100","52_0":"100"}}

Type 20H Radiateur Décoratif 514x1100 Effet bois ∆t50°C=859 Kcal/h |∆t60°C= 1083 Kcal/h | 7 Tuyeaux | Chauffe 6-17 m2

38.605,20 TL

21.232,86 TL
