%45 réduit

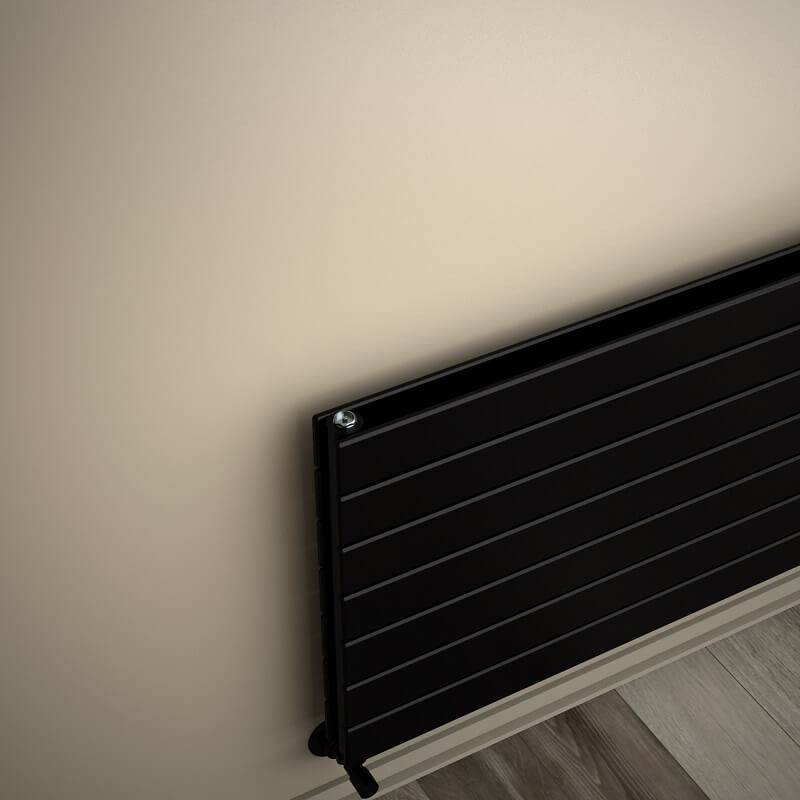

Type 20H Radiateur Décoratif 514x1900 Noir mat

Name: Type 20H Radiateur Décoratif 514x1900 Noir mat
SKU: 220H05141900B3MS
Price: 30015.98 TRY
Availability: InStock

Code De Produit : 220H05141900B3MS

Garantie : 10 Année

TAXES INCLUSES

Prix

54.574,50 TL

Prix réduit

30.015,98 TL

10 ans
Garantie

2000€ +
Livraison gratuite

{"vat":20,"m_o_p":0,"variant_ids":{"60_0":"6212","59_0":"8957","58_0":"11702","57_0":"14447","56_0":"17192","55_0":"18452","54_0":"19712","53_0":"21206","52_0":"21542"},"variant_prices":{"60_0":25013.3125,"59_0":25893.3125,"58_0":25893.3125,"57_0":25893.3125,"56_0":25893.3125,"55_0":25893.3125,"54_0":25893.3125,"53_0":25893.3125,"52_0":25893.3125},"variant_price_raws":{"60_0":25013.3125,"59_0":25893.3125,"58_0":25893.3125,"57_0":25893.3125,"56_0":25893.3125,"55_0":25893.3125,"54_0":25893.3125,"53_0":25893.3125,"52_0":25893.3125},"buying_prices":{"60_0":"0","59_0":"0","58_0":"0","57_0":"0","56_0":"0","55_0":"0","54_0":"0","53_0":"0","52_0":"0"},"not_discounted_prices":{"60_0":"45478.75","59_0":"47078.75","58_0":"47078.75","57_0":"47078.75","56_0":"47078.75","55_0":"47078.75","54_0":"47078.75","53_0":"47078.75","52_0":"47078.75"},"variant_supplier_codes":{"60_0":"220H05141900B3MS","59_0":"220H05141900B3MM2","58_0":"220H05141900B3MM3","57_0":"220H05141900B3MM1","56_0":"220H05141900B3MY0","55_0":"220H05141900B3MC1","54_0":"220H05141900B3MC2","53_0":"220H05141900B3MR2","52_0":"220H05141900B3ML2"},"active_ids":{"one_60":["0"],"two_0":["60","59","58","57","56","55","54","53","52"],"one_59":["0"],"one_58":["0"],"one_57":["0"],"one_56":["0"],"one_55":["0"],"one_54":["0"],"one_53":["0"],"one_52":["0"]},"variant_informations":{"60_0":{"additional_information":""},"59_0":{"additional_information":""},"58_0":{"additional_information":""},"57_0":{"additional_information":""},"56_0":{"additional_information":""},"55_0":{"additional_information":""},"54_0":{"additional_information":""},"53_0":{"additional_information":""},"52_0":{"additional_information":""}},"variant_stocks":{"60_0":"100","59_0":"100","58_0":"100","57_0":"100","56_0":"100","55_0":"100","54_0":"100","53_0":"100","52_0":"100"}}

Options de axe

Entrée Standard

Bas à droite 50mm

Bas à gauche 50mm

Bas Milieu 50mm

Côté-Bas Droite Bas Gauche

Croix-gauche en bas en haut à droite

Croisé en haut à gauche en bas à droite

514 Dek Radyator Yan-45cm Giriş Sağ

514 Dek Radyator Yan-45cm Giriş Sol

Choisissez la quantité

Ajouter Au Panier

Livraison Prévue

20.01.2025 (60 Jours)

Ajouter Un Commentaire Alerte Prix Ajouter À Ma Liste De Courses

Caractéristiques Du Produit
Téléchargements
Les Options De Paiement
Commentaires (0)

INFORMATIONS TECHNINQUES
• Model = 20H

• Matériel =Acier

• Hauteur=514 mm

• Largeur=1800 mm

• Couleur / Revêtement=Anthracite

• Nombre de sections=7 Pièces

• Nombre total de profils=7+7 Pièces

• Dimensions des profils=70x11 mm

• Dimension du collecteur=38 mm

• Pression de service maximale=4,5 bar

• Profondeur du radiateur=58 mm

• Du mur au centre de l'entrée=64 mm

• Distance entre mur et surface devant =93 mm

• Dimension du filetage du radiateur=1/2"

• Volume d'eau=13,5 lt

• Weight=40,8 kg

• Poids brute=43,88 kg

• Dimension de carton=57x186x9,6 cm

TAPPING OPTIONS

• Entrée Standard=1750 mm

• Entrée du bas au milieu=50mm

• Entrée du bas a droite=50mm

• Entrée du bas a gauche=50mm

• Côtés / Bas Droite-Gauche=1890mm

• Croix en haut à droite / en bas à gauche=1890mm

• Croix haut-gauche / bas-droite=1890mm

• Côté - droit=450mm

• Côté - gauche=450mm

Puissance thérmique

Kcal / h

• Puissance thérmique75/65-20°?t=50°C = 1406 Kcal/h

• Puissance thérmique90/70-20° ?t=60°C=1772Kcal/h

• Puissance thérmique55/45-20° ?t=30°C=720Kcal/h

Watts

• Puissance thérmique75/65-20°?t=50°C=1634 Watt

• Puissance thérmique90/70-20°?t=60°C=2059 Watt

• Puissance thérmique55/45-20°?t=30°C=837 Watt

Btu

• Puissance thérmique75/65-20°?t=50°C=5576 Btu

• Puissance thérmique90/70-20°?t=60°C=7026 Btu

• Puissance thérmique55/45-20°?t=30°C=2855 Btu

Informations Sur La Garantie

:

10 Années

Livraison Info

:

60 Jours

Les Étiquettes Des Produits

panel radyatör , radyatör petek , radyatör fiyatları , radyatör modelleri , dizayn panel radyatör , dizayn panel radyatör fiyatları , dizayn radyatör , panel radyatör modelleri , radyatör ölçüleri , radyatörler , siyah radyatör , mat siyah radyatör

D'autres Couleurs

%45 réduit
AKS Seçenekleri

{"vat":20,"m_o_p":0,"variant_ids":{"60_0":"6209","59_0":"8954","58_0":"11699","57_0":"14444","56_0":"17189","55_0":"18449","54_0":"19709","53_0":"21203","52_0":"21539"},"variant_prices":{"60_0":20010.65,"59_0":20890.65,"58_0":20890.65,"57_0":20890.65,"56_0":20890.65,"55_0":20890.65,"54_0":20890.65,"53_0":20890.65,"52_0":20890.65},"variant_price_raws":{"60_0":20010.65,"59_0":20890.65,"58_0":20890.65,"57_0":20890.65,"56_0":20890.65,"55_0":20890.65,"54_0":20890.65,"53_0":20890.65,"52_0":20890.65},"buying_prices":{"60_0":"0","59_0":"0","58_0":"0","57_0":"0","56_0":"0","55_0":"0","54_0":"0","53_0":"0","52_0":"0"},"not_discounted_prices":{"60_0":"36383","59_0":"37983","58_0":"37983","57_0":"37983","56_0":"37983","55_0":"37983","54_0":"37983","53_0":"37983","52_0":"37983"},"variant_supplier_codes":{"60_0":"220H05141900B1PS","59_0":"220H05141900B1PM2","58_0":"220H05141900B1PM3","57_0":"220H05141900B1PM1","56_0":"220H05141900B1PY0","55_0":"220H05141900B1PC1","54_0":"220H05141900B1PC2","53_0":"220H05141900B1PR2","52_0":"220H05141900B1PL2"},"active_ids":{"one_60":["0"],"two_0":["60","59","58","57","56","55","54","53","52"],"one_59":["0"],"one_58":["0"],"one_57":["0"],"one_56":["0"],"one_55":["0"],"one_54":["0"],"one_53":["0"],"one_52":["0"]},"variant_informations":{"60_0":{"additional_information":""},"59_0":{"additional_information":""},"58_0":{"additional_information":""},"57_0":{"additional_information":""},"56_0":{"additional_information":""},"55_0":{"additional_information":""},"54_0":{"additional_information":""},"53_0":{"additional_information":""},"52_0":{"additional_information":""}},"variant_stocks":{"60_0":"100","59_0":"100","58_0":"100","57_0":"100","56_0":"100","55_0":"100","54_0":"100","53_0":"100","52_0":"100"}}

Type 20H Radiateur Décoratif 514x1900 Blanc ∆t50°C=1484 Kcal/h |∆t60°C= 1871 Kcal/h | 7 Tuyeaux | Chauffe 10-29 m2

43.659,60 TL

24.012,78 TL
%45 réduit
AKS Seçenekleri

{"vat":20,"m_o_p":0,"variant_ids":{"60_0":"6210","59_0":"8955","58_0":"11700","57_0":"14445","56_0":"17190","55_0":"18450","54_0":"19710","53_0":"21204","52_0":"21540"},"variant_prices":{"60_0":25013.3125,"59_0":25893.3125,"58_0":25893.3125,"57_0":25893.3125,"56_0":25893.3125,"55_0":25893.3125,"54_0":25893.3125,"53_0":25893.3125,"52_0":25893.3125},"variant_price_raws":{"60_0":25013.3125,"59_0":25893.3125,"58_0":25893.3125,"57_0":25893.3125,"56_0":25893.3125,"55_0":25893.3125,"54_0":25893.3125,"53_0":25893.3125,"52_0":25893.3125},"buying_prices":{"60_0":"0","59_0":"0","58_0":"0","57_0":"0","56_0":"0","55_0":"0","54_0":"0","53_0":"0","52_0":"0"},"not_discounted_prices":{"60_0":"45478.75","59_0":"47078.75","58_0":"47078.75","57_0":"47078.75","56_0":"47078.75","55_0":"47078.75","54_0":"47078.75","53_0":"47078.75","52_0":"47078.75"},"variant_supplier_codes":{"60_0":"220H05141900B2TS","59_0":"220H05141900B2TM2","58_0":"220H05141900B2TM3","57_0":"220H05141900B2TM1","56_0":"220H05141900B2TY0","55_0":"220H05141900B2TC1","54_0":"220H05141900B2TC2","53_0":"220H05141900B2TR2","52_0":"220H05141900B2TL2"},"active_ids":{"one_60":["0"],"two_0":["60","59","58","57","56","55","54","53","52"],"one_59":["0"],"one_58":["0"],"one_57":["0"],"one_56":["0"],"one_55":["0"],"one_54":["0"],"one_53":["0"],"one_52":["0"]},"variant_informations":{"60_0":{"additional_information":""},"59_0":{"additional_information":""},"58_0":{"additional_information":""},"57_0":{"additional_information":""},"56_0":{"additional_information":""},"55_0":{"additional_information":""},"54_0":{"additional_information":""},"53_0":{"additional_information":""},"52_0":{"additional_information":""}},"variant_stocks":{"60_0":"100","59_0":"100","58_0":"100","57_0":"100","56_0":"100","55_0":"100","54_0":"100","53_0":"100","52_0":"100"}}

Type 20H Radiateur Décoratif 514x1900 Anthracite ∆t50°C=1484 Kcal/h |∆t60°C= 1871 Kcal/h | 7 Tuyeaux | Chauffe 10-29 m2

54.574,50 TL

30.015,98 TL
%45 réduit
AKS Seçenekleri

{"vat":20,"m_o_p":0,"variant_ids":{"60_0":"6212","59_0":"8957","58_0":"11702","57_0":"14447","56_0":"17192","55_0":"18452","54_0":"19712","53_0":"21206","52_0":"21542"},"variant_prices":{"60_0":25013.3125,"59_0":25893.3125,"58_0":25893.3125,"57_0":25893.3125,"56_0":25893.3125,"55_0":25893.3125,"54_0":25893.3125,"53_0":25893.3125,"52_0":25893.3125},"variant_price_raws":{"60_0":25013.3125,"59_0":25893.3125,"58_0":25893.3125,"57_0":25893.3125,"56_0":25893.3125,"55_0":25893.3125,"54_0":25893.3125,"53_0":25893.3125,"52_0":25893.3125},"buying_prices":{"60_0":"0","59_0":"0","58_0":"0","57_0":"0","56_0":"0","55_0":"0","54_0":"0","53_0":"0","52_0":"0"},"not_discounted_prices":{"60_0":"45478.75","59_0":"47078.75","58_0":"47078.75","57_0":"47078.75","56_0":"47078.75","55_0":"47078.75","54_0":"47078.75","53_0":"47078.75","52_0":"47078.75"},"variant_supplier_codes":{"60_0":"220H05141900B3MS","59_0":"220H05141900B3MM2","58_0":"220H05141900B3MM3","57_0":"220H05141900B3MM1","56_0":"220H05141900B3MY0","55_0":"220H05141900B3MC1","54_0":"220H05141900B3MC2","53_0":"220H05141900B3MR2","52_0":"220H05141900B3ML2"},"active_ids":{"one_60":["0"],"two_0":["60","59","58","57","56","55","54","53","52"],"one_59":["0"],"one_58":["0"],"one_57":["0"],"one_56":["0"],"one_55":["0"],"one_54":["0"],"one_53":["0"],"one_52":["0"]},"variant_informations":{"60_0":{"additional_information":""},"59_0":{"additional_information":""},"58_0":{"additional_information":""},"57_0":{"additional_information":""},"56_0":{"additional_information":""},"55_0":{"additional_information":""},"54_0":{"additional_information":""},"53_0":{"additional_information":""},"52_0":{"additional_information":""}},"variant_stocks":{"60_0":"100","59_0":"100","58_0":"100","57_0":"100","56_0":"100","55_0":"100","54_0":"100","53_0":"100","52_0":"100"}}

Type 20H Radiateur Décoratif 514x1900 Noir mat ∆t50°C=1484 Kcal/h |∆t60°C= 1871 Kcal/h | 7 Tuyeaux | Chauffe 10-29 m2

54.574,50 TL

30.015,98 TL
%45 réduit
AKS Seçenekleri

{"vat":20,"m_o_p":0,"variant_ids":{"60_0":"6211","59_0":"8956","58_0":"11701","57_0":"14446","56_0":"17191","55_0":"18451","54_0":"19711","53_0":"21205","52_0":"21541"},"variant_prices":{"60_0":26765.2,"59_0":27645.2,"58_0":27645.2,"57_0":27645.2,"56_0":27645.2,"55_0":27645.2,"54_0":27645.2,"53_0":27645.2,"52_0":27645.2},"variant_price_raws":{"60_0":26765.2,"59_0":27645.2,"58_0":27645.2,"57_0":27645.2,"56_0":27645.2,"55_0":27645.2,"54_0":27645.2,"53_0":27645.2,"52_0":27645.2},"buying_prices":{"60_0":"0","59_0":"0","58_0":"0","57_0":"0","56_0":"0","55_0":"0","54_0":"0","53_0":"0","52_0":"0"},"not_discounted_prices":{"60_0":"48664","59_0":"50264","58_0":"50264","57_0":"50264","56_0":"50264","55_0":"50264","54_0":"50264","53_0":"50264","52_0":"50264"},"variant_supplier_codes":{"60_0":"220H05141900K6FS","59_0":"220H05141900K6FM2","58_0":"220H05141900K6FM3","57_0":"220H05141900K6FM1","56_0":"220H05141900K6FY0","55_0":"220H05141900K6FC1","54_0":"220H05141900K6FC2","53_0":"220H05141900K6FR2","52_0":"220H05141900K6FL2"},"active_ids":{"one_60":["0"],"two_0":["60","59","58","57","56","55","54","53","52"],"one_59":["0"],"one_58":["0"],"one_57":["0"],"one_56":["0"],"one_55":["0"],"one_54":["0"],"one_53":["0"],"one_52":["0"]},"variant_informations":{"60_0":{"additional_information":""},"59_0":{"additional_information":""},"58_0":{"additional_information":""},"57_0":{"additional_information":""},"56_0":{"additional_information":""},"55_0":{"additional_information":""},"54_0":{"additional_information":""},"53_0":{"additional_information":""},"52_0":{"additional_information":""}},"variant_stocks":{"60_0":"100","59_0":"100","58_0":"100","57_0":"100","56_0":"100","55_0":"100","54_0":"100","53_0":"100","52_0":"100"}}

Type 20H Radiateur Décoratif 514x1900 Effet bois ∆t50°C=1484 Kcal/h |∆t60°C= 1871 Kcal/h | 7 Tuyeaux | Chauffe 10-29 m2

58.396,80 TL

32.118,24 TL
