%45 réduit

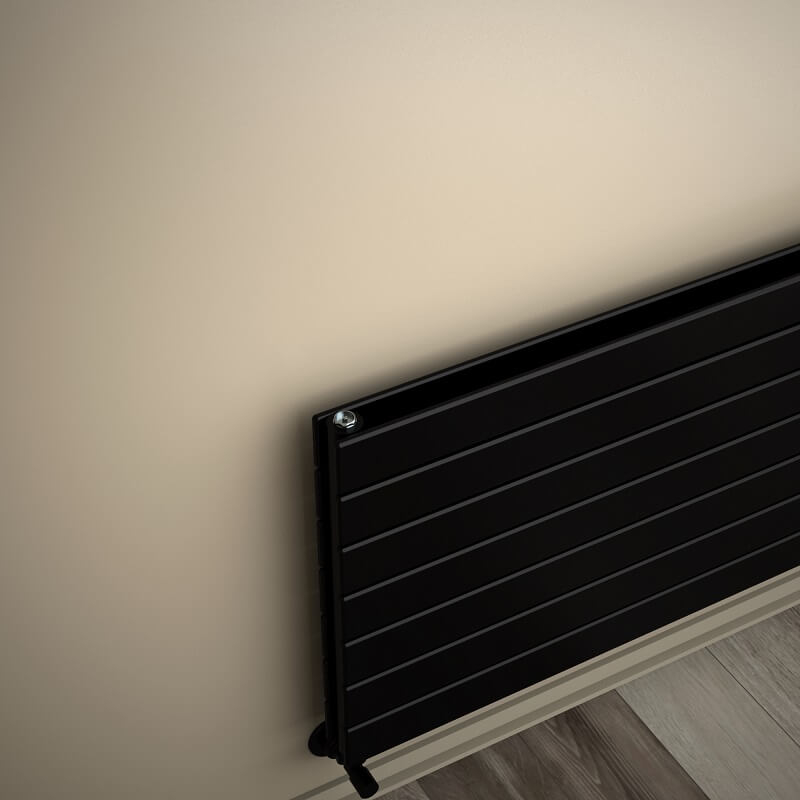

Type 20H Radiateur Décoratif 514x2400 Noir mat

Name: Type 20H Radiateur Décoratif 514x2400 Noir mat
SKU: 220H05142400B3MS
Price: 36780.98 TRY
Availability: InStock

Code De Produit : 220H05142400B3MS

Garantie : 10 Année

TAXES INCLUSES

Prix

66.874,50 TL

Prix réduit

36.780,98 TL

10 ans
Garantie

2000€ +
Livraison gratuite

{"vat":20,"m_o_p":0,"variant_ids":{"60_0":"6232","59_0":"8977","58_0":"11722","57_0":"14467","56_0":"17212","55_0":"18472","54_0":"19732","53_0":"21226","52_0":"21562"},"variant_prices":{"60_0":30650.8125,"59_0":31530.8125,"58_0":31530.8125,"57_0":31530.8125,"56_0":31530.8125,"55_0":31530.8125,"54_0":31530.8125,"53_0":31530.8125,"52_0":31530.8125},"variant_price_raws":{"60_0":30650.8125,"59_0":31530.8125,"58_0":31530.8125,"57_0":31530.8125,"56_0":31530.8125,"55_0":31530.8125,"54_0":31530.8125,"53_0":31530.8125,"52_0":31530.8125},"buying_prices":{"60_0":"0","59_0":"0","58_0":"0","57_0":"0","56_0":"0","55_0":"0","54_0":"0","53_0":"0","52_0":"0"},"not_discounted_prices":{"60_0":"55728.75","59_0":"57328.75","58_0":"57328.75","57_0":"57328.75","56_0":"57328.75","55_0":"57328.75","54_0":"57328.75","53_0":"57328.75","52_0":"57328.75"},"variant_supplier_codes":{"60_0":"220H05142400B3MS","59_0":"220H05142400B3MM2","58_0":"220H05142400B3MM3","57_0":"220H05142400B3MM1","56_0":"220H05142400B3MY0","55_0":"220H05142400B3MC1","54_0":"220H05142400B3MC2","53_0":"220H05142400B3MR2","52_0":"220H05142400B3ML2"},"active_ids":{"one_60":["0"],"two_0":["60","59","58","57","56","55","54","53","52"],"one_59":["0"],"one_58":["0"],"one_57":["0"],"one_56":["0"],"one_55":["0"],"one_54":["0"],"one_53":["0"],"one_52":["0"]},"variant_informations":{"60_0":{"additional_information":""},"59_0":{"additional_information":""},"58_0":{"additional_information":""},"57_0":{"additional_information":""},"56_0":{"additional_information":""},"55_0":{"additional_information":""},"54_0":{"additional_information":""},"53_0":{"additional_information":""},"52_0":{"additional_information":""}},"variant_stocks":{"60_0":"100","59_0":"100","58_0":"100","57_0":"100","56_0":"100","55_0":"100","54_0":"100","53_0":"100","52_0":"100"}}

Options de axe

Entrée Standard

Bas à droite 50mm

Bas à gauche 50mm

Bas Milieu 50mm

Côté-Bas Droite Bas Gauche

Croix-gauche en bas en haut à droite

Croisé en haut à gauche en bas à droite

514 Dek Radyator Yan-45cm Giriş Sağ

514 Dek Radyator Yan-45cm Giriş Sol

Choisissez la quantité

Ajouter Au Panier

Livraison Prévue

23.01.2025 (60 Jours)

Ajouter Un Commentaire Alerte Prix Ajouter À Ma Liste De Courses

Caractéristiques Du Produit
Téléchargements
Les Options De Paiement
Commentaires (0)

INFORMATIONS TECHNINQUES
• Model = 20H

• Matériel =Acier

• Hauteur=514 mm

• Largeur=2300 mm

• Couleur / Revêtement=Anthracite

• Nombre de sections=7 Pièces

• Nombre total de profils=7+7 Pièces

• Dimensions des profils=70x11 mm

• Dimension du collecteur=38 mm

• Pression de service maximale=4,5 bar

• Profondeur du radiateur=58 mm

• Du mur au centre de l'entrée=64 mm

• Distance entre mur et surface devant =93 mm

• Dimension du filetage du radiateur=1/2"

• Volume d'eau=17 lt

• Weight=51,7 kg

• Poids brute=55,55 kg

• Dimension de carton=57x236x9,6 cm

TAPPING OPTIONS

• Entrée Standard=2250 mm

• Entrée du bas au milieu=50mm

• Entrée du bas a droite=50mm

• Entrée du bas a gauche=50mm

• Côtés / Bas Droite-Gauche=2390mm

• Croix en haut à droite / en bas à gauche=2390mm

• Croix haut-gauche / bas-droite=2390mm

• Côté - droit=450mm

• Côté - gauche=450mm

Puissance thérmique

Kcal / h

• Puissance thérmique75/65-20°?t=50°C = 1796 Kcal/h

• Puissance thérmique90/70-20° ?t=60°C=2263Kcal/h

• Puissance thérmique55/45-20° ?t=30°C=920Kcal/h

Watts

• Puissance thérmique75/65-20°?t=50°C=2088 Watt

• Puissance thérmique90/70-20°?t=60°C=2631 Watt

• Puissance thérmique55/45-20°?t=30°C=1070 Watt

Btu

• Puissance thérmique75/65-20°?t=50°C=7125 Btu

• Puissance thérmique90/70-20°?t=60°C=8978 Btu

• Puissance thérmique55/45-20°?t=30°C=3648 Btu

Informations Sur La Garantie

:

10 Années

Livraison Info

:

60 Jours

Les Étiquettes Des Produits

panel radyatör , radyatör petek , radyatör fiyatları , radyatör modelleri , dizayn panel radyatör , dizayn panel radyatör fiyatları , dizayn radyatör , panel radyatör modelleri , radyatör ölçüleri , radyatörler , siyah radyatör , mat siyah radyatör

D'autres Couleurs

%45 réduit
AKS Seçenekleri

{"vat":20,"m_o_p":0,"variant_ids":{"60_0":"6229","59_0":"8974","58_0":"11719","57_0":"14464","56_0":"17209","55_0":"18469","54_0":"19729","53_0":"21223","52_0":"21559"},"variant_prices":{"60_0":24520.65,"59_0":25400.65,"58_0":25400.65,"57_0":25400.65,"56_0":25400.65,"55_0":25400.65,"54_0":25400.65,"53_0":25400.65,"52_0":25400.65},"variant_price_raws":{"60_0":24520.65,"59_0":25400.65,"58_0":25400.65,"57_0":25400.65,"56_0":25400.65,"55_0":25400.65,"54_0":25400.65,"53_0":25400.65,"52_0":25400.65},"buying_prices":{"60_0":"0","59_0":"0","58_0":"0","57_0":"0","56_0":"0","55_0":"0","54_0":"0","53_0":"0","52_0":"0"},"not_discounted_prices":{"60_0":"44583","59_0":"46183","58_0":"46183","57_0":"46183","56_0":"46183","55_0":"46183","54_0":"46183","53_0":"46183","52_0":"46183"},"variant_supplier_codes":{"60_0":"220H05142400B1PS","59_0":"220H05142400B1PM2","58_0":"220H05142400B1PM3","57_0":"220H05142400B1PM1","56_0":"220H05142400B1PY0","55_0":"220H05142400B1PC1","54_0":"220H05142400B1PC2","53_0":"220H05142400B1PR2","52_0":"220H05142400B1PL2"},"active_ids":{"one_60":["0"],"two_0":["60","59","58","57","56","55","54","53","52"],"one_59":["0"],"one_58":["0"],"one_57":["0"],"one_56":["0"],"one_55":["0"],"one_54":["0"],"one_53":["0"],"one_52":["0"]},"variant_informations":{"60_0":{"additional_information":""},"59_0":{"additional_information":""},"58_0":{"additional_information":""},"57_0":{"additional_information":""},"56_0":{"additional_information":""},"55_0":{"additional_information":""},"54_0":{"additional_information":""},"53_0":{"additional_information":""},"52_0":{"additional_information":""}},"variant_stocks":{"60_0":"100","59_0":"100","58_0":"100","57_0":"100","56_0":"100","55_0":"100","54_0":"100","53_0":"100","52_0":"100"}}

Type 20H Radiateur Décoratif 514x2400 Blanc ∆t50°C=1874 Kcal/h |∆t60°C= 2362 Kcal/h | 7 Tuyeaux | Chauffe 12-36 m2

53.499,60 TL

29.424,78 TL
%45 réduit
AKS Seçenekleri

{"vat":20,"m_o_p":0,"variant_ids":{"60_0":"6230","59_0":"8975","58_0":"11720","57_0":"14465","56_0":"17210","55_0":"18470","54_0":"19730","53_0":"21224","52_0":"21560"},"variant_prices":{"60_0":30650.8125,"59_0":31530.8125,"58_0":31530.8125,"57_0":31530.8125,"56_0":31530.8125,"55_0":31530.8125,"54_0":31530.8125,"53_0":31530.8125,"52_0":31530.8125},"variant_price_raws":{"60_0":30650.8125,"59_0":31530.8125,"58_0":31530.8125,"57_0":31530.8125,"56_0":31530.8125,"55_0":31530.8125,"54_0":31530.8125,"53_0":31530.8125,"52_0":31530.8125},"buying_prices":{"60_0":"0","59_0":"0","58_0":"0","57_0":"0","56_0":"0","55_0":"0","54_0":"0","53_0":"0","52_0":"0"},"not_discounted_prices":{"60_0":"55728.75","59_0":"57328.75","58_0":"57328.75","57_0":"57328.75","56_0":"57328.75","55_0":"57328.75","54_0":"57328.75","53_0":"57328.75","52_0":"57328.75"},"variant_supplier_codes":{"60_0":"220H05142400B2TS","59_0":"220H05142400B2TM2","58_0":"220H05142400B2TM3","57_0":"220H05142400B2TM1","56_0":"220H05142400B2TY0","55_0":"220H05142400B2TC1","54_0":"220H05142400B2TC2","53_0":"220H05142400B2TR2","52_0":"220H05142400B2TL2"},"active_ids":{"one_60":["0"],"two_0":["60","59","58","57","56","55","54","53","52"],"one_59":["0"],"one_58":["0"],"one_57":["0"],"one_56":["0"],"one_55":["0"],"one_54":["0"],"one_53":["0"],"one_52":["0"]},"variant_informations":{"60_0":{"additional_information":""},"59_0":{"additional_information":""},"58_0":{"additional_information":""},"57_0":{"additional_information":""},"56_0":{"additional_information":""},"55_0":{"additional_information":""},"54_0":{"additional_information":""},"53_0":{"additional_information":""},"52_0":{"additional_information":""}},"variant_stocks":{"60_0":"99","59_0":"100","58_0":"100","57_0":"100","56_0":"99","55_0":"100","54_0":"100","53_0":"100","52_0":"100"}}

Type 20H Radiateur Décoratif 514x2400 Anthracite ∆t50°C=1874 Kcal/h |∆t60°C= 2362 Kcal/h | 7 Tuyeaux | Chauffe 12-36 m2

66.874,50 TL

36.780,98 TL
%45 réduit
AKS Seçenekleri

{"vat":20,"m_o_p":0,"variant_ids":{"60_0":"6232","59_0":"8977","58_0":"11722","57_0":"14467","56_0":"17212","55_0":"18472","54_0":"19732","53_0":"21226","52_0":"21562"},"variant_prices":{"60_0":30650.8125,"59_0":31530.8125,"58_0":31530.8125,"57_0":31530.8125,"56_0":31530.8125,"55_0":31530.8125,"54_0":31530.8125,"53_0":31530.8125,"52_0":31530.8125},"variant_price_raws":{"60_0":30650.8125,"59_0":31530.8125,"58_0":31530.8125,"57_0":31530.8125,"56_0":31530.8125,"55_0":31530.8125,"54_0":31530.8125,"53_0":31530.8125,"52_0":31530.8125},"buying_prices":{"60_0":"0","59_0":"0","58_0":"0","57_0":"0","56_0":"0","55_0":"0","54_0":"0","53_0":"0","52_0":"0"},"not_discounted_prices":{"60_0":"55728.75","59_0":"57328.75","58_0":"57328.75","57_0":"57328.75","56_0":"57328.75","55_0":"57328.75","54_0":"57328.75","53_0":"57328.75","52_0":"57328.75"},"variant_supplier_codes":{"60_0":"220H05142400B3MS","59_0":"220H05142400B3MM2","58_0":"220H05142400B3MM3","57_0":"220H05142400B3MM1","56_0":"220H05142400B3MY0","55_0":"220H05142400B3MC1","54_0":"220H05142400B3MC2","53_0":"220H05142400B3MR2","52_0":"220H05142400B3ML2"},"active_ids":{"one_60":["0"],"two_0":["60","59","58","57","56","55","54","53","52"],"one_59":["0"],"one_58":["0"],"one_57":["0"],"one_56":["0"],"one_55":["0"],"one_54":["0"],"one_53":["0"],"one_52":["0"]},"variant_informations":{"60_0":{"additional_information":""},"59_0":{"additional_information":""},"58_0":{"additional_information":""},"57_0":{"additional_information":""},"56_0":{"additional_information":""},"55_0":{"additional_information":""},"54_0":{"additional_information":""},"53_0":{"additional_information":""},"52_0":{"additional_information":""}},"variant_stocks":{"60_0":"100","59_0":"100","58_0":"100","57_0":"100","56_0":"100","55_0":"100","54_0":"100","53_0":"100","52_0":"100"}}

Type 20H Radiateur Décoratif 514x2400 Noir mat ∆t50°C=1874 Kcal/h |∆t60°C= 2362 Kcal/h | 7 Tuyeaux | Chauffe 12-36 m2

66.874,50 TL

36.780,98 TL
%45 réduit
AKS Seçenekleri

{"vat":20,"m_o_p":0,"variant_ids":{"60_0":"6231","59_0":"8976","58_0":"11721","57_0":"14466","56_0":"17211","55_0":"18471","54_0":"19731","53_0":"21225","52_0":"21561"},"variant_prices":{"60_0":32396.65,"59_0":33276.65,"58_0":33276.65,"57_0":33276.65,"56_0":33276.65,"55_0":33276.65,"54_0":33276.65,"53_0":33276.65,"52_0":33276.65},"variant_price_raws":{"60_0":32396.65,"59_0":33276.65,"58_0":33276.65,"57_0":33276.65,"56_0":33276.65,"55_0":33276.65,"54_0":33276.65,"53_0":33276.65,"52_0":33276.65},"buying_prices":{"60_0":"0","59_0":"0","58_0":"0","57_0":"0","56_0":"0","55_0":"0","54_0":"0","53_0":"0","52_0":"0"},"not_discounted_prices":{"60_0":"58903","59_0":"60503","58_0":"60503","57_0":"60503","56_0":"60503","55_0":"60503","54_0":"60503","53_0":"60503","52_0":"60503"},"variant_supplier_codes":{"60_0":"220H05142400K6FS","59_0":"220H05142400K6FM2","58_0":"220H05142400K6FM3","57_0":"220H05142400K6FM1","56_0":"220H05142400K6FY0","55_0":"220H05142400K6FC1","54_0":"220H05142400K6FC2","53_0":"220H05142400K6FR2","52_0":"220H05142400K6FL2"},"active_ids":{"one_60":["0"],"two_0":["60","59","58","57","56","55","54","53","52"],"one_59":["0"],"one_58":["0"],"one_57":["0"],"one_56":["0"],"one_55":["0"],"one_54":["0"],"one_53":["0"],"one_52":["0"]},"variant_informations":{"60_0":{"additional_information":""},"59_0":{"additional_information":""},"58_0":{"additional_information":""},"57_0":{"additional_information":""},"56_0":{"additional_information":""},"55_0":{"additional_information":""},"54_0":{"additional_information":""},"53_0":{"additional_information":""},"52_0":{"additional_information":""}},"variant_stocks":{"60_0":"100","59_0":"100","58_0":"100","57_0":"100","56_0":"100","55_0":"100","54_0":"100","53_0":"100","52_0":"100"}}

Type 20H Radiateur Décoratif 514x2400 Effet bois ∆t50°C=1874 Kcal/h |∆t60°C= 2362 Kcal/h | 7 Tuyeaux | Chauffe 12-36 m2

70.683,60 TL

38.875,98 TL
