%45 réduit

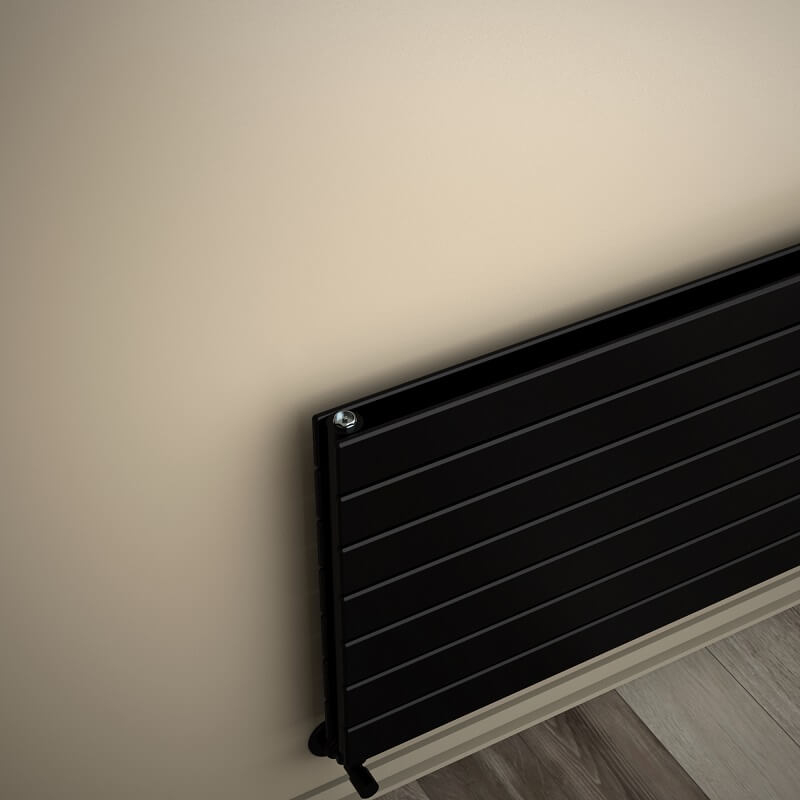

Type 20H Radiateur Décoratif 514x2500 Noir mat

Name: Type 20H Radiateur Décoratif 514x2500 Noir mat
SKU: 220H05142500B3MS
Price: 38144.70 TRY
Availability: InStock

Code De Produit : 220H05142500B3MS

Garantie : 10 Année

TAXES INCLUSES

Prix

69.354,00 TL

Prix réduit

38.144,70 TL

10 ans
Garantie

2000€ +
Livraison gratuite

{"vat":20,"m_o_p":0,"variant_ids":{"60_0":"6236","59_0":"8981","58_0":"11726","57_0":"14471","56_0":"17216","55_0":"18476","54_0":"19736","53_0":"21230","52_0":"21566"},"variant_prices":{"60_0":31787.25,"59_0":32667.25,"58_0":32667.25,"57_0":32667.25,"56_0":32667.25,"55_0":32667.25,"54_0":32667.25,"53_0":32667.25,"52_0":32667.25},"variant_price_raws":{"60_0":31787.25,"59_0":32667.25,"58_0":32667.25,"57_0":32667.25,"56_0":32667.25,"55_0":32667.25,"54_0":32667.25,"53_0":32667.25,"52_0":32667.25},"buying_prices":{"60_0":"0","59_0":"0","58_0":"0","57_0":"0","56_0":"0","55_0":"0","54_0":"0","53_0":"0","52_0":"0"},"not_discounted_prices":{"60_0":"57795","59_0":"59395","58_0":"59395","57_0":"59395","56_0":"59395","55_0":"59395","54_0":"59395","53_0":"59395","52_0":"59395"},"variant_supplier_codes":{"60_0":"220H05142500B3MS","59_0":"220H05142500B3MM2","58_0":"220H05142500B3MM3","57_0":"220H05142500B3MM1","56_0":"220H05142500B3MY0","55_0":"220H05142500B3MC1","54_0":"220H05142500B3MC2","53_0":"220H05142500B3MR2","52_0":"220H05142500B3ML2"},"active_ids":{"one_60":["0"],"two_0":["60","59","58","57","56","55","54","53","52"],"one_59":["0"],"one_58":["0"],"one_57":["0"],"one_56":["0"],"one_55":["0"],"one_54":["0"],"one_53":["0"],"one_52":["0"]},"variant_informations":{"60_0":{"additional_information":""},"59_0":{"additional_information":""},"58_0":{"additional_information":""},"57_0":{"additional_information":""},"56_0":{"additional_information":""},"55_0":{"additional_information":""},"54_0":{"additional_information":""},"53_0":{"additional_information":""},"52_0":{"additional_information":""}},"variant_stocks":{"60_0":"100","59_0":"100","58_0":"100","57_0":"100","56_0":"100","55_0":"100","54_0":"100","53_0":"100","52_0":"100"}}

Options de axe

Entrée Standard

Bas à droite 50mm

Bas à gauche 50mm

Bas Milieu 50mm

Côté-Bas Droite Bas Gauche

Croix-gauche en bas en haut à droite

Croisé en haut à gauche en bas à droite

514 Dek Radyator Yan-45cm Giriş Sağ

514 Dek Radyator Yan-45cm Giriş Sol

Choisissez la quantité

Ajouter Au Panier

Livraison Prévue

23.01.2025 (60 Jours)

Ajouter Un Commentaire Alerte Prix Ajouter À Ma Liste De Courses

Caractéristiques Du Produit
Téléchargements
Les Options De Paiement
Commentaires (0)

INFORMATIONS TECHNINQUES
• Model = 20H

• Matériel =Acier

• Hauteur=514 mm

• Largeur=2400 mm

• Couleur / Revêtement=Anthracite

• Nombre de sections=7 Pièces

• Nombre total de profils=7+7 Pièces

• Dimensions des profils=70x11 mm

• Dimension du collecteur=38 mm

• Pression de service maximale=4,5 bar

• Profondeur du radiateur=58 mm

• Du mur au centre de l'entrée=64 mm

• Distance entre mur et surface devant =93 mm

• Dimension du filetage du radiateur=1/2"

• Volume d'eau=17,7 lt

• Weight=53,9 kg

• Poids brute=57,91 kg

• Dimension de carton=57x246x9,6 cm

TAPPING OPTIONS

• Entrée Standard=2350 mm

• Entrée du bas au milieu=50mm

• Entrée du bas a droite=50mm

• Entrée du bas a gauche=50mm

• Côtés / Bas Droite-Gauche=2490mm

• Croix en haut à droite / en bas à gauche=2490mm

• Croix haut-gauche / bas-droite=2490mm

• Côté - droit=450mm

• Côté - gauche=450mm

Puissance thérmique

Kcal / h

• Puissance thérmique75/65-20°?t=50°C = 1874 Kcal/h

• Puissance thérmique90/70-20° ?t=60°C=2362Kcal/h

• Puissance thérmique55/45-20° ?t=30°C=960Kcal/h

Watts

• Puissance thérmique75/65-20°?t=50°C=2179 Watt

• Puissance thérmique90/70-20°?t=60°C=2746 Watt

• Puissance thérmique55/45-20°?t=30°C=1116 Watt

Btu

• Puissance thérmique75/65-20°?t=50°C=7435 Btu

• Puissance thérmique90/70-20°?t=60°C=9369 Btu

• Puissance thérmique55/45-20°?t=30°C=3807 Btu

Informations Sur La Garantie

:

10 Années

Livraison Info

:

60 Jours

Les Étiquettes Des Produits

panel radyatör , radyatör petek , radyatör fiyatları , radyatör modelleri , dizayn panel radyatör , dizayn panel radyatör fiyatları , dizayn radyatör , panel radyatör modelleri , radyatör ölçüleri , radyatörler , siyah radyatör , mat siyah radyatör

D'autres Couleurs

%45 réduit
AKS Seçenekleri

{"vat":20,"m_o_p":0,"variant_ids":{"60_0":"6233","59_0":"8978","58_0":"11723","57_0":"14468","56_0":"17213","55_0":"18473","54_0":"19733","53_0":"21227","52_0":"21563"},"variant_prices":{"60_0":25429.8,"59_0":26309.8,"58_0":26309.8,"57_0":26309.8,"56_0":26309.8,"55_0":26309.8,"54_0":26309.8,"53_0":26309.8,"52_0":26309.8},"variant_price_raws":{"60_0":25429.8,"59_0":26309.8,"58_0":26309.8,"57_0":26309.8,"56_0":26309.8,"55_0":26309.8,"54_0":26309.8,"53_0":26309.8,"52_0":26309.8},"buying_prices":{"60_0":"0","59_0":"0","58_0":"0","57_0":"0","56_0":"0","55_0":"0","54_0":"0","53_0":"0","52_0":"0"},"not_discounted_prices":{"60_0":"46236","59_0":"47836","58_0":"47836","57_0":"47836","56_0":"47836","55_0":"47836","54_0":"47836","53_0":"47836","52_0":"47836"},"variant_supplier_codes":{"60_0":"220H05142500B1PS","59_0":"220H05142500B1PM2","58_0":"220H05142500B1PM3","57_0":"220H05142500B1PM1","56_0":"220H05142500B1PY0","55_0":"220H05142500B1PC1","54_0":"220H05142500B1PC2","53_0":"220H05142500B1PR2","52_0":"220H05142500B1PL2"},"active_ids":{"one_60":["0"],"two_0":["60","59","58","57","56","55","54","53","52"],"one_59":["0"],"one_58":["0"],"one_57":["0"],"one_56":["0"],"one_55":["0"],"one_54":["0"],"one_53":["0"],"one_52":["0"]},"variant_informations":{"60_0":{"additional_information":""},"59_0":{"additional_information":""},"58_0":{"additional_information":""},"57_0":{"additional_information":""},"56_0":{"additional_information":""},"55_0":{"additional_information":""},"54_0":{"additional_information":""},"53_0":{"additional_information":""},"52_0":{"additional_information":""}},"variant_stocks":{"60_0":"100","59_0":"100","58_0":"100","57_0":"100","56_0":"100","55_0":"100","54_0":"100","53_0":"100","52_0":"100"}}

Type 20H Radiateur Décoratif 514x2500 Blanc ∆t50°C=1952 Kcal/h |∆t60°C= 2461 Kcal/h | 7 Tuyeaux | Chauffe 13-38 m2

55.483,20 TL

30.515,76 TL
%45 réduit
AKS Seçenekleri

{"vat":20,"m_o_p":0,"variant_ids":{"60_0":"6234","59_0":"8979","58_0":"11724","57_0":"14469","56_0":"17214","55_0":"18474","54_0":"19734","53_0":"21228","52_0":"21564"},"variant_prices":{"60_0":31787.25,"59_0":32667.25,"58_0":32667.25,"57_0":32667.25,"56_0":32667.25,"55_0":32667.25,"54_0":32667.25,"53_0":32667.25,"52_0":32667.25},"variant_price_raws":{"60_0":31787.25,"59_0":32667.25,"58_0":32667.25,"57_0":32667.25,"56_0":32667.25,"55_0":32667.25,"54_0":32667.25,"53_0":32667.25,"52_0":32667.25},"buying_prices":{"60_0":"0","59_0":"0","58_0":"0","57_0":"0","56_0":"0","55_0":"0","54_0":"0","53_0":"0","52_0":"0"},"not_discounted_prices":{"60_0":"57795","59_0":"59395","58_0":"59395","57_0":"59395","56_0":"59395","55_0":"59395","54_0":"59395","53_0":"59395","52_0":"59395"},"variant_supplier_codes":{"60_0":"220H05142500B2TS","59_0":"220H05142500B2TM2","58_0":"220H05142500B2TM3","57_0":"220H05142500B2TM1","56_0":"220H05142500B2TY0","55_0":"220H05142500B2TC1","54_0":"220H05142500B2TC2","53_0":"220H05142500B2TR2","52_0":"220H05142500B2TL2"},"active_ids":{"one_60":["0"],"two_0":["60","59","58","57","56","55","54","53","52"],"one_59":["0"],"one_58":["0"],"one_57":["0"],"one_56":["0"],"one_55":["0"],"one_54":["0"],"one_53":["0"],"one_52":["0"]},"variant_informations":{"60_0":{"additional_information":""},"59_0":{"additional_information":""},"58_0":{"additional_information":""},"57_0":{"additional_information":""},"56_0":{"additional_information":""},"55_0":{"additional_information":""},"54_0":{"additional_information":""},"53_0":{"additional_information":""},"52_0":{"additional_information":""}},"variant_stocks":{"60_0":"100","59_0":"100","58_0":"100","57_0":"100","56_0":"100","55_0":"100","54_0":"100","53_0":"100","52_0":"100"}}

Type 20H Radiateur Décoratif 514x2500 Anthracite ∆t50°C=1952 Kcal/h |∆t60°C= 2461 Kcal/h | 7 Tuyeaux | Chauffe 13-38 m2

69.354,00 TL

38.144,70 TL
%45 réduit
AKS Seçenekleri

{"vat":20,"m_o_p":0,"variant_ids":{"60_0":"6236","59_0":"8981","58_0":"11726","57_0":"14471","56_0":"17216","55_0":"18476","54_0":"19736","53_0":"21230","52_0":"21566"},"variant_prices":{"60_0":31787.25,"59_0":32667.25,"58_0":32667.25,"57_0":32667.25,"56_0":32667.25,"55_0":32667.25,"54_0":32667.25,"53_0":32667.25,"52_0":32667.25},"variant_price_raws":{"60_0":31787.25,"59_0":32667.25,"58_0":32667.25,"57_0":32667.25,"56_0":32667.25,"55_0":32667.25,"54_0":32667.25,"53_0":32667.25,"52_0":32667.25},"buying_prices":{"60_0":"0","59_0":"0","58_0":"0","57_0":"0","56_0":"0","55_0":"0","54_0":"0","53_0":"0","52_0":"0"},"not_discounted_prices":{"60_0":"57795","59_0":"59395","58_0":"59395","57_0":"59395","56_0":"59395","55_0":"59395","54_0":"59395","53_0":"59395","52_0":"59395"},"variant_supplier_codes":{"60_0":"220H05142500B3MS","59_0":"220H05142500B3MM2","58_0":"220H05142500B3MM3","57_0":"220H05142500B3MM1","56_0":"220H05142500B3MY0","55_0":"220H05142500B3MC1","54_0":"220H05142500B3MC2","53_0":"220H05142500B3MR2","52_0":"220H05142500B3ML2"},"active_ids":{"one_60":["0"],"two_0":["60","59","58","57","56","55","54","53","52"],"one_59":["0"],"one_58":["0"],"one_57":["0"],"one_56":["0"],"one_55":["0"],"one_54":["0"],"one_53":["0"],"one_52":["0"]},"variant_informations":{"60_0":{"additional_information":""},"59_0":{"additional_information":""},"58_0":{"additional_information":""},"57_0":{"additional_information":""},"56_0":{"additional_information":""},"55_0":{"additional_information":""},"54_0":{"additional_information":""},"53_0":{"additional_information":""},"52_0":{"additional_information":""}},"variant_stocks":{"60_0":"100","59_0":"100","58_0":"100","57_0":"100","56_0":"100","55_0":"100","54_0":"100","53_0":"100","52_0":"100"}}

Type 20H Radiateur Décoratif 514x2500 Noir mat ∆t50°C=1952 Kcal/h |∆t60°C= 2461 Kcal/h | 7 Tuyeaux | Chauffe 13-38 m2

69.354,00 TL

38.144,70 TL
%45 réduit
AKS Seçenekleri

{"vat":20,"m_o_p":0,"variant_ids":{"60_0":"6235","59_0":"8980","58_0":"11725","57_0":"14470","56_0":"17215","55_0":"18475","54_0":"19735","53_0":"21229","52_0":"21565"},"variant_prices":{"60_0":33530.2,"59_0":34410.2,"58_0":34410.2,"57_0":34410.2,"56_0":34410.2,"55_0":34410.2,"54_0":34410.2,"53_0":34410.2,"52_0":34410.2},"variant_price_raws":{"60_0":33530.2,"59_0":34410.2,"58_0":34410.2,"57_0":34410.2,"56_0":34410.2,"55_0":34410.2,"54_0":34410.2,"53_0":34410.2,"52_0":34410.2},"buying_prices":{"60_0":"0","59_0":"0","58_0":"0","57_0":"0","56_0":"0","55_0":"0","54_0":"0","53_0":"0","52_0":"0"},"not_discounted_prices":{"60_0":"60964","59_0":"62564","58_0":"62564","57_0":"62564","56_0":"62564","55_0":"62564","54_0":"62564","53_0":"62564","52_0":"62564"},"variant_supplier_codes":{"60_0":"220H05142500K6FS","59_0":"220H05142500K6FM2","58_0":"220H05142500K6FM3","57_0":"220H05142500K6FM1","56_0":"220H05142500K6FY0","55_0":"220H05142500K6FC1","54_0":"220H05142500K6FC2","53_0":"220H05142500K6FR2","52_0":"220H05142500K6FL2"},"active_ids":{"one_60":["0"],"two_0":["60","59","58","57","56","55","54","53","52"],"one_59":["0"],"one_58":["0"],"one_57":["0"],"one_56":["0"],"one_55":["0"],"one_54":["0"],"one_53":["0"],"one_52":["0"]},"variant_informations":{"60_0":{"additional_information":""},"59_0":{"additional_information":""},"58_0":{"additional_information":""},"57_0":{"additional_information":""},"56_0":{"additional_information":""},"55_0":{"additional_information":""},"54_0":{"additional_information":""},"53_0":{"additional_information":""},"52_0":{"additional_information":""}},"variant_stocks":{"60_0":"100","59_0":"100","58_0":"100","57_0":"100","56_0":"100","55_0":"100","54_0":"100","53_0":"100","52_0":"100"}}

Type 20H Radiateur Décoratif 514x2500 Effet bois ∆t50°C=1952 Kcal/h |∆t60°C= 2461 Kcal/h | 7 Tuyeaux | Chauffe 13-38 m2

73.156,80 TL

40.236,24 TL
