%45 réduit

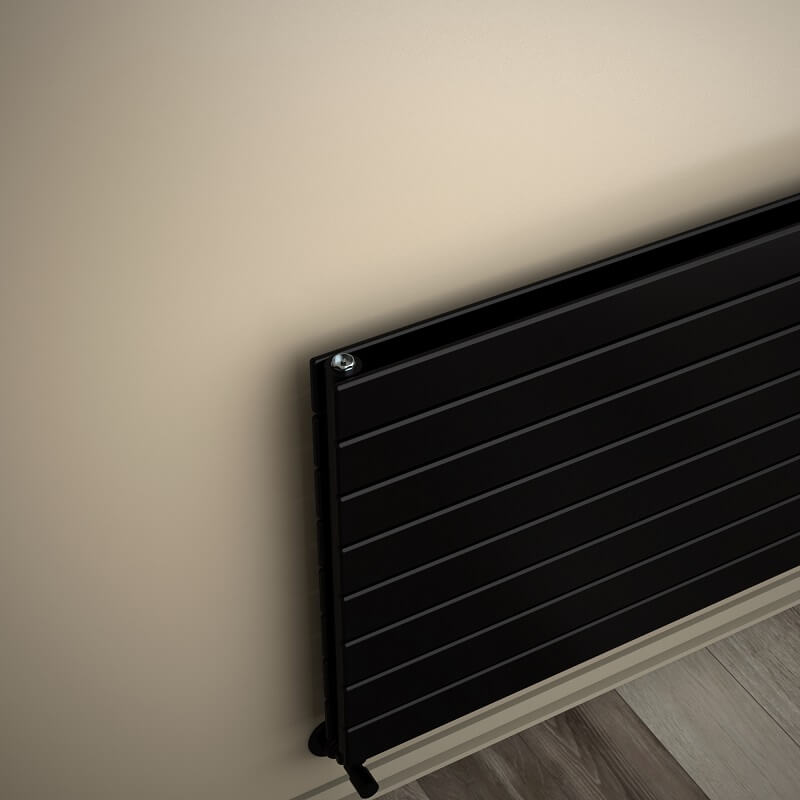

Type 20H Radiateur Décoratif 588x1700 Noir mat

Name: Type 20H Radiateur Décoratif 588x1700 Noir mat
SKU: 220H05881700B3MS
Price: 30698.25 TRY
Availability: InStock

Code De Produit : 220H05881700B3MS

Garantie : 10 Année

TAXES INCLUSES

Prix

55.815,00 TL

Prix réduit

30.698,25 TL

10 ans
Garantie

2000€ +
Livraison gratuite

{"vat":20,"m_o_p":0,"variant_ids":{"69_0":"6036","68_0":"14271","67_0":"11526","66_0":"8781","65_0":"17016","64_0":"18276","63_0":"19536","62_0":"22122","61_0":"21852"},"variant_prices":{"69_0":25581.875,"68_0":26461.875,"67_0":26461.875,"66_0":26461.875,"65_0":26461.875,"64_0":26461.875,"63_0":26461.875,"62_0":26461.875,"61_0":26461.875},"variant_price_raws":{"69_0":25581.875,"68_0":26461.875,"67_0":26461.875,"66_0":26461.875,"65_0":26461.875,"64_0":26461.875,"63_0":26461.875,"62_0":26461.875,"61_0":26461.875},"buying_prices":{"69_0":"0","68_0":"0","67_0":"0","66_0":"0","65_0":"0","64_0":"0","63_0":"0","62_0":"0","61_0":"0"},"not_discounted_prices":{"69_0":"46512.5","68_0":"48112.5","67_0":"48112.5","66_0":"48112.5","65_0":"48112.5","64_0":"48112.5","63_0":"48112.5","62_0":"48112.5","61_0":"48112.5"},"variant_supplier_codes":{"69_0":"220H05881700B3MS","68_0":"220H05881700B3MM1","67_0":"220H05881700B3MM3","66_0":"220H05881700B3MM2","65_0":"220H05881700B3MY0","64_0":"220H05881700B3MC1","63_0":"220H05881700B3MC2","62_0":"220H05881700B3ML4","61_0":"220H05881700B3MR4"},"active_ids":{"one_69":["0"],"two_0":["69","68","67","66","65","64","63","62","61"],"one_68":["0"],"one_67":["0"],"one_66":["0"],"one_65":["0"],"one_64":["0"],"one_63":["0"],"one_62":["0"],"one_61":["0"]},"variant_informations":{"69_0":{"additional_information":""},"68_0":{"additional_information":""},"67_0":{"additional_information":""},"66_0":{"additional_information":""},"65_0":{"additional_information":""},"64_0":{"additional_information":""},"63_0":{"additional_information":""},"62_0":{"additional_information":""},"61_0":{"additional_information":""}},"variant_stocks":{"69_0":"100","68_0":"100","67_0":"100","66_0":"100","65_0":"100","64_0":"100","63_0":"100","62_0":"100","61_0":"100"}}

Options de axe

Entrée Standard

Bas Milieu 50mm

Bas à gauche 50mm

Bas à droite 50mm

Côté-Bas Droite Bas Gauche

Croix-gauche en bas en haut à droite

Croisé en haut à gauche en bas à droite

588 Dek Radyator Yan-55cm Giriş Sol

588 Dek Radyator Yan-55cm Giriş Sağ

Choisissez la quantité

Ajouter Au Panier

Livraison Prévue

21.01.2025 (60 Jours)

Ajouter Un Commentaire Alerte Prix Ajouter À Ma Liste De Courses

Caractéristiques Du Produit
Téléchargements
Les Options De Paiement
Commentaires (0)

INFORMATIONS TECHNINQUES
• Model = 20H

• Matériel =Acier

• Hauteur=588 mm

• Largeur=1600 mm

• Couleur / Revêtement=Anthracite

• Nombre de sections=8 Pièces

• Nombre total de profils=8+8 Pièces

• Dimensions des profils=70x11 mm

• Dimension du collecteur=38 mm

• Pression de service maximale=4,5 bar

• Profondeur du radiateur=58 mm

• Du mur au centre de l'entrée=64 mm

• Distance entre mur et surface devant =93 mm

• Dimension du filetage du radiateur=1/2"

• Volume d'eau=13,8 lt

• Weight=41,6 kg

• Poids brute=44,73 kg

• Dimension de carton=64x166x9,6 cm

TAPPING OPTIONS

• Entrée Standard=1550 mm

• Entrée du bas au milieu=50mm

• Entrée du bas a droite=50mm

• Entrée du bas a gauche=50mm

• Côtés / Bas Droite-Gauche=1690mm

• Croix en haut à droite / en bas à gauche=1690mm

• Croix haut-gauche / bas-droite=1690mm

• Côté - droit=550mm

• Côté - gauche=550mm

Puissance thérmique

Kcal / h

• Puissance thérmique75/65-20°?t=50°C = 1387 Kcal/h

• Puissance thérmique90/70-20° ?t=60°C=1748Kcal/h

• Puissance thérmique55/45-20° ?t=30°C=711Kcal/h

Watts

• Puissance thérmique75/65-20°?t=50°C=1612 Watt

• Puissance thérmique90/70-20°?t=60°C=2032 Watt

• Puissance thérmique55/45-20°?t=30°C=826 Watt

Btu

• Puissance thérmique75/65-20°?t=50°C=5501 Btu

• Puissance thérmique90/70-20°?t=60°C=6932 Btu

• Puissance thérmique55/45-20°?t=30°C=2817 Btu

Informations Sur La Garantie

:

10 Années

Livraison Info

:

60 Jours

Les Étiquettes Des Produits

panel radyatör , radyatör petek , radyatör fiyatları , radyatör modelleri , dizayn panel radyatör , dizayn panel radyatör fiyatları , dizayn radyatör , panel radyatör modelleri , radyatör ölçüleri , radyatörler , siyah radyatör , mat siyah radyatör

D'autres Couleurs

%45 réduit
AKS Seçenekleri

{"vat":20,"m_o_p":0,"variant_ids":{"69_0":"6033","68_0":"14268","67_0":"11523","66_0":"8778","65_0":"17013","64_0":"18273","63_0":"19533","62_0":"22119","61_0":"21849"},"variant_prices":{"69_0":20465.5,"68_0":21345.5,"67_0":21345.5,"66_0":21345.5,"65_0":21345.5,"64_0":21345.5,"63_0":21345.5,"62_0":21345.5,"61_0":21345.5},"variant_price_raws":{"69_0":20465.5,"68_0":21345.5,"67_0":21345.5,"66_0":21345.5,"65_0":21345.5,"64_0":21345.5,"63_0":21345.5,"62_0":21345.5,"61_0":21345.5},"buying_prices":{"69_0":"0","68_0":"0","67_0":"0","66_0":"0","65_0":"0","64_0":"0","63_0":"0","62_0":"0","61_0":"0"},"not_discounted_prices":{"69_0":"37210","68_0":"38810","67_0":"38810","66_0":"38810","65_0":"38810","64_0":"38810","63_0":"38810","62_0":"38810","61_0":"38810"},"variant_supplier_codes":{"69_0":"220H05881700B1PS","68_0":"220H05881700B1PM1","67_0":"220H05881700B1PM3","66_0":"220H05881700B1PM2","65_0":"220H05881700B1PY0","64_0":"220H05881700B1PC1","63_0":"220H05881700B1PC2","62_0":"220H05881700B1PL4","61_0":"220H05881700B1PR4"},"active_ids":{"one_69":["0"],"two_0":["69","68","67","66","65","64","63","62","61"],"one_68":["0"],"one_67":["0"],"one_66":["0"],"one_65":["0"],"one_64":["0"],"one_63":["0"],"one_62":["0"],"one_61":["0"]},"variant_informations":{"69_0":{"additional_information":""},"68_0":{"additional_information":""},"67_0":{"additional_information":""},"66_0":{"additional_information":""},"65_0":{"additional_information":""},"64_0":{"additional_information":""},"63_0":{"additional_information":""},"62_0":{"additional_information":""},"61_0":{"additional_information":""}},"variant_stocks":{"69_0":"100","68_0":"100","67_0":"100","66_0":"100","65_0":"100","64_0":"100","63_0":"100","62_0":"100","61_0":"100"}}

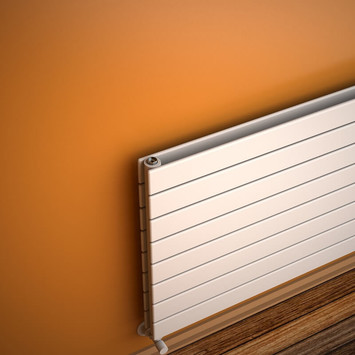

Type 20H Radiateur Décoratif 588x1700 Blanc ∆t50°C=1473 Kcal/h |∆t60°C= 1857 Kcal/h | 8 Tuyeaux | Chauffe 10-29 m2

44.652,00 TL

24.558,60 TL
%45 réduit
AKS Seçenekleri

{"vat":20,"m_o_p":0,"variant_ids":{"69_0":"6034","68_0":"14269","67_0":"11524","66_0":"8779","65_0":"17014","64_0":"18274","63_0":"19534","62_0":"22120","61_0":"21850"},"variant_prices":{"69_0":25581.875,"68_0":26461.875,"67_0":26461.875,"66_0":26461.875,"65_0":26461.875,"64_0":26461.875,"63_0":26461.875,"62_0":26461.875,"61_0":26461.875},"variant_price_raws":{"69_0":25581.875,"68_0":26461.875,"67_0":26461.875,"66_0":26461.875,"65_0":26461.875,"64_0":26461.875,"63_0":26461.875,"62_0":26461.875,"61_0":26461.875},"buying_prices":{"69_0":"0","68_0":"0","67_0":"0","66_0":"0","65_0":"0","64_0":"0","63_0":"0","62_0":"0","61_0":"0"},"not_discounted_prices":{"69_0":"46512.5","68_0":"48112.5","67_0":"48112.5","66_0":"48112.5","65_0":"48112.5","64_0":"48112.5","63_0":"48112.5","62_0":"48112.5","61_0":"48112.5"},"variant_supplier_codes":{"69_0":"220H05881700B2TS","68_0":"220H05881700B2TM1","67_0":"220H05881700B2TM3","66_0":"220H05881700B2TM2","65_0":"220H05881700B2TY0","64_0":"220H05881700B2TC1","63_0":"220H05881700B2TC2","62_0":"220H05881700B2TL4","61_0":"220H05881700B2TR4"},"active_ids":{"one_69":["0"],"two_0":["69","68","67","66","65","64","63","62","61"],"one_68":["0"],"one_67":["0"],"one_66":["0"],"one_65":["0"],"one_64":["0"],"one_63":["0"],"one_62":["0"],"one_61":["0"]},"variant_informations":{"69_0":{"additional_information":""},"68_0":{"additional_information":""},"67_0":{"additional_information":""},"66_0":{"additional_information":""},"65_0":{"additional_information":""},"64_0":{"additional_information":""},"63_0":{"additional_information":""},"62_0":{"additional_information":""},"61_0":{"additional_information":""}},"variant_stocks":{"69_0":"100","68_0":"100","67_0":"100","66_0":"100","65_0":"100","64_0":"100","63_0":"100","62_0":"100","61_0":"100"}}

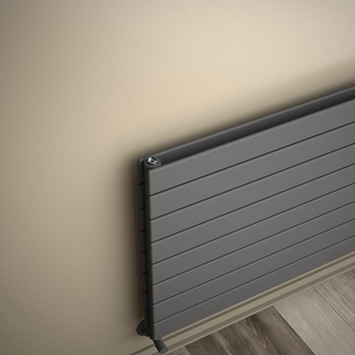

Type 20H Radiateur Décoratif 588x1700 Anthracite ∆t50°C=1473 Kcal/h |∆t60°C= 1857 Kcal/h | 8 Tuyeaux | Chauffe 10-29 m2

55.815,00 TL

30.698,25 TL
%45 réduit
AKS Seçenekleri

{"vat":20,"m_o_p":0,"variant_ids":{"69_0":"6036","68_0":"14271","67_0":"11526","66_0":"8781","65_0":"17016","64_0":"18276","63_0":"19536","62_0":"22122","61_0":"21852"},"variant_prices":{"69_0":25581.875,"68_0":26461.875,"67_0":26461.875,"66_0":26461.875,"65_0":26461.875,"64_0":26461.875,"63_0":26461.875,"62_0":26461.875,"61_0":26461.875},"variant_price_raws":{"69_0":25581.875,"68_0":26461.875,"67_0":26461.875,"66_0":26461.875,"65_0":26461.875,"64_0":26461.875,"63_0":26461.875,"62_0":26461.875,"61_0":26461.875},"buying_prices":{"69_0":"0","68_0":"0","67_0":"0","66_0":"0","65_0":"0","64_0":"0","63_0":"0","62_0":"0","61_0":"0"},"not_discounted_prices":{"69_0":"46512.5","68_0":"48112.5","67_0":"48112.5","66_0":"48112.5","65_0":"48112.5","64_0":"48112.5","63_0":"48112.5","62_0":"48112.5","61_0":"48112.5"},"variant_supplier_codes":{"69_0":"220H05881700B3MS","68_0":"220H05881700B3MM1","67_0":"220H05881700B3MM3","66_0":"220H05881700B3MM2","65_0":"220H05881700B3MY0","64_0":"220H05881700B3MC1","63_0":"220H05881700B3MC2","62_0":"220H05881700B3ML4","61_0":"220H05881700B3MR4"},"active_ids":{"one_69":["0"],"two_0":["69","68","67","66","65","64","63","62","61"],"one_68":["0"],"one_67":["0"],"one_66":["0"],"one_65":["0"],"one_64":["0"],"one_63":["0"],"one_62":["0"],"one_61":["0"]},"variant_informations":{"69_0":{"additional_information":""},"68_0":{"additional_information":""},"67_0":{"additional_information":""},"66_0":{"additional_information":""},"65_0":{"additional_information":""},"64_0":{"additional_information":""},"63_0":{"additional_information":""},"62_0":{"additional_information":""},"61_0":{"additional_information":""}},"variant_stocks":{"69_0":"100","68_0":"100","67_0":"100","66_0":"100","65_0":"100","64_0":"100","63_0":"100","62_0":"100","61_0":"100"}}

Type 20H Radiateur Décoratif 588x1700 Noir mat ∆t50°C=1473 Kcal/h |∆t60°C= 1857 Kcal/h | 8 Tuyeaux | Chauffe 10-29 m2

55.815,00 TL

30.698,25 TL
%45 réduit
AKS Seçenekleri

{"vat":20,"m_o_p":0,"variant_ids":{"69_0":"6035","68_0":"14270","67_0":"11525","66_0":"8780","65_0":"17015","64_0":"18275","63_0":"19535","62_0":"22121","61_0":"21851"},"variant_prices":{"69_0":27320.15,"68_0":28200.15,"67_0":28200.15,"66_0":28200.15,"65_0":28200.15,"64_0":28200.15,"63_0":28200.15,"62_0":28200.15,"61_0":28200.15},"variant_price_raws":{"69_0":27320.15,"68_0":28200.15,"67_0":28200.15,"66_0":28200.15,"65_0":28200.15,"64_0":28200.15,"63_0":28200.15,"62_0":28200.15,"61_0":28200.15},"buying_prices":{"69_0":"0","68_0":"0","67_0":"0","66_0":"0","65_0":"0","64_0":"0","63_0":"0","62_0":"0","61_0":"0"},"not_discounted_prices":{"69_0":"49673","68_0":"51273","67_0":"51273","66_0":"51273","65_0":"51273","64_0":"51273","63_0":"51273","62_0":"51273","61_0":"51273"},"variant_supplier_codes":{"69_0":"220H05881700K6FS","68_0":"220H05881700K6FM1","67_0":"220H05881700K6FM3","66_0":"220H05881700K6FM2","65_0":"220H05881700K6FY0","64_0":"220H05881700K6FC1","63_0":"220H05881700K6FC2","62_0":"220H05881700K6FL4","61_0":"220H05881700K6FR4"},"active_ids":{"one_69":["0"],"two_0":["69","68","67","66","65","64","63","62","61"],"one_68":["0"],"one_67":["0"],"one_66":["0"],"one_65":["0"],"one_64":["0"],"one_63":["0"],"one_62":["0"],"one_61":["0"]},"variant_informations":{"69_0":{"additional_information":""},"68_0":{"additional_information":""},"67_0":{"additional_information":""},"66_0":{"additional_information":""},"65_0":{"additional_information":""},"64_0":{"additional_information":""},"63_0":{"additional_information":""},"62_0":{"additional_information":""},"61_0":{"additional_information":""}},"variant_stocks":{"69_0":"100","68_0":"100","67_0":"100","66_0":"100","65_0":"100","64_0":"100","63_0":"100","62_0":"100","61_0":"100"}}

Type 20H Radiateur Décoratif 588x1700 Effet bois ∆t50°C=1473 Kcal/h |∆t60°C= 1857 Kcal/h | 8 Tuyeaux | Chauffe 10-29 m2

59.607,60 TL

32.784,18 TL
