%45 réduit

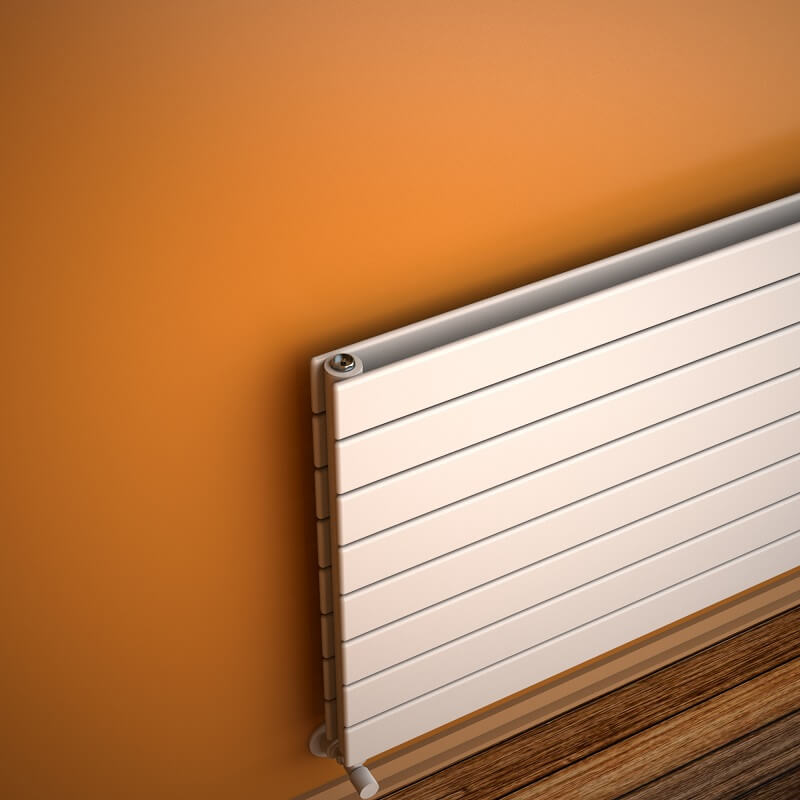

Type 20H Radiateur Décoratif 588x2200 Blanc

Name: Type 20H Radiateur Décoratif 588x2200 Blanc
SKU: 220H05882200B1PS
Price: 30789.00 TRY
Availability: InStock

Code De Produit : 220H05882200B1PS

Garantie : 10 Année

TAXES INCLUSES

Prix

55.980,00 TL

Prix réduit

30.789,00 TL

10 ans
Garantie

2000€ +
Livraison gratuite

{"vat":20,"m_o_p":0,"variant_ids":{"69_0":"6053","68_0":"14288","67_0":"11543","66_0":"8798","65_0":"17033","64_0":"18293","63_0":"19553","62_0":"22139","61_0":"21869"},"variant_prices":{"69_0":25657.5,"68_0":26537.5,"67_0":26537.5,"66_0":26537.5,"65_0":26537.5,"64_0":26537.5,"63_0":26537.5,"62_0":26537.5,"61_0":26537.5},"variant_price_raws":{"69_0":25657.5,"68_0":26537.5,"67_0":26537.5,"66_0":26537.5,"65_0":26537.5,"64_0":26537.5,"63_0":26537.5,"62_0":26537.5,"61_0":26537.5},"buying_prices":{"69_0":"0","68_0":"0","67_0":"0","66_0":"0","65_0":"0","64_0":"0","63_0":"0","62_0":"0","61_0":"0"},"not_discounted_prices":{"69_0":"46650","68_0":"48250","67_0":"48250","66_0":"48250","65_0":"48250","64_0":"48250","63_0":"48250","62_0":"48250","61_0":"48250"},"variant_supplier_codes":{"69_0":"220H05882200B1PS","68_0":"220H05882200B1PM1","67_0":"220H05882200B1PM3","66_0":"220H05882200B1PM2","65_0":"220H05882200B1PY0","64_0":"220H05882200B1PC1","63_0":"220H05882200B1PC2","62_0":"220H05882200B1PL4","61_0":"220H05882200B1PR4"},"active_ids":{"one_69":["0"],"two_0":["69","68","67","66","65","64","63","62","61"],"one_68":["0"],"one_67":["0"],"one_66":["0"],"one_65":["0"],"one_64":["0"],"one_63":["0"],"one_62":["0"],"one_61":["0"]},"variant_informations":{"69_0":{"additional_information":""},"68_0":{"additional_information":""},"67_0":{"additional_information":""},"66_0":{"additional_information":""},"65_0":{"additional_information":""},"64_0":{"additional_information":""},"63_0":{"additional_information":""},"62_0":{"additional_information":""},"61_0":{"additional_information":""}},"variant_stocks":{"69_0":"100","68_0":"99","67_0":"100","66_0":"100","65_0":"100","64_0":"100","63_0":"100","62_0":"100","61_0":"100"}}

Options de axe

Entrée Standard

Bas Milieu 50mm

Bas à gauche 50mm

Bas à droite 50mm

Côté-Bas Droite Bas Gauche

Croix-gauche en bas en haut à droite

Croisé en haut à gauche en bas à droite

588 Dek Radyator Yan-55cm Giriş Sol

588 Dek Radyator Yan-55cm Giriş Sağ

Choisissez la quantité

Ajouter Au Panier

Livraison Prévue

23.01.2025 (60 Jours)

Ajouter Un Commentaire Alerte Prix Ajouter À Ma Liste De Courses

Caractéristiques Du Produit
Téléchargements
Les Options De Paiement
Commentaires (0)

INFORMATIONS TECHNINQUES
• Model = 20H

• Matériel =Acier

• Hauteur=588 mm

• Largeur=2000 mm

• Couleur / Revêtement=Effet Bois

• Nombre de sections=8 Pièces

• Nombre total de profils=8+8 Pièces

• Dimensions des profils=70x11 mm

• Dimension du collecteur=38 mm

• Pression de service maximale=4,5 bar

• Profondeur du radiateur=58 mm

• Du mur au centre de l'entrée=64 mm

• Distance entre mur et surface devant =93 mm

• Dimension du filetage du radiateur=1/2"

• Volume d'eau=17 lt

• Weight=51,6 kg

• Poids brute=55,43 kg

• Dimension de carton=64x206x9,6 cm

TAPPING OPTIONS

• Entrée Standard=1950 mm

• Entrée du bas au milieu=50mm

• Entrée du bas a droite=50mm

• Entrée du bas a gauche=50mm

• Côtés / Bas Droite-Gauche=2090mm

• Croix en haut à droite / en bas à gauche=2090mm

• Croix haut-gauche / bas-droite=2090mm

• Côté - droit=550mm

• Côté - gauche=550mm

Puissance thérmique

Kcal / h

• Puissance thérmique75/65-20°?t=50°C = 1734 Kcal/h

• Puissance thérmique90/70-20° ?t=60°C=2185Kcal/h

• Puissance thérmique55/45-20° ?t=30°C=888Kcal/h

Watts

• Puissance thérmique75/65-20°?t=50°C=2016 Watt

• Puissance thérmique90/70-20°?t=60°C=2541 Watt

• Puissance thérmique55/45-20°?t=30°C=1033 Watt

Btu

• Puissance thérmique75/65-20°?t=50°C=6879 Btu

• Puissance thérmique90/70-20°?t=60°C=8668 Btu

• Puissance thérmique55/45-20°?t=30°C=3523 Btu

Informations Sur La Garantie

:

10 Années

Livraison Info

:

60 Jours
