%45 réduit

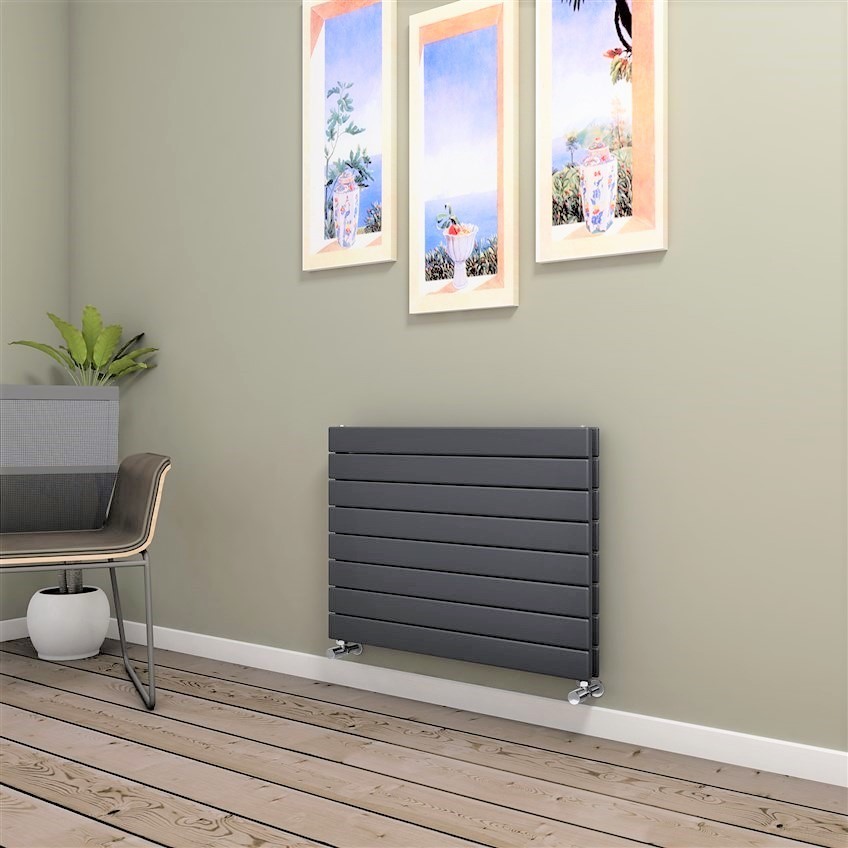

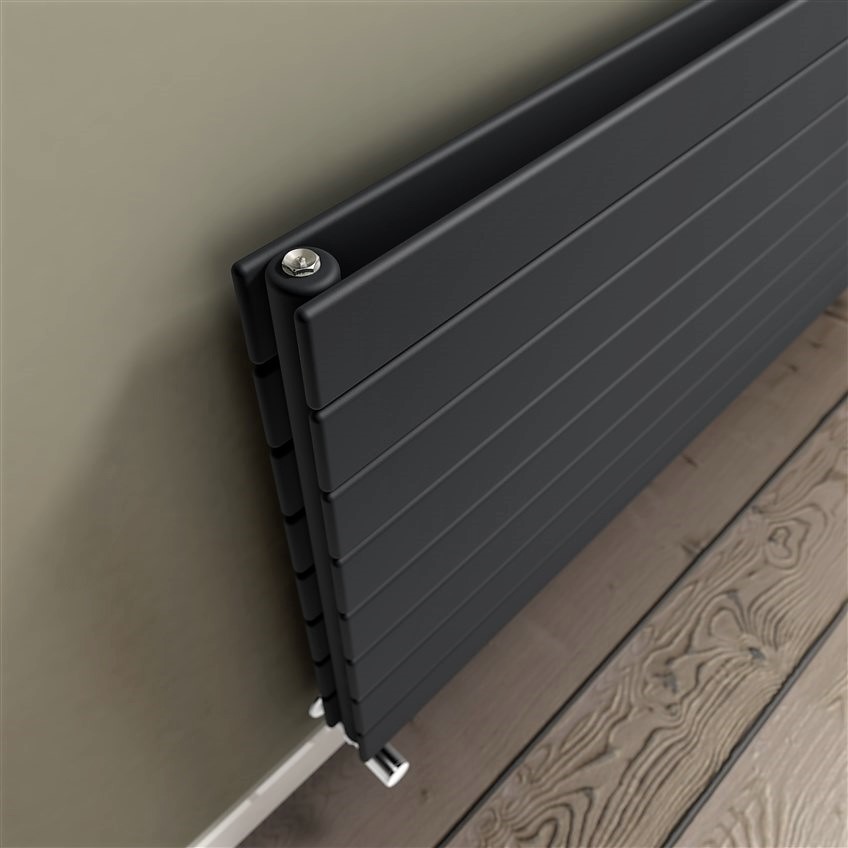

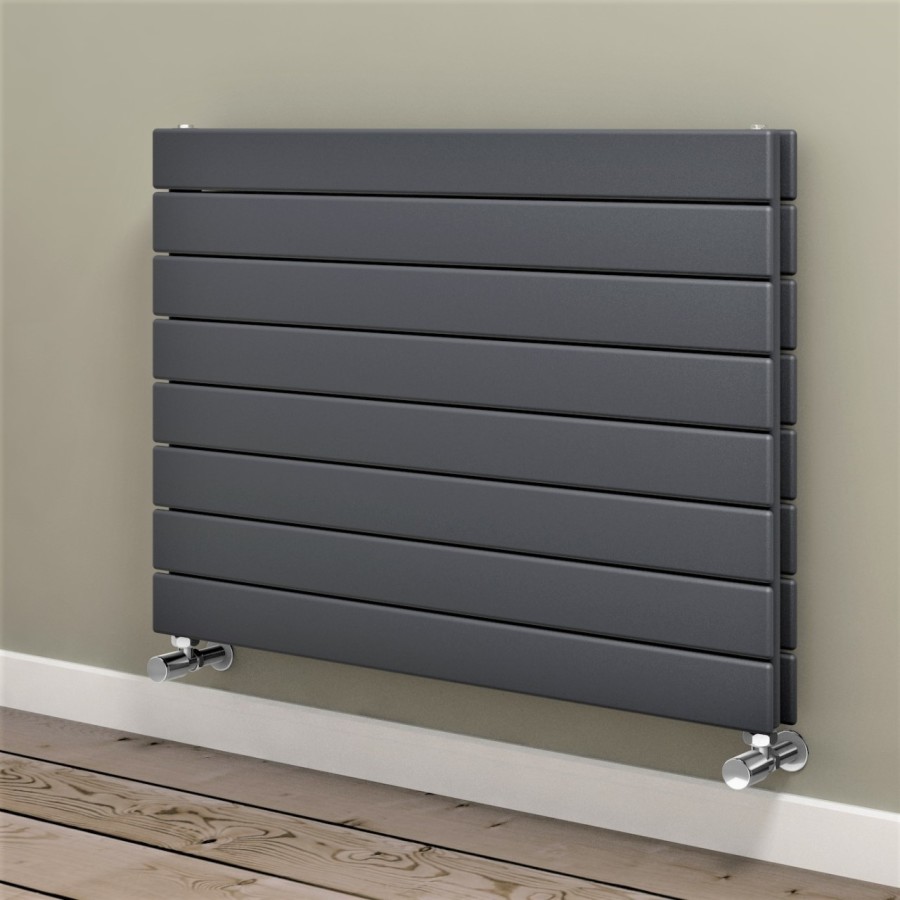

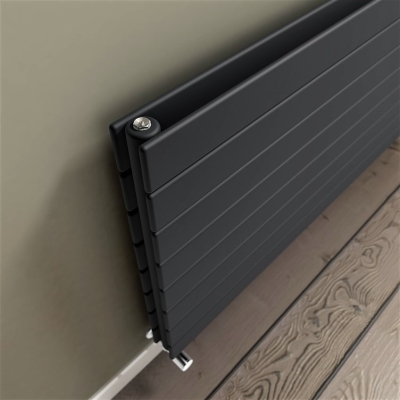

Type 20H Radiateur Décoratif 588x800 Anthracite

Name: Type 20H Radiateur Décoratif 588x800 Anthracite
SKU: 220H05880800B2TS
Price: 16713.68 TRY
Availability: InStock

Code De Produit : 220H05880800B2TS

Garantie : 10 Année

TAXES INCLUSES

Prix

30.388,50 TL

Prix réduit

16.713,68 TL

10 ans
Garantie

2000€ +
Livraison gratuite

{"vat":20,"m_o_p":0,"variant_ids":{"69_0":"4764","68_0":"4895","67_0":"5026","66_0":"5157","65_0":"5303","64_0":"5312","63_0":"5321","62_0":"5339","61_0":"5330"},"variant_prices":{"69_0":13928.0625,"68_0":14808.0625,"67_0":14808.0625,"66_0":14808.0625,"65_0":14808.0625,"64_0":14808.0625,"63_0":14808.0625,"62_0":14808.0625,"61_0":14808.0625},"variant_price_raws":{"69_0":13928.0625,"68_0":14808.0625,"67_0":14808.0625,"66_0":14808.0625,"65_0":14808.0625,"64_0":14808.0625,"63_0":14808.0625,"62_0":14808.0625,"61_0":14808.0625},"buying_prices":{"69_0":"0","68_0":"0","67_0":"0","66_0":"0","65_0":"0","64_0":"0","63_0":"0","62_0":"0","61_0":"0"},"not_discounted_prices":{"69_0":"25323.75","68_0":"26923.75","67_0":"26923.75","66_0":"26923.75","65_0":"26923.75","64_0":"26923.75","63_0":"26923.75","62_0":"26923.75","61_0":"26923.75"},"variant_supplier_codes":{"69_0":"220H05880800B2TS","68_0":"220H05880800B2TM1","67_0":"220H05880800B2TM3","66_0":"220H05880800B2TM2","65_0":"220H05880800B2TY0","64_0":"220H05880800B2TC1","63_0":"220H05880800B2TC2","62_0":"220H05880800B2TL4","61_0":"220H05880800B2TR4"},"active_ids":{"one_69":["0"],"two_0":["69","68","67","66","65","64","63","62","61"],"one_68":["0"],"one_67":["0"],"one_66":["0"],"one_65":["0"],"one_64":["0"],"one_63":["0"],"one_62":["0"],"one_61":["0"]},"variant_informations":{"69_0":{"additional_information":""},"68_0":{"additional_information":""},"67_0":{"additional_information":""},"66_0":{"additional_information":""},"65_0":{"additional_information":""},"64_0":{"additional_information":""},"63_0":{"additional_information":""},"62_0":{"additional_information":""},"61_0":{"additional_information":""}},"variant_stocks":{"69_0":"100","68_0":"100","67_0":"99","66_0":"98","65_0":"100","64_0":"100","63_0":"100","62_0":"99","61_0":"97"}}

Options de axe

Entrée Standard

Bas Milieu 50mm

Bas à gauche 50mm

Bas à droite 50mm

Côté-Bas Droite Bas Gauche

Croix-gauche en bas en haut à droite

Croisé en haut à gauche en bas à droite

588 Dek Radyator Yan-55cm Giriş Sol

588 Dek Radyator Yan-55cm Giriş Sağ

Choisissez la quantité

Ajouter Au Panier

Livraison Prévue

21.01.2025 (60 Jours)

Ajouter Un Commentaire Alerte Prix Ajouter À Ma Liste De Courses

Caractéristiques Du Produit
Téléchargements
Les Options De Paiement
Commentaires (0)

INFORMATIONS TECHNINQUES
• Model = 20H

• Matériel =Acier

• Hauteur=588 mm

• Largeur=700 mm

• Couleur / Revêtement=Blanc vif RAL9016

• Nombre de sections=8 Pièces

• Nombre total de profils=8+8 Pièces

• Dimensions des profils=70x11 mm

• Dimension du collecteur=38 mm

• Pression de service maximale=4,5 bar

• Profondeur du radiateur=58 mm

• Du mur au centre de l'entrée=64 mm

• Distance entre mur et surface devant =93 mm

• Dimension du filetage du radiateur=1/2"

• Volume d'eau=6,7 lt

• Weight=19,2 kg

• Poids brute=20,74 kg

• Dimension de carton=64x76x9,6 cm

TAPPING OPTIONS

• Entrée Standard=650 mm

• Entrée du bas au milieu=50mm

• Entrée du bas a droite=50mm

• Entrée du bas a gauche=50mm

• Côtés / Bas Droite-Gauche=790mm

• Croix en haut à droite / en bas à gauche=790mm

• Croix haut-gauche / bas-droite=790mm

• Côté - droit=550mm

• Côté - gauche=550mm

Puissance thérmique

Kcal / h

• Puissance thérmique75/65-20°?t=50°C = 607 Kcal/h

• Puissance thérmique90/70-20° ?t=60°C=765Kcal/h

• Puissance thérmique55/45-20° ?t=30°C=311Kcal/h

Watts

• Puissance thérmique75/65-20°?t=50°C=705 Watt

• Puissance thérmique90/70-20°?t=60°C=889 Watt

• Puissance thérmique55/45-20°?t=30°C=361 Watt

Btu

• Puissance thérmique75/65-20°?t=50°C=2406 Btu

• Puissance thérmique90/70-20°?t=60°C=3032 Btu

• Puissance thérmique55/45-20°?t=30°C=1232 Btu

Informations Sur La Garantie

:

10 Années

Livraison Info

:

60 Jours
