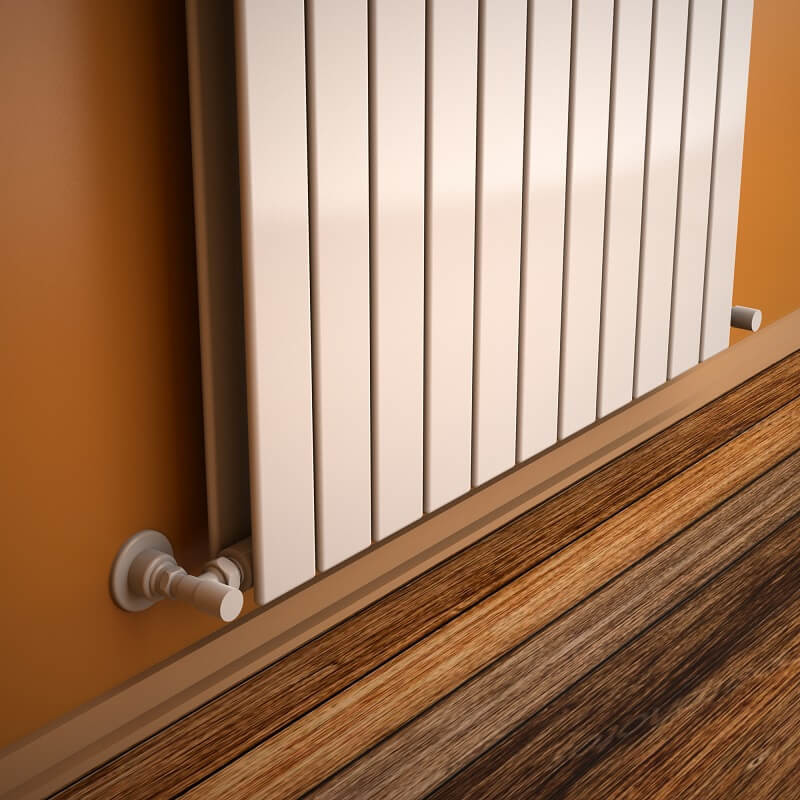

Type 20V Radiateur Décoratif 1600x810 Blanc

Name: Type 20V Radiateur Décoratif 1600x810 Blanc
SKU: 220V16000810B1PS
Price: 31107.12 TRY
Availability: InStock

Code De Produit : 220V16000810B1PS

Garantie : 10 Année

TAXES INCLUSES

Prix

56.558,40 TL

Prix réduit

31.107,12 TL

10 ans
Garantie

2000€ +
Livraison gratuite

Options de axe

Entrée Standard

Bas Milieu 50mm

Bas à gauche 50mm

Bas à droite 50mm

Choisissez la quantité

Ajouter Au Panier

Livraison Prévue

21.01.2025 (60 Jours)

Ajouter Un Commentaire Alerte Prix Ajouter À Ma Liste De Courses

Caractéristiques Du Produit
Téléchargements
Les Options De Paiement
Commentaires (0)

INFORMATIONS TECHNINQUES
• Model = 20V

• Matériel =Acier

• Hauteur=1600 mm

• Largeur=662 mm

• Couleur / Revêtement=Effet Bois

• Nombre de sections=9 Pièces

• Nombre total de profils=9+9 Pièces

• Dimensions des profils=70x11 mm

• Dimension du collecteur=38 mm

• Pression de service maximale=4,5 bar

• Profondeur du radiateur=58 mm

• Du mur au centre de l'entrée=64 mm

• Distance entre mur et surface devant =93 mm

• Dimension du filetage du radiateur=1/2"

• Volume d'eau=15,6 lt

• Weight=46,8 kg

• Poids brute=50,28 kg

• Dimension de carton=71x165x9,6 cm

TAPPING OPTIONS

• Entrée Standard1 =752 mm

• Entrée Standard2 =1550 mm

• Croix d'entrée standard =752 mm

• Entrée du bas au milieu=50mm

• Entrée du bas a droite=50mm

• Entrée du bas a gauche=50mm

Puissance thérmique

Kcal / h

• Puissance thérmique75/65-20°?t=50°C = 1459 Kcal/h

• Puissance thérmique90/70-20° ?t=60°C=1839Kcal/h

• Puissance thérmique55/45-20° ?t=30°C=748 Kcal/h

Watts

• Puissance thérmique75/65-20°?t=50°C=1696 Watt

• Puissance thérmique90/70-20°?t=60°C=2137 Watt

• Puissance thérmique55/45-20°?t=30°C=869 Watt

Btu

• Puissance thérmique75/65-20°?t=50°C=5787 Btu

• Puissance thérmique90/70-20°?t=60°C=7292 Btu

• Puissance thérmique55/45-20°?t=30°C=2963 Btu

Informations Sur La Garantie

:

10 Années

Livraison Info

:

60 Jours

Les Étiquettes Des Produits
