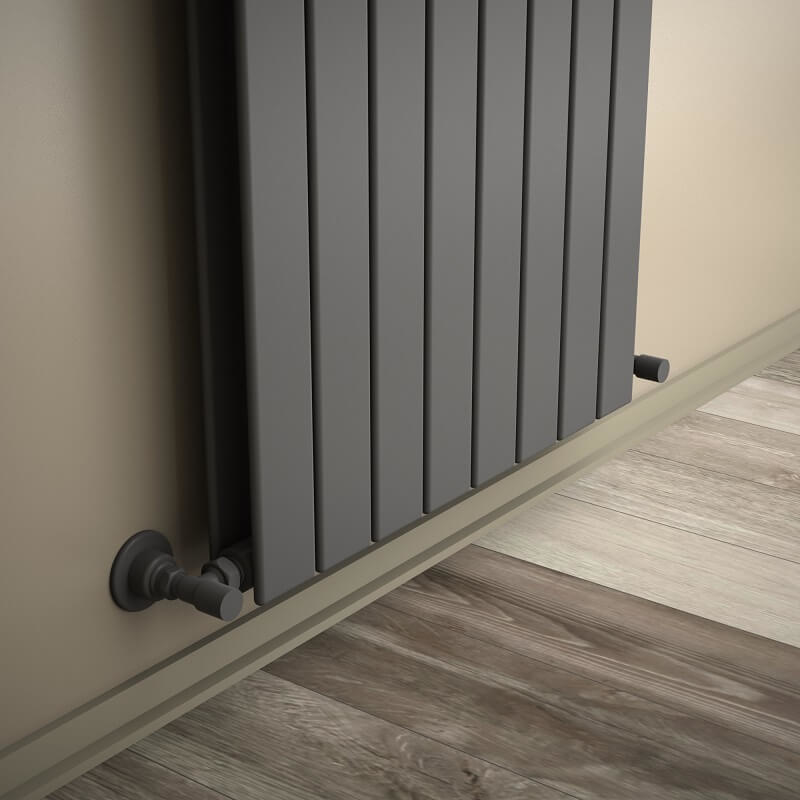

Type 20V Radiateur Décoratif 2200x588 Anthracite

Name: Type 20V Radiateur Décoratif 2200x588 Anthracite
SKU: 220V22000588B2TS
Price: 38486.25 TRY
Availability: InStock

Code De Produit : 220V22000588B2TS

Garantie : 10 Année

TAXES INCLUSES

Prix

69.975,00 TL

Prix réduit

38.486,25 TL

10 ans
Garantie

2000€ +
Livraison gratuite

Options de axe

Entrée Standard

Bas Milieu 50mm

Bas à gauche 50mm

Bas à droite 50mm

Choisissez la quantité

Ajouter Au Panier

Livraison Prévue

22.01.2025 (60 Jours)

Ajouter Un Commentaire Alerte Prix Ajouter À Ma Liste De Courses

Caractéristiques Du Produit
Téléchargements
Les Options De Paiement
Commentaires (0)

INFORMATIONS TECHNINQUES
• Model = 20V

• Matériel =Acier

• Hauteur=2200 mm

• Largeur=514 mm

• Couleur / Revêtement=Blanc vif RAL9016

• Nombre de sections=7 Pièces

• Nombre total de profils=7+7 Pièces

• Dimensions des profils=70x11 mm

• Dimension du collecteur=38 mm

• Pression de service maximale=4,5 bar

• Profondeur du radiateur=58 mm

• Du mur au centre de l'entrée=64 mm

• Distance entre mur et surface devant =93 mm

• Dimension du filetage du radiateur=1/2"

• Volume d'eau=16,3 lt

• Weight=49,5 kg

• Poids brute=53,2 kg

• Dimension de carton=56x225x9,6 cm

TAPPING OPTIONS

• Entrée Standard1 =604 mm

• Entrée Standard2 =2150 mm

• Croix d'entrée standard =604 mm

• Entrée du bas au milieu=50mm

• Entrée du bas a droite=50mm

• Entrée du bas a gauche=50mm

Puissance thérmique

Kcal / h

• Puissance thérmique75/65-20°?t=50°C = 1465 Kcal/h

• Puissance thérmique90/70-20° ?t=60°C=1846Kcal/h

• Puissance thérmique55/45-20° ?t=30°C=751 Kcal/h

Watts

• Puissance thérmique75/65-20°?t=50°C=1703 Watt

• Puissance thérmique90/70-20°?t=60°C=2146 Watt

• Puissance thérmique55/45-20°?t=30°C=872 Watt

Btu

• Puissance thérmique75/65-20°?t=50°C=5811 Btu

• Puissance thérmique90/70-20°?t=60°C=7322 Btu

• Puissance thérmique55/45-20°?t=30°C=2976 Btu

Informations Sur La Garantie

:

10 Années

Livraison Info

:

60 Jours
