Type 20V Radiateur Décoratif 400x292 Blanc

Name: Type 20V Radiateur Décoratif 400x292 Blanc
SKU: 220V04000292B1PS
Price: 5457.54 TRY
Availability: InStock

Code De Produit : 220V04000292B1PS

Garantie : 10 Année

TAXES INCLUSES

Prix

9.922,80 TL

Prix réduit

5.457,54 TL

10 ans
Garantie

2000€ +
Livraison gratuite

Options de axe

Entrée Standard

Bas Milieu 50mm

Bas à gauche 50mm

Bas à droite 50mm

Choisissez la quantité

Ajouter Au Panier

Livraison Prévue

20.01.2025 (60 Jours)

Ajouter Un Commentaire Alerte Prix Ajouter À Ma Liste De Courses

Caractéristiques Du Produit
Téléchargements
Les Options De Paiement
Commentaires (0)

INFORMATIONS TECHNINQUES
• Model = 20H

• Matériel =Acier

• Hauteur=884 mm

• Largeur=2500 mm

• Couleur / Revêtement=Effet Bois

• Nombre de sections=12 Pièces

• Nombre total de profils=12+12 Pièces

• Dimensions des profils=70x11 mm

• Dimension du collecteur=38 mm

• Pression de service maximale=4,5 bar

• Profondeur du radiateur=58 mm

• Du mur au centre de l'entrée=64 mm

• Distance entre mur et surface devant =93 mm

• Dimension du filetage du radiateur=1/2"

• Volume d'eau=31,5 lt

• Weight=96,1 kg

• Poids brute=103,03 kg

• Dimension de carton=94x256x9,6 cm

TAPPING OPTIONS

• Entrée Standard=2450 mm

• Entrée du bas au milieu=50mm

• Entrée du bas a droite=50mm

• Entrée du bas a gauche=50mm

• Côtés / Bas Droite-Gauche=2590mm

• Croix en haut à droite / en bas à gauche=2590mm

• Croix haut-gauche / bas-droite=2590mm

• Côté - droit=850mm

• Côté - gauche=850mm

Puissance thérmique

Kcal / h

• Puissance thérmique75/65-20°?t=50°C = 2994 Kcal/h

• Puissance thérmique90/70-20° ?t=60°C=3773Kcal/h

• Puissance thérmique55/45-20° ?t=30°C=1533Kcal/h

Watts

• Puissance thérmique75/65-20°?t=50°C=3481 Watt

• Puissance thérmique90/70-20°?t=60°C=4387 Watt

• Puissance thérmique55/45-20°?t=30°C=1783 Watt

Btu

• Puissance thérmique75/65-20°?t=50°C=11878 Btu

• Puissance thérmique90/70-20°?t=60°C=14967 Btu

• Puissance thérmique55/45-20°?t=30°C=6082 Btu

Informations Sur La Garantie

:

10 Années

Livraison Info

:

60 Jours

Les Étiquettes Des Produits

dizayn radyatör , dizayn panel radyatör fiyatları , dizayn panel radyatör , radyatör modelleri , radyatör fiyatları , radyatör petek , panel radyatör , panel radyatör modelleri , radyatör ölçüleri , radyatörler

D'autres Couleurs

%45 réduit
AKS Seçenekleri

{"vat":20,"m_o_p":0,"variant_ids":{"37_0":"7068","36_0":"15303","34_0":"12558","35_0":"9813"},"variant_prices":{"37_0":4547.95,"36_0":5427.95,"34_0":5427.95,"35_0":5427.95},"variant_price_raws":{"37_0":4547.95,"36_0":5427.95,"34_0":5427.95,"35_0":5427.95},"buying_prices":{"37_0":"0","36_0":"0","34_0":"0","35_0":"0"},"not_discounted_prices":{"37_0":"8269","36_0":"9869","34_0":"9869","35_0":"9869"},"variant_supplier_codes":{"37_0":"220V04000292B1PS","36_0":"220V04000292B1PM1","34_0":"220V04000292B1PM3","35_0":"220V04000292B1PM2"},"active_ids":{"one_37":["0"],"two_0":["37","36","34","35"],"one_36":["0"],"one_34":["0"],"one_35":["0"]},"variant_informations":{"37_0":{"additional_information":""},"36_0":{"additional_information":""},"34_0":{"additional_information":""},"35_0":{"additional_information":""}},"variant_stocks":{"37_0":"100","36_0":"100","34_0":"100","35_0":"100"}}

Type 20V Radiateur Décoratif 400x292 Blanc ∆t50°C=186 Kcal/h |∆t60°C= 234 Kcal/h | 4 Tuyeaux | Chauffe 2-4 m2

9.922,80 TL

5.457,54 TL
%45 réduit
AKS Seçenekleri

{"vat":20,"m_o_p":0,"variant_ids":{"37_0":"7069","36_0":"15304","34_0":"12559","35_0":"9814"},"variant_prices":{"37_0":5684.9375,"36_0":6564.9375,"34_0":6564.9375,"35_0":6564.9375},"variant_price_raws":{"37_0":5684.9375,"36_0":6564.9375,"34_0":6564.9375,"35_0":6564.9375},"buying_prices":{"37_0":"0","36_0":"0","34_0":"0","35_0":"0"},"not_discounted_prices":{"37_0":"10336.25","36_0":"11936.25","34_0":"11936.25","35_0":"11936.25"},"variant_supplier_codes":{"37_0":"220V04000292B2TS","36_0":"220V04000292B2TM1","34_0":"220V04000292B2TM3","35_0":"220V04000292B2TM2"},"active_ids":{"one_37":["0"],"two_0":["37","36","34","35"],"one_36":["0"],"one_34":["0"],"one_35":["0"]},"variant_informations":{"37_0":{"additional_information":""},"36_0":{"additional_information":""},"34_0":{"additional_information":""},"35_0":{"additional_information":""}},"variant_stocks":{"37_0":"100","36_0":"100","34_0":"100","35_0":"100"}}

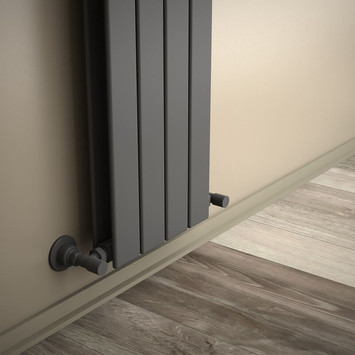

Type 20V Radiateur Décoratif 400x292 Anthracite ∆t50°C=186 Kcal/h |∆t60°C= 234 Kcal/h | 4 Tuyeaux | Chauffe 2-4 m2

12.403,50 TL

6.821,93 TL
%45 réduit
AKS Seçenekleri

{"vat":20,"m_o_p":0,"variant_ids":{"37_0":"7070","36_0":"15305","34_0":"12560","35_0":"9815"},"variant_prices":{"37_0":5684.9375,"36_0":6564.9375,"34_0":6564.9375,"35_0":6564.9375},"variant_price_raws":{"37_0":5684.9375,"36_0":6564.9375,"34_0":6564.9375,"35_0":6564.9375},"buying_prices":{"37_0":"0","36_0":"0","34_0":"0","35_0":"0"},"not_discounted_prices":{"37_0":"10336.25","36_0":"11936.25","34_0":"11936.25","35_0":"11936.25"},"variant_supplier_codes":{"37_0":"220V04000292B3MS","36_0":"220V04000292B3MM1","34_0":"220V04000292B3MM3","35_0":"220V04000292B3MM2"},"active_ids":{"one_37":["0"],"two_0":["37","36","34","35"],"one_36":["0"],"one_34":["0"],"one_35":["0"]},"variant_informations":{"37_0":{"additional_information":""},"36_0":{"additional_information":""},"34_0":{"additional_information":""},"35_0":{"additional_information":""}},"variant_stocks":{"37_0":"100","36_0":"100","34_0":"100","35_0":"100"}}

Type 20V Radiateur Décoratif 400x292 Noir mat ∆t50°C=186 Kcal/h |∆t60°C= 234 Kcal/h | 4 Tuyeaux | Chauffe 2-4 m2

12.403,50 TL

6.821,93 TL
%45 réduit
AKS Seçenekleri

{"vat":20,"m_o_p":0,"variant_ids":{"37_0":"7071","36_0":"15306","34_0":"12561","35_0":"9816"},"variant_prices":{"37_0":7550.95,"36_0":8430.95,"34_0":8430.95,"35_0":8430.95},"variant_price_raws":{"37_0":7550.95,"36_0":8430.95,"34_0":8430.95,"35_0":8430.95},"buying_prices":{"37_0":"0","36_0":"0","34_0":"0","35_0":"0"},"not_discounted_prices":{"37_0":"13729","36_0":"15329","34_0":"15329","35_0":"15329"},"variant_supplier_codes":{"37_0":"220V04000292K6FS","36_0":"220V04000292K6FM1","34_0":"220V04000292K6FM3","35_0":"220V04000292K6FM2"},"active_ids":{"one_37":["0"],"two_0":["37","36","34","35"],"one_36":["0"],"one_34":["0"],"one_35":["0"]},"variant_informations":{"37_0":{"additional_information":""},"36_0":{"additional_information":""},"34_0":{"additional_information":""},"35_0":{"additional_information":""}},"variant_stocks":{"37_0":"100","36_0":"100","34_0":"100","35_0":"100"}}

Type 20V Radiateur Décoratif 400x292 Effet bois ∆t50°C=186 Kcal/h |∆t60°C= 234 Kcal/h | 4 Tuyeaux | Chauffe 2-4 m2

16.474,80 TL

9.061,14 TL
