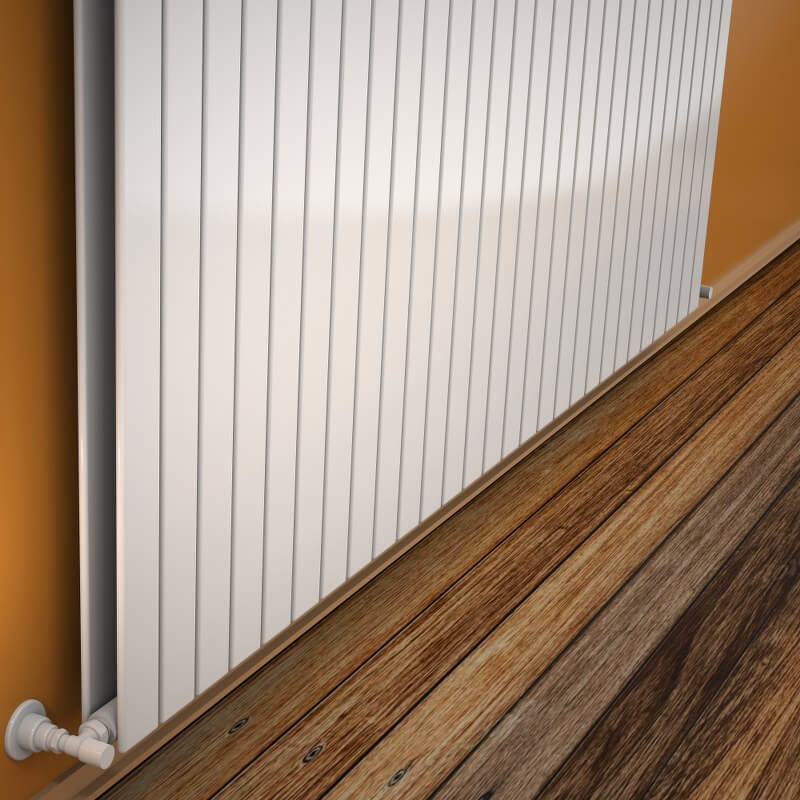

Type 20V Radiateur Décoratif 500x2068 Blanc

Name: Type 20V Radiateur Décoratif 500x2068 Blanc
SKU: 220V05002068B1PS
Price: 27423.66 TRY
Availability: InStock

Code De Produit : 220V05002068B1PS

Garantie : 10 Année

TAXES INCLUSES

Prix

49.861,20 TL

Prix réduit

27.423,66 TL

10 ans
Garantie

2000€ +
Livraison gratuite

Options de axe

Entrée Standard

Bas Milieu 50mm

Bas à gauche 50mm

Bas à droite 50mm

Choisissez la quantité

Ajouter Au Panier

Livraison Prévue

13.01.2025 (60 Jours)

Ajouter Un Commentaire Alerte Prix Ajouter À Ma Liste De Courses

Caractéristiques Du Produit
Téléchargements
Les Options De Paiement
Commentaires (0)

INFORMATIONS TECHNINQUES
• Model = 20V

• Matériel =Acier

• Hauteur=500 mm

• Largeur=1920 mm

• Couleur / Revêtement=Effet Bois

• Nombre de sections=26 Pièces

• Nombre total de profils=26+26 Pièces

• Dimensions des profils=70x11 mm

• Dimension du collecteur=38 mm

• Pression de service maximale=4,5 bar

• Profondeur du radiateur=58 mm

• Du mur au centre de l'entrée=64 mm

• Distance entre mur et surface devant =93 mm

• Dimension du filetage du radiateur=1/2"

• Volume d'eau=16,6 lt

• Weight=45,8 kg

• Poids brute=48,98 kg

• Dimension de carton=196x55x9,6 cm

TAPPING OPTIONS

• Entrée Standard1 =2010 mm

• Entrée Standard2 =450 mm

• Croix d'entrée standard =2010 mm

• Entrée du bas au milieu=50mm

• Entrée du bas a droite=50mm

• Entrée du bas a gauche=50mm

Puissance thérmique

Kcal / h

• Puissance thérmique75/65-20°?t=50°C = 1489 Kcal/h

• Puissance thérmique90/70-20° ?t=60°C=1877Kcal/h

• Puissance thérmique55/45-20° ?t=30°C=763 Kcal/h

Watts

• Puissance thérmique75/65-20°?t=50°C=1731 Watt

• Puissance thérmique90/70-20°?t=60°C=2182 Watt

• Puissance thérmique55/45-20°?t=30°C=887 Watt

Btu

• Puissance thérmique75/65-20°?t=50°C=5907 Btu

• Puissance thérmique90/70-20°?t=60°C=7443 Btu

• Puissance thérmique55/45-20°?t=30°C=3025 Btu
