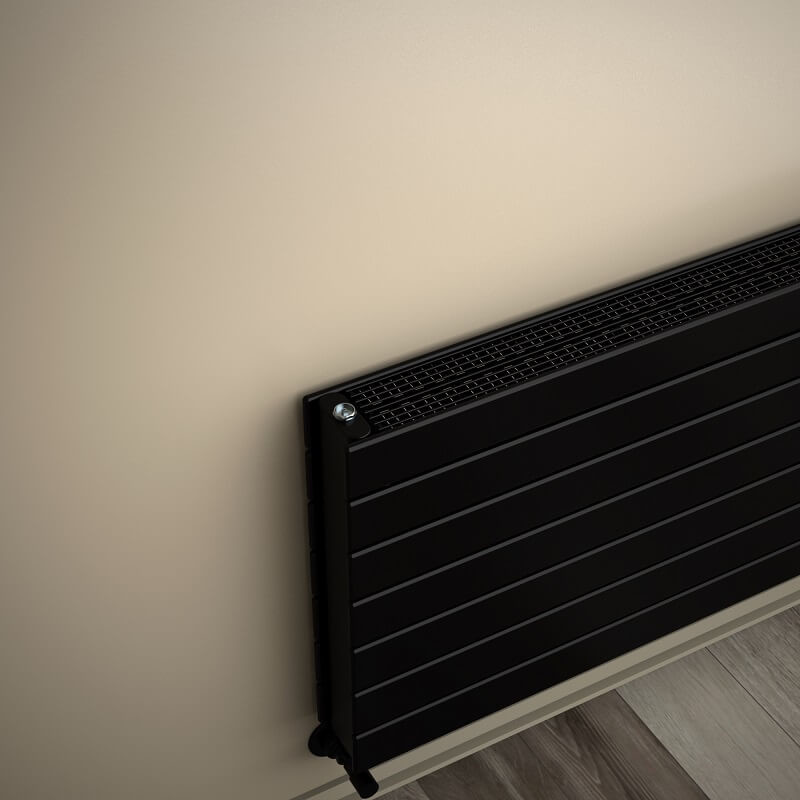

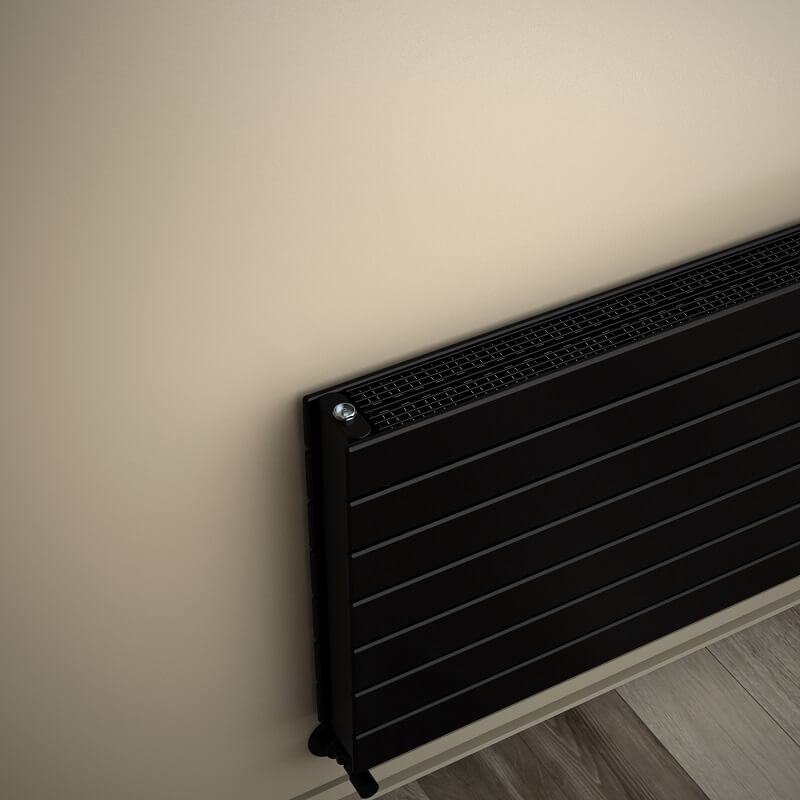

Type 22H Radiateur Décoratif 514x900 Noir mat

Name: Type 22H Radiateur Décoratif 514x900 Noir mat
SKU: 222H05140900B3MS
Price: 22568.70 TRY
Availability: InStock

Code De Produit : 222H05140900B3MS

Garantie : 10 Année

TAXES INCLUSES

Prix

41.034,00 TL

Prix réduit

22.568,70 TL

10 ans
Garantie

2000€ +
Livraison gratuite

{"vat":20,"m_o_p":0,"variant_ids":{"60_0":"8202","59_0":"10947","58_0":"13692","57_0":"16437","56_0":"17697","55_0":"18957","54_0":"20217","53_0":"21333","52_0":"21669"},"variant_prices":{"60_0":18807.25,"59_0":19687.25,"58_0":19687.25,"57_0":19687.25,"56_0":19687.25,"55_0":19687.25,"54_0":19687.25,"53_0":19687.25,"52_0":19687.25},"variant_price_raws":{"60_0":18807.25,"59_0":19687.25,"58_0":19687.25,"57_0":19687.25,"56_0":19687.25,"55_0":19687.25,"54_0":19687.25,"53_0":19687.25,"52_0":19687.25},"buying_prices":{"60_0":"0","59_0":"0","58_0":"0","57_0":"0","56_0":"0","55_0":"0","54_0":"0","53_0":"0","52_0":"0"},"not_discounted_prices":{"60_0":"34195","59_0":"35795","58_0":"35795","57_0":"35795","56_0":"35795","55_0":"35795","54_0":"35795","53_0":"35795","52_0":"35795"},"variant_supplier_codes":{"60_0":"222H05140900B3MS","59_0":"222H05140900B3MM2","58_0":"222H05140900B3MM3","57_0":"222H05140900B3MM1","56_0":"222H05140900B3MY0","55_0":"222H05140900B3MC1","54_0":"222H05140900B3MC2","53_0":"222H05140900B3MR2","52_0":"222H05140900B3ML2"},"active_ids":{"one_60":["0"],"two_0":["60","59","58","57","56","55","54","53","52"],"one_59":["0"],"one_58":["0"],"one_57":["0"],"one_56":["0"],"one_55":["0"],"one_54":["0"],"one_53":["0"],"one_52":["0"]},"variant_informations":{"60_0":{"additional_information":""},"59_0":{"additional_information":""},"58_0":{"additional_information":""},"57_0":{"additional_information":""},"56_0":{"additional_information":""},"55_0":{"additional_information":""},"54_0":{"additional_information":""},"53_0":{"additional_information":""},"52_0":{"additional_information":""}},"variant_stocks":{"60_0":"100","59_0":"99","58_0":"100","57_0":"100","56_0":"100","55_0":"100","54_0":"100","53_0":"100","52_0":"100"}}

Options de axe

Entrée Standard

Bas à droite 50mm

Bas à gauche 50mm

Bas Milieu 50mm

Côté-Bas Droite Bas Gauche

Croix-gauche en bas en haut à droite

Croisé en haut à gauche en bas à droite

514 Dek Radyator Yan-45cm Giriş Sağ

514 Dek Radyator Yan-45cm Giriş Sol

Choisissez la quantité

Ajouter Au Panier

Livraison Prévue

23.01.2025 (60 Jours)

Ajouter Un Commentaire Alerte Prix Ajouter À Ma Liste De Courses

Caractéristiques Du Produit
Téléchargements
Les Options De Paiement
Commentaires (0)

INFORMATIONS TECHNINQUES
• Model = 22H

• Matériel =Acier

• Hauteur=514 mm

• Largeur=800 mm

• Couleur / Revêtement=Matte Black RAL9005

• Nombre de sections=7 Pièces

• Nombre total de profils=7+7 Pièces

• Dimensions des profils=70x11 mm

• Dimension du collecteur=30x80 mm

• Pression de service maximale=4,5 bar

• Profondeur du radiateur=100 mm

• Du mur au centre de l'entrée=85 mm

• Distance entre mur et surface devant =135 mm

• Dimension du filetage du radiateur=1/2"

• Volume d'eau=7,3 lt

• Weight=25,8 kg

• Poids brute=27,34 kg

• Dimension de carton=57x86x13,6 cm

TAPPING OPTIONS

• Entrée Standard=750 mm

• Entrée du bas au milieu=50mm

• Entrée du bas a droite=50mm

• Entrée du bas a gauche=50mm

• Côtés / Bas Droite-Gauche=890mm

• Croix en haut à droite / en bas à gauche=890mm

• Croix haut-gauche / bas-droite=890mm

• Côté - droit=450mm

• Côté - gauche=450mm

Puissance thérmique

Kcal / h

• Puissance thérmique75/65-20°?t=50°C = 1039 Kcal/h

• Puissance thérmique90/70-20° ?t=60°C=1310Kcal/h

• Puissance thérmique55/45-20° ?t=30°C=532Kcal/h

Watts

• Puissance thérmique75/65-20°?t=50°C=1208 Watt

• Puissance thérmique90/70-20°?t=60°C=1523 Watt

• Puissance thérmique55/45-20°?t=30°C=619 Watt

Btu

• Puissance thérmique75/65-20°?t=50°C=4122 Btu

• Puissance thérmique90/70-20°?t=60°C=5194 Btu

• Puissance thérmique55/45-20°?t=30°C=2111 Btu
