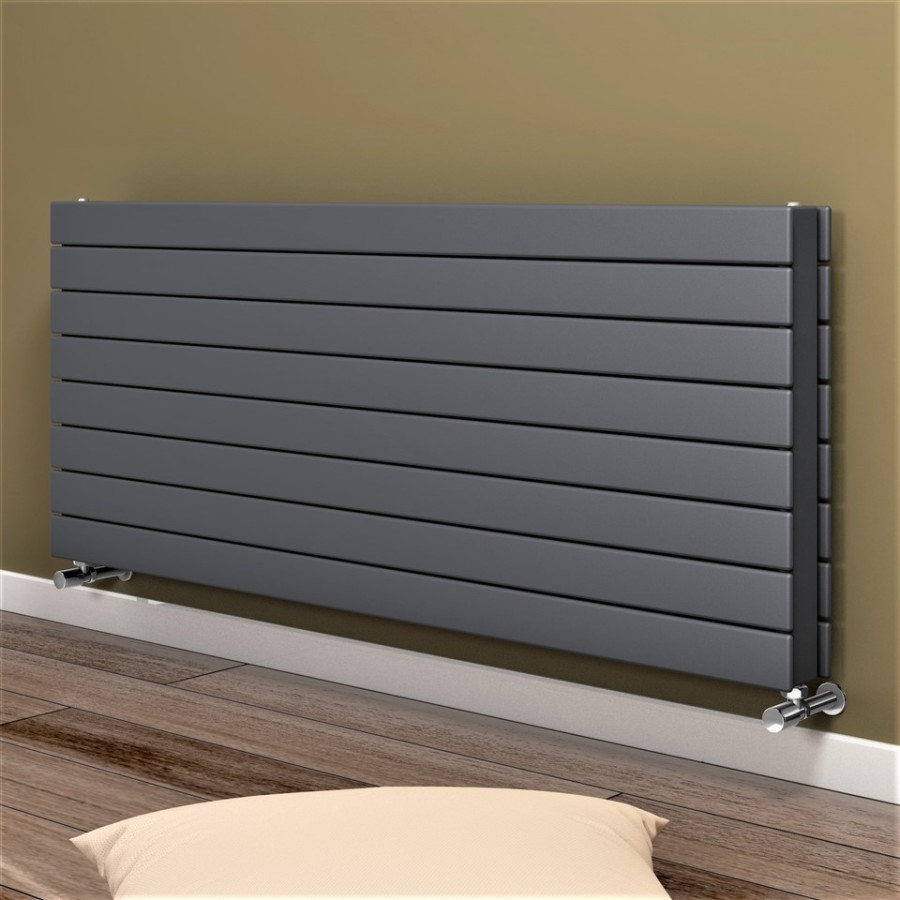

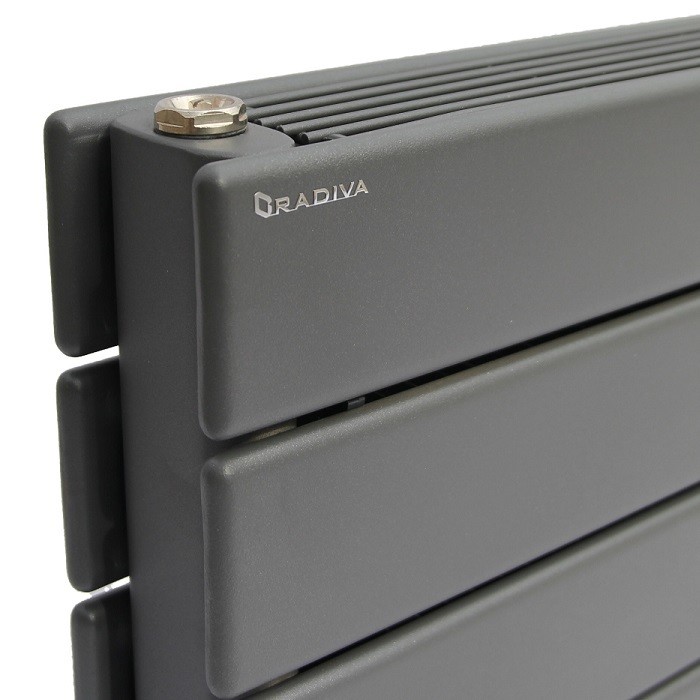

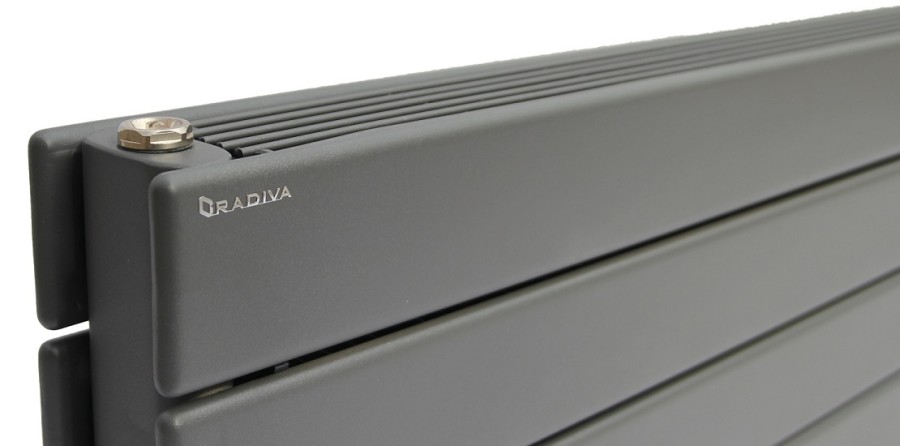

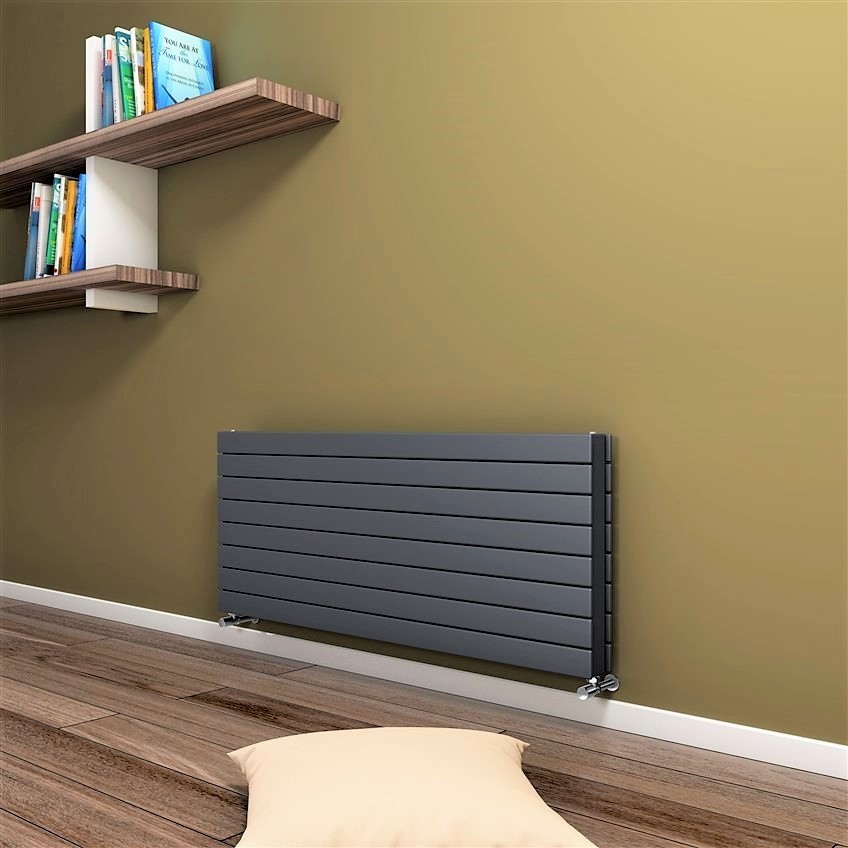

Type 22H Radiateur Décoratif 588x1400 Anthracite

Name: Type 22H Radiateur Décoratif 588x1400 Anthracite
SKU: 222H05881400B2TS
Price: 34620.30 TRY
Availability: InStock

Code De Produit : 222H05881400B2TS

Garantie : 10 Année

TAXES INCLUSES

Prix

62.946,00 TL

Prix réduit

34.620,30 TL

10 ans
Garantie

2000€ +
Livraison gratuite

{"vat":20,"m_o_p":0,"variant_ids":{"69_0":"4839","68_0":"4970","67_0":"5101","66_0":"5232","65_0":"5524","64_0":"5557","63_0":"5590","62_0":"5658","61_0":"5634"},"variant_prices":{"69_0":28850.25,"68_0":29730.25,"67_0":29730.25,"66_0":29730.25,"65_0":29730.25,"64_0":29730.25,"63_0":29730.25,"62_0":29730.25,"61_0":29730.25},"variant_price_raws":{"69_0":28850.25,"68_0":29730.25,"67_0":29730.25,"66_0":29730.25,"65_0":29730.25,"64_0":29730.25,"63_0":29730.25,"62_0":29730.25,"61_0":29730.25},"buying_prices":{"69_0":"0","68_0":"0","67_0":"0","66_0":"0","65_0":"0","64_0":"0","63_0":"0","62_0":"0","61_0":"0"},"not_discounted_prices":{"69_0":"52455","68_0":"54055","67_0":"54055","66_0":"54055","65_0":"54055","64_0":"54055","63_0":"54055","62_0":"54055","61_0":"54055"},"variant_supplier_codes":{"69_0":"222H05881400B2TS","68_0":"222H05881400B2TM1","67_0":"222H05881400B2TM3","66_0":"222H05881400B2TM2","65_0":"222H05881400B2TY0","64_0":"222H05881400B2TC1","63_0":"222H05881400B2TC2","62_0":"222H05881400B2TL4","61_0":"222H05881400B2TR4"},"active_ids":{"one_69":["0"],"two_0":["69","68","67","66","65","64","63","62","61"],"one_68":["0"],"one_67":["0"],"one_66":["0"],"one_65":["0"],"one_64":["0"],"one_63":["0"],"one_62":["0"],"one_61":["0"]},"variant_informations":{"69_0":{"additional_information":""},"68_0":{"additional_information":""},"67_0":{"additional_information":""},"66_0":{"additional_information":""},"65_0":{"additional_information":""},"64_0":{"additional_information":""},"63_0":{"additional_information":""},"62_0":{"additional_information":""},"61_0":{"additional_information":""}},"variant_stocks":{"69_0":"99","68_0":"100","67_0":"100","66_0":"99","65_0":"100","64_0":"100","63_0":"100","62_0":"100","61_0":"100"}}

Options de axe

Entrée Standard

Bas Milieu 50mm

Bas à gauche 50mm

Bas à droite 50mm

Côté-Bas Droite Bas Gauche

Croix-gauche en bas en haut à droite

Croisé en haut à gauche en bas à droite

588 Dek Radyator Yan-55cm Giriş Sol

588 Dek Radyator Yan-55cm Giriş Sağ

Choisissez la quantité

Ajouter Au Panier

Livraison Prévue

21.01.2025 (60 Jours)

Ajouter Un Commentaire Alerte Prix Ajouter À Ma Liste De Courses

Caractéristiques Du Produit
Téléchargements
Les Options De Paiement
Commentaires (0)

INFORMATIONS TECHNINQUES
• Model = 22H

• Matériel =Acier

• Hauteur=588 mm

• Largeur=1300 mm

• Couleur / Revêtement=Anthracite

• Nombre de sections=8 Pièces

• Nombre total de profils=8+8 Pièces

• Dimensions des profils=70x11 mm

• Dimension du collecteur=30x80 mm

• Pression de service maximale=4,5 bar

• Profondeur du radiateur=100 mm

• Du mur au centre de l'entrée=85 mm

• Distance entre mur et surface devant =135 mm

• Dimension du filetage du radiateur=1/2"

• Volume d'eau=12,3 lt

• Weight=46,9 kg

• Poids brute=49,5 kg

• Dimension de carton=64x136x13,6 cm

TAPPING OPTIONS

• Entrée Standard=1250 mm

• Entrée du bas au milieu=50mm

• Entrée du bas a droite=50mm

• Entrée du bas a gauche=50mm

• Côtés / Bas Droite-Gauche=1390mm

• Croix en haut à droite / en bas à gauche=1390mm

• Croix haut-gauche / bas-droite=1390mm

• Côté - droit=550mm

• Côté - gauche=550mm

Puissance thérmique

Kcal / h

• Puissance thérmique75/65-20°?t=50°C = 1873 Kcal/h

• Puissance thérmique90/70-20° ?t=60°C=2360Kcal/h

• Puissance thérmique55/45-20° ?t=30°C=959Kcal/h

Watts

• Puissance thérmique75/65-20°?t=50°C=2177 Watt

• Puissance thérmique90/70-20°?t=60°C=2744 Watt

• Puissance thérmique55/45-20°?t=30°C=1115 Watt

Btu

• Puissance thérmique75/65-20°?t=50°C=7428 Btu

• Puissance thérmique90/70-20°?t=60°C=9360 Btu

• Puissance thérmique55/45-20°?t=30°C=3804 Btu
