%45 réduit

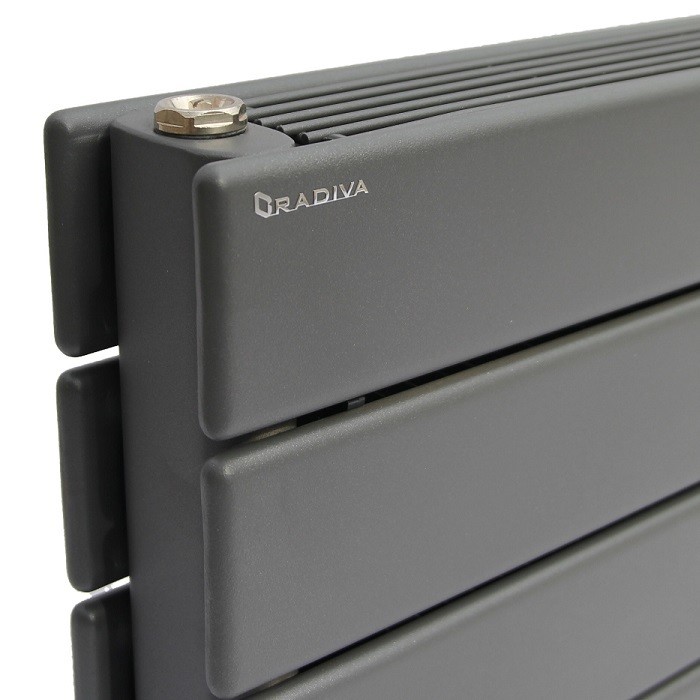

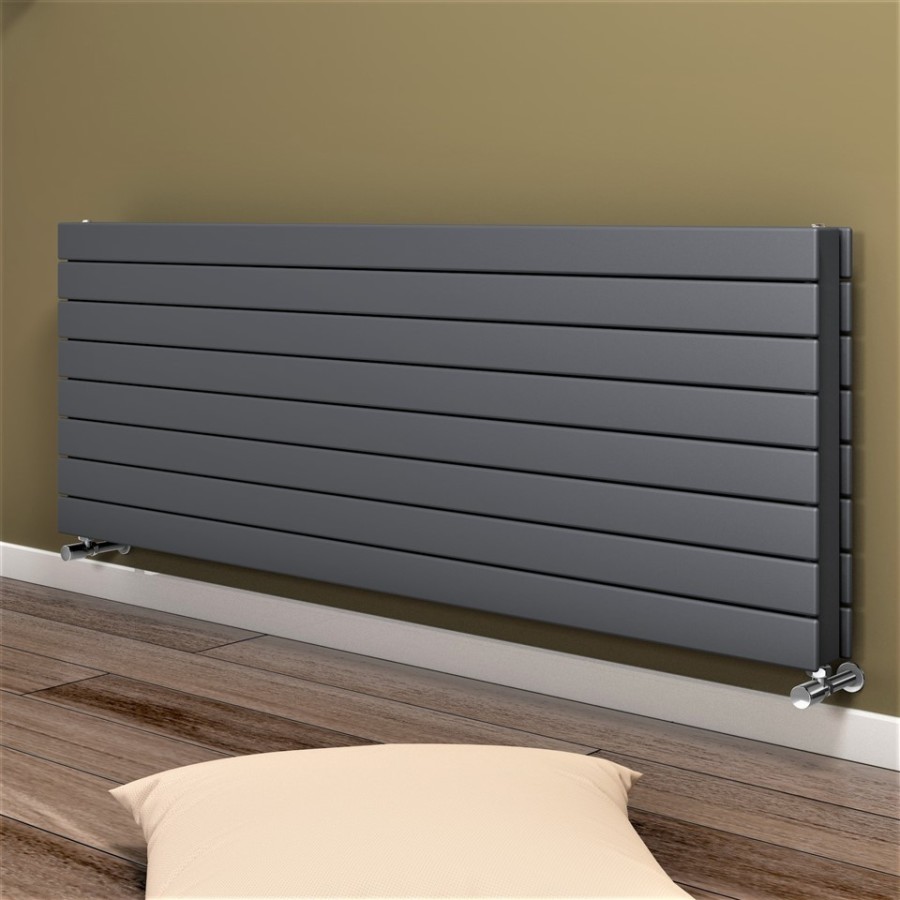

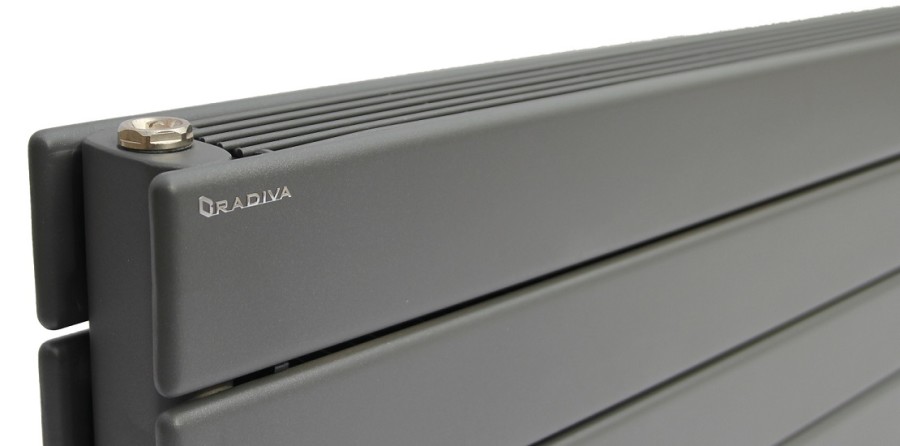

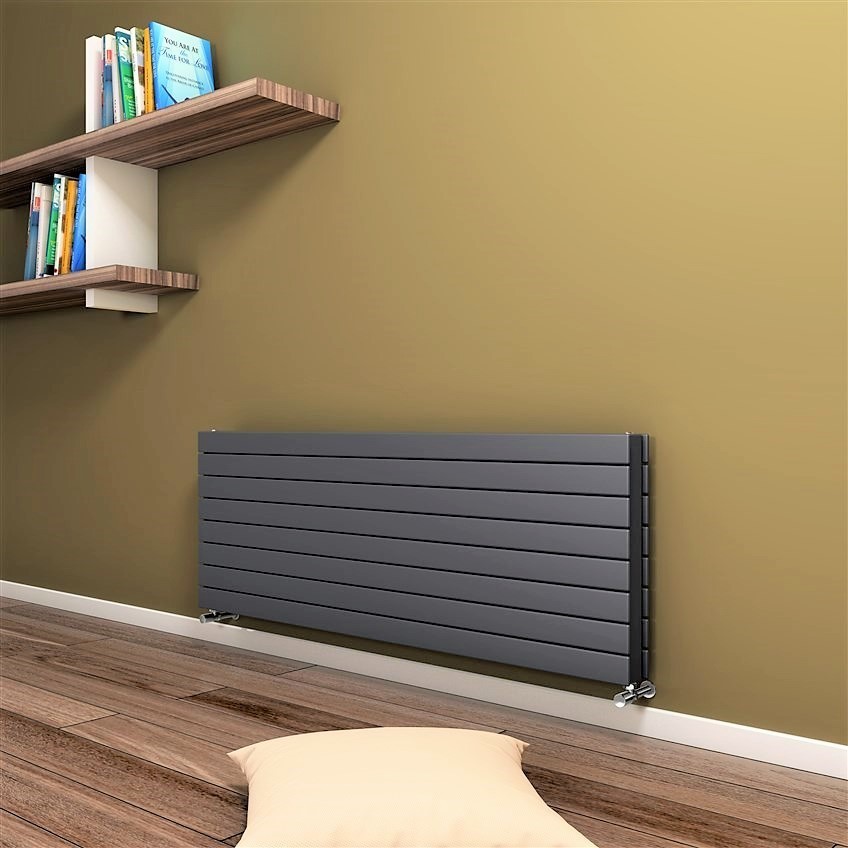

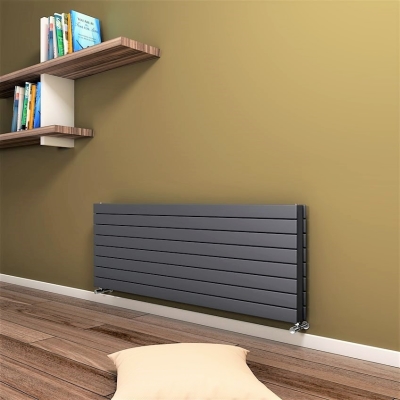

Type 22H Radiateur Décoratif 588x1600 Anthracite

Name: Type 22H Radiateur Décoratif 588x1600 Anthracite
SKU: 222H05881600B2TS
Price: 38486.25 TRY
Availability: InStock

Code De Produit : 222H05881600B2TS

Garantie : 10 Année

TAXES INCLUSES

Prix

69.975,00 TL

Prix réduit

38.486,25 TL

10 ans
Garantie

2000€ +
Livraison gratuite

{"vat":20,"m_o_p":0,"variant_ids":{"69_0":"4838","68_0":"4969","67_0":"5100","66_0":"5231","65_0":"5523","64_0":"5556","63_0":"5589","62_0":"5657","61_0":"5633"},"variant_prices":{"69_0":32071.875,"68_0":32951.875,"67_0":32951.875,"66_0":32951.875,"65_0":32951.875,"64_0":32951.875,"63_0":32951.875,"62_0":32951.875,"61_0":32951.875},"variant_price_raws":{"69_0":32071.875,"68_0":32951.875,"67_0":32951.875,"66_0":32951.875,"65_0":32951.875,"64_0":32951.875,"63_0":32951.875,"62_0":32951.875,"61_0":32951.875},"buying_prices":{"69_0":"0","68_0":"0","67_0":"0","66_0":"0","65_0":"0","64_0":"0","63_0":"0","62_0":"0","61_0":"0"},"not_discounted_prices":{"69_0":"58312.5","68_0":"59912.5","67_0":"59912.5","66_0":"59912.5","65_0":"59912.5","64_0":"59912.5","63_0":"59912.5","62_0":"59912.5","61_0":"59912.5"},"variant_supplier_codes":{"69_0":"222H05881600B2TS","68_0":"222H05881600B2TM1","67_0":"222H05881600B2TM3","66_0":"222H05881600B2TM2","65_0":"222H05881600B2TY0","64_0":"222H05881600B2TC1","63_0":"222H05881600B2TC2","62_0":"222H05881600B2TL4","61_0":"222H05881600B2TR4"},"active_ids":{"one_69":["0"],"two_0":["69","68","67","66","65","64","63","62","61"],"one_68":["0"],"one_67":["0"],"one_66":["0"],"one_65":["0"],"one_64":["0"],"one_63":["0"],"one_62":["0"],"one_61":["0"]},"variant_informations":{"69_0":{"additional_information":""},"68_0":{"additional_information":""},"67_0":{"additional_information":""},"66_0":{"additional_information":""},"65_0":{"additional_information":""},"64_0":{"additional_information":""},"63_0":{"additional_information":""},"62_0":{"additional_information":""},"61_0":{"additional_information":""}},"variant_stocks":{"69_0":"98","68_0":"100","67_0":"100","66_0":"100","65_0":"100","64_0":"100","63_0":"100","62_0":"100","61_0":"99"}}

Options de axe

Entrée Standard

Bas Milieu 50mm

Bas à gauche 50mm

Bas à droite 50mm

Côté-Bas Droite Bas Gauche

Croix-gauche en bas en haut à droite

Croisé en haut à gauche en bas à droite

588 Dek Radyator Yan-55cm Giriş Sol

588 Dek Radyator Yan-55cm Giriş Sağ

Choisissez la quantité

Ajouter Au Panier

Livraison Prévue

24.01.2025 (60 Jours)

Ajouter Un Commentaire Alerte Prix Ajouter À Ma Liste De Courses

Caractéristiques Du Produit
Téléchargements
Les Options De Paiement
Commentaires (0)

INFORMATIONS TECHNINQUES
• Model = 22H

• Matériel =Acier

• Hauteur=588 mm

• Largeur=1500 mm

• Couleur / Revêtement=Anthracite

• Nombre de sections=8 Pièces

• Nombre total de profils=8+8 Pièces

• Dimensions des profils=70x11 mm

• Dimension du collecteur=30x80 mm

• Pression de service maximale=4,5 bar

• Profondeur du radiateur=100 mm

• Du mur au centre de l'entrée=85 mm

• Distance entre mur et surface devant =135 mm

• Dimension du filetage du radiateur=1/2"

• Volume d'eau=13,9 lt

• Weight=53,8 kg

• Poids brute=56,75 kg

• Dimension de carton=64x156x13,6 cm

TAPPING OPTIONS

• Entrée Standard=1450 mm

• Entrée du bas au milieu=50mm

• Entrée du bas a droite=50mm

• Entrée du bas a gauche=50mm

• Côtés / Bas Droite-Gauche=1590mm

• Croix en haut à droite / en bas à gauche=1590mm

• Croix haut-gauche / bas-droite=1590mm

• Côté - droit=550mm

• Côté - gauche=550mm

Puissance thérmique

Kcal / h

• Puissance thérmique75/65-20°?t=50°C = 2161 Kcal/h

• Puissance thérmique90/70-20° ?t=60°C=2723Kcal/h

• Puissance thérmique55/45-20° ?t=30°C=1107Kcal/h

Watts

• Puissance thérmique75/65-20°?t=50°C=2512 Watt

• Puissance thérmique90/70-20°?t=60°C=3166 Watt

• Puissance thérmique55/45-20°?t=30°C=1287 Watt

Btu

• Puissance thérmique75/65-20°?t=50°C=8571 Btu

• Puissance thérmique90/70-20°?t=60°C=10800 Btu

• Puissance thérmique55/45-20°?t=30°C=4389 Btu

Informations Sur La Garantie

:

10 Années

Livraison Info

:

60 Jours

Les Étiquettes Des Produits

dizayn radyatör , dizayn panel radyatör fiyatları , dizayn panel radyatör , radyatör modelleri , radyatör fiyatları , radyatör petek , panel radyatör , panel radyatör modelleri , radyatör ölçüleri , radyatörler
