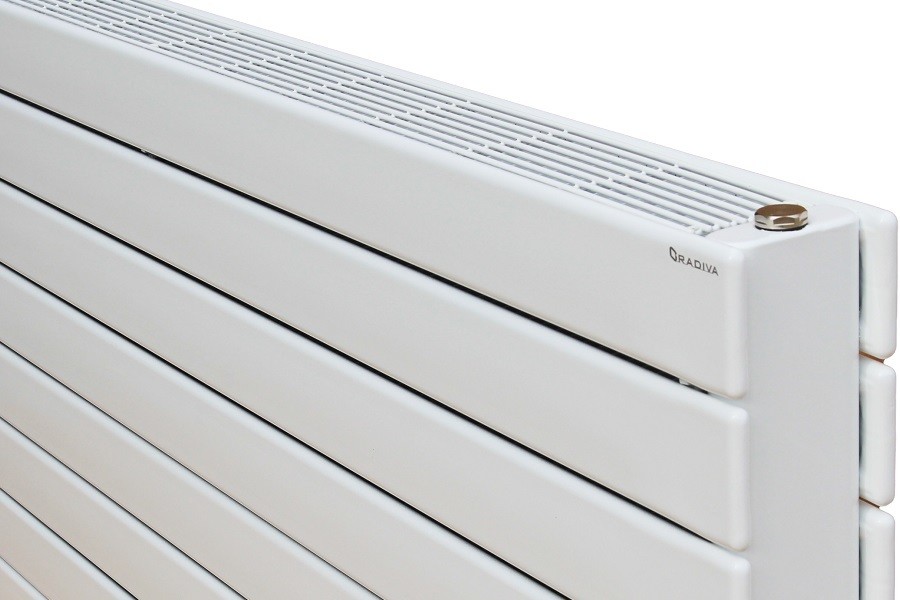

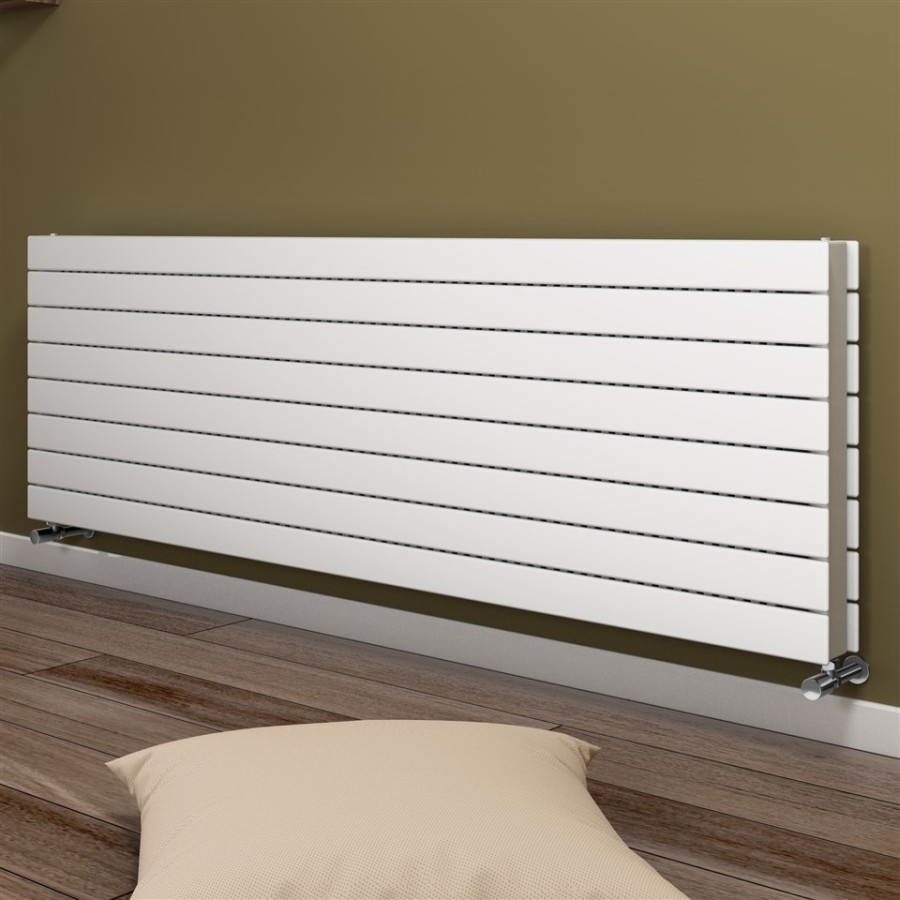

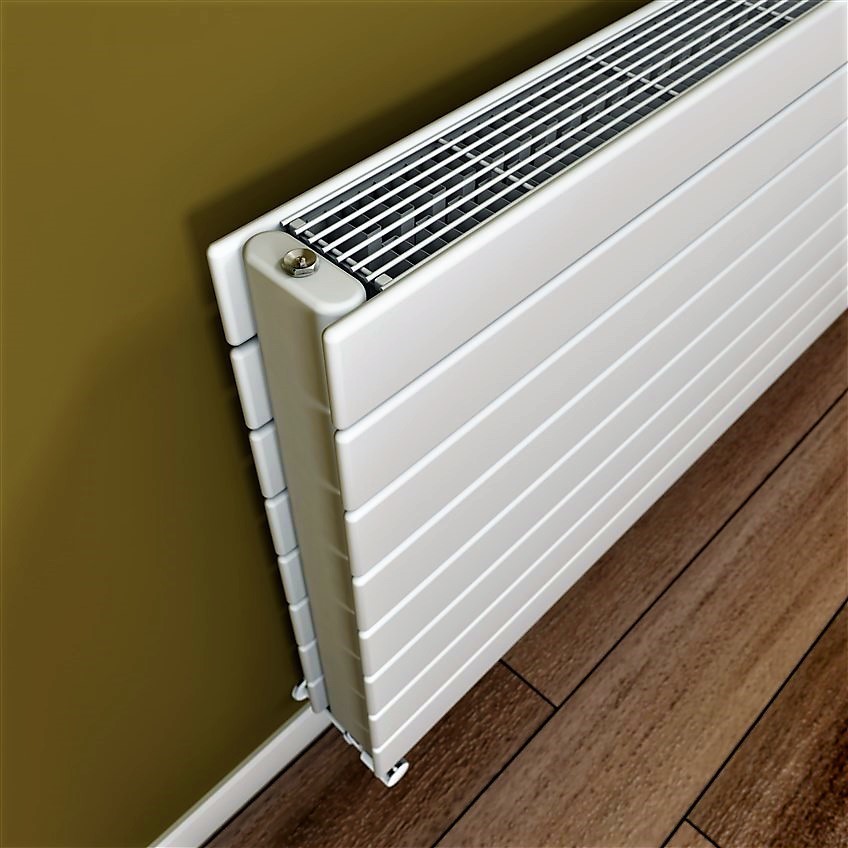

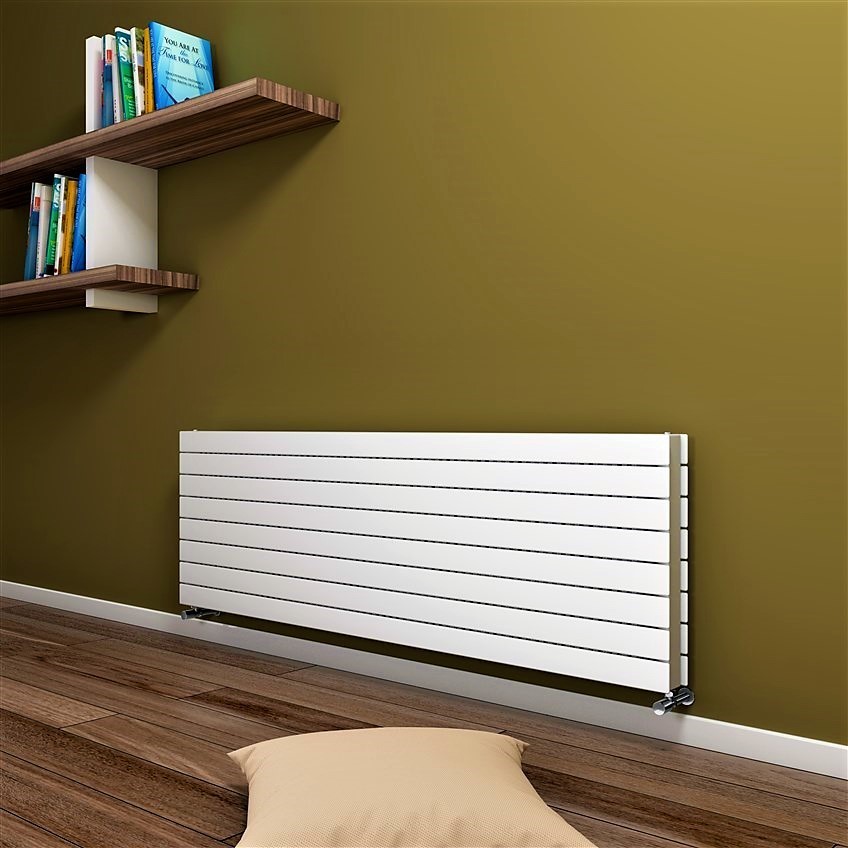

Type 22H Radiateur Décoratif 588x1800 Blanc

Name: Type 22H Radiateur Décoratif 588x1800 Blanc
SKU: 222H05881800B1PS
Price: 33881.10 TRY
Availability: InStock

Code De Produit : 222H05881800B1PS

Garantie : 10 Année

TAXES INCLUSES

Prix

61.602,00 TL

Prix réduit

33.881,10 TL

10 ans
Garantie

2000€ +
Livraison gratuite

{"vat":20,"m_o_p":0,"variant_ids":{"69_0":"4842","68_0":"4973","67_0":"5104","66_0":"5235","65_0":"5527","64_0":"5560","63_0":"5593","62_0":"5661","61_0":"5637"},"variant_prices":{"69_0":28234.25,"68_0":29114.25,"67_0":29114.25,"66_0":29114.25,"65_0":29114.25,"64_0":29114.25,"63_0":29114.25,"62_0":29114.25,"61_0":29114.25},"variant_price_raws":{"69_0":28234.25,"68_0":29114.25,"67_0":29114.25,"66_0":29114.25,"65_0":29114.25,"64_0":29114.25,"63_0":29114.25,"62_0":29114.25,"61_0":29114.25},"buying_prices":{"69_0":"0","68_0":"0","67_0":"0","66_0":"0","65_0":"0","64_0":"0","63_0":"0","62_0":"0","61_0":"0"},"not_discounted_prices":{"69_0":"51335","68_0":"52935","67_0":"52935","66_0":"52935","65_0":"52935","64_0":"52935","63_0":"52935","62_0":"52935","61_0":"52935"},"variant_supplier_codes":{"69_0":"222H05881800B1PS","68_0":"222H05881800B1PM1","67_0":"222H05881800B1PM3","66_0":"222H05881800B1PM2","65_0":"222H05881800B1PY0","64_0":"222H05881800B1PC1","63_0":"222H05881800B1PC2","62_0":"222H05881800B1PL4","61_0":"222H05881800B1PR4"},"active_ids":{"one_69":["0"],"two_0":["69","68","67","66","65","64","63","62","61"],"one_68":["0"],"one_67":["0"],"one_66":["0"],"one_65":["0"],"one_64":["0"],"one_63":["0"],"one_62":["0"],"one_61":["0"]},"variant_informations":{"69_0":{"additional_information":""},"68_0":{"additional_information":""},"67_0":{"additional_information":""},"66_0":{"additional_information":""},"65_0":{"additional_information":""},"64_0":{"additional_information":""},"63_0":{"additional_information":""},"62_0":{"additional_information":""},"61_0":{"additional_information":""}},"variant_stocks":{"69_0":"100","68_0":"100","67_0":"100","66_0":"100","65_0":"100","64_0":"100","63_0":"100","62_0":"100","61_0":"99"}}

Options de axe

Entrée Standard

Bas Milieu 50mm

Bas à gauche 50mm

Bas à droite 50mm

Côté-Bas Droite Bas Gauche

Croix-gauche en bas en haut à droite

Croisé en haut à gauche en bas à droite

588 Dek Radyator Yan-55cm Giriş Sol

588 Dek Radyator Yan-55cm Giriş Sağ

Choisissez la quantité

Ajouter Au Panier

Livraison Prévue

21.01.2025 (60 Jours)

Ajouter Un Commentaire Alerte Prix Ajouter À Ma Liste De Courses

Caractéristiques Du Produit
Téléchargements
Les Options De Paiement
Commentaires (0)

INFORMATIONS TECHNINQUES
• Model = 22H

• Matériel =Acier

• Hauteur=588 mm

• Largeur=1700 mm

• Couleur / Revêtement=Blanc vif RAL9016

• Nombre de sections=8 Pièces

• Nombre total de profils=8+8 Pièces

• Dimensions des profils=70x11 mm

• Dimension du collecteur=30x80 mm

• Pression de service maximale=4,5 bar

• Profondeur du radiateur=100 mm

• Du mur au centre de l'entrée=85 mm

• Distance entre mur et surface devant =135 mm

• Dimension du filetage du radiateur=1/2"

• Volume d'eau=15,5 lt

• Weight=60,8 kg

• Poids brute=64,1 kg

• Dimension de carton=64x176x13,6 cm

TAPPING OPTIONS

• Entrée Standard=1650 mm

• Entrée du bas au milieu=50mm

• Entrée du bas a droite=50mm

• Entrée du bas a gauche=50mm

• Côtés / Bas Droite-Gauche=1790mm

• Croix en haut à droite / en bas à gauche=1790mm

• Croix haut-gauche / bas-droite=1790mm

• Côté - droit=550mm

• Côté - gauche=550mm

Puissance thérmique

Kcal / h

• Puissance thérmique75/65-20°?t=50°C = 2449 Kcal/h

• Puissance thérmique90/70-20° ?t=60°C=3086Kcal/h

• Puissance thérmique55/45-20° ?t=30°C=1254Kcal/h

Watts

• Puissance thérmique75/65-20°?t=50°C=2847 Watt

• Puissance thérmique90/70-20°?t=60°C=3588 Watt

• Puissance thérmique55/45-20°?t=30°C=1458 Watt

Btu

• Puissance thérmique75/65-20°?t=50°C=9714 Btu

• Puissance thérmique90/70-20°?t=60°C=12240 Btu

• Puissance thérmique55/45-20°?t=30°C=4974 Btu
