%45 réduit

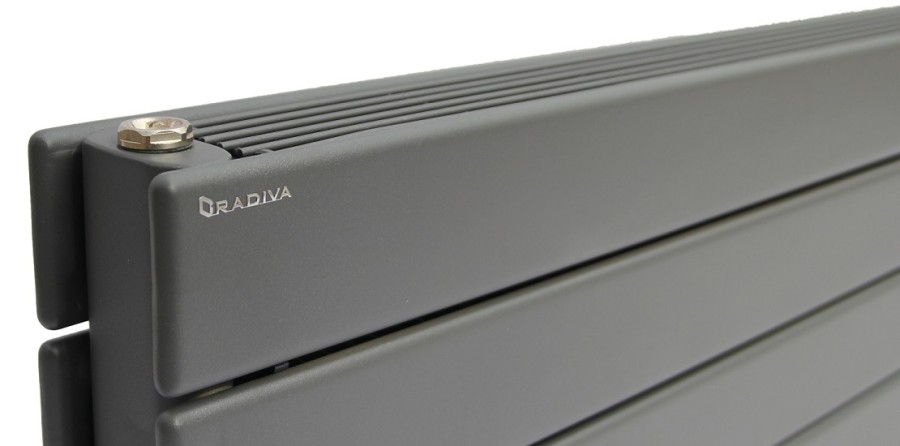

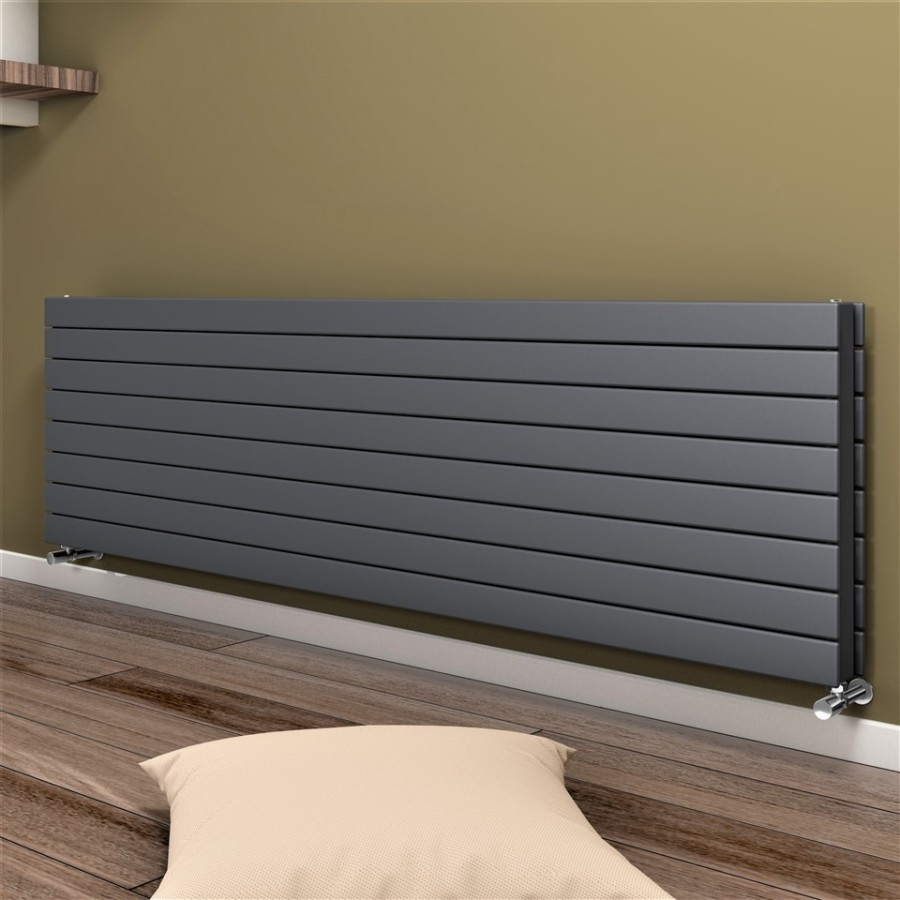

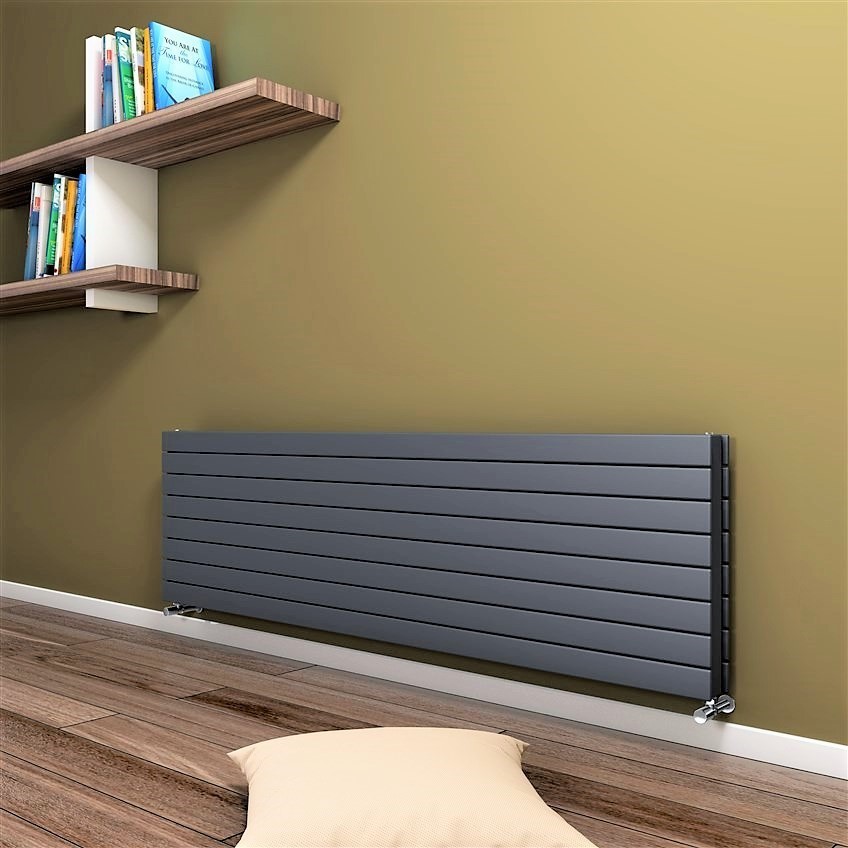

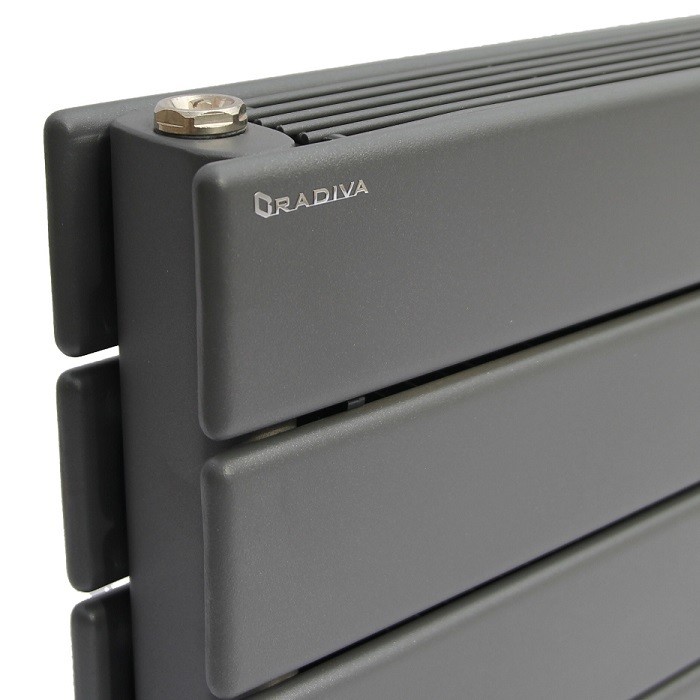

Type 22H Radiateur Décoratif 588x2000 Anthracite

Name: Type 22H Radiateur Décoratif 588x2000 Anthracite
SKU: 222H05882000B2TS
Price: 46160.40 TRY
Availability: InStock

Code De Produit : 222H05882000B2TS

Garantie : 10 Année

TAXES INCLUSES

Prix

83.928,00 TL

Prix réduit

46.160,40 TL

10 ans
Garantie

2000€ +
Livraison gratuite

{"vat":20,"m_o_p":0,"variant_ids":{"69_0":"4836","68_0":"4967","67_0":"5098","66_0":"5229","65_0":"5521","64_0":"5554","63_0":"5587","62_0":"5655","61_0":"5631"},"variant_prices":{"69_0":38467,"68_0":39347,"67_0":39347,"66_0":39347,"65_0":39347,"64_0":39347,"63_0":39347,"62_0":39347,"61_0":39347},"variant_price_raws":{"69_0":38467,"68_0":39347,"67_0":39347,"66_0":39347,"65_0":39347,"64_0":39347,"63_0":39347,"62_0":39347,"61_0":39347},"buying_prices":{"69_0":"0","68_0":"0","67_0":"0","66_0":"0","65_0":"0","64_0":"0","63_0":"0","62_0":"0","61_0":"0"},"not_discounted_prices":{"69_0":"69940","68_0":"71540","67_0":"71540","66_0":"71540","65_0":"71540","64_0":"71540","63_0":"71540","62_0":"71540","61_0":"71540"},"variant_supplier_codes":{"69_0":"222H05882000B2TS","68_0":"222H05882000B2TM1","67_0":"222H05882000B2TM3","66_0":"222H05882000B2TM2","65_0":"222H05882000B2TY0","64_0":"222H05882000B2TC1","63_0":"222H05882000B2TC2","62_0":"222H05882000B2TL4","61_0":"222H05882000B2TR4"},"active_ids":{"one_69":["0"],"two_0":["69","68","67","66","65","64","63","62","61"],"one_68":["0"],"one_67":["0"],"one_66":["0"],"one_65":["0"],"one_64":["0"],"one_63":["0"],"one_62":["0"],"one_61":["0"]},"variant_informations":{"69_0":{"additional_information":""},"68_0":{"additional_information":""},"67_0":{"additional_information":""},"66_0":{"additional_information":""},"65_0":{"additional_information":""},"64_0":{"additional_information":""},"63_0":{"additional_information":""},"62_0":{"additional_information":""},"61_0":{"additional_information":""}},"variant_stocks":{"69_0":"99","68_0":"100","67_0":"100","66_0":"100","65_0":"100","64_0":"100","63_0":"100","62_0":"100","61_0":"99"}}

Options de axe

Entrée Standard

Bas Milieu 50mm

Bas à gauche 50mm

Bas à droite 50mm

Côté-Bas Droite Bas Gauche

Croix-gauche en bas en haut à droite

Croisé en haut à gauche en bas à droite

588 Dek Radyator Yan-55cm Giriş Sol

588 Dek Radyator Yan-55cm Giriş Sağ

Choisissez la quantité

Ajouter Au Panier

Livraison Prévue

21.01.2025 (60 Jours)

Ajouter Un Commentaire Alerte Prix Ajouter À Ma Liste De Courses

Caractéristiques Du Produit
Téléchargements
Les Options De Paiement
Commentaires (0)

INFORMATIONS TECHNINQUES
• Model = 22H

• Matériel =Acier

• Hauteur=588 mm

• Largeur=1900 mm

• Couleur / Revêtement=Anthracite

• Nombre de sections=8 Pièces

• Nombre total de profils=8+8 Pièces

• Dimensions des profils=70x11 mm

• Dimension du collecteur=30x80 mm

• Pression de service maximale=4,5 bar

• Profondeur du radiateur=100 mm

• Du mur au centre de l'entrée=85 mm

• Distance entre mur et surface devant =135 mm

• Dimension du filetage du radiateur=1/2"

• Volume d'eau=17,1 lt

• Weight=67,7 kg

• Poids brute=71,36 kg

• Dimension de carton=64x196x13,6 cm

TAPPING OPTIONS

• Entrée Standard=1850 mm

• Entrée du bas au milieu=50mm

• Entrée du bas a droite=50mm

• Entrée du bas a gauche=50mm

• Côtés / Bas Droite-Gauche=1990mm

• Croix en haut à droite / en bas à gauche=1990mm

• Croix haut-gauche / bas-droite=1990mm

• Côté - droit=550mm

• Côté - gauche=550mm

Puissance thérmique

Kcal / h

• Puissance thérmique75/65-20°?t=50°C = 2737 Kcal/h

• Puissance thérmique90/70-20° ?t=60°C=3449Kcal/h

• Puissance thérmique55/45-20° ?t=30°C=1402Kcal/h

Watts

• Puissance thérmique75/65-20°?t=50°C=3182 Watt

• Puissance thérmique90/70-20°?t=60°C=4010 Watt

• Puissance thérmique55/45-20°?t=30°C=1630 Watt

Btu

• Puissance thérmique75/65-20°?t=50°C=10857 Btu

• Puissance thérmique90/70-20°?t=60°C=13680 Btu

• Puissance thérmique55/45-20°?t=30°C=5559 Btu

Informations Sur La Garantie

:

10 Années

Livraison Info

:

60 Jours
