TECHNICAL INFORMATION

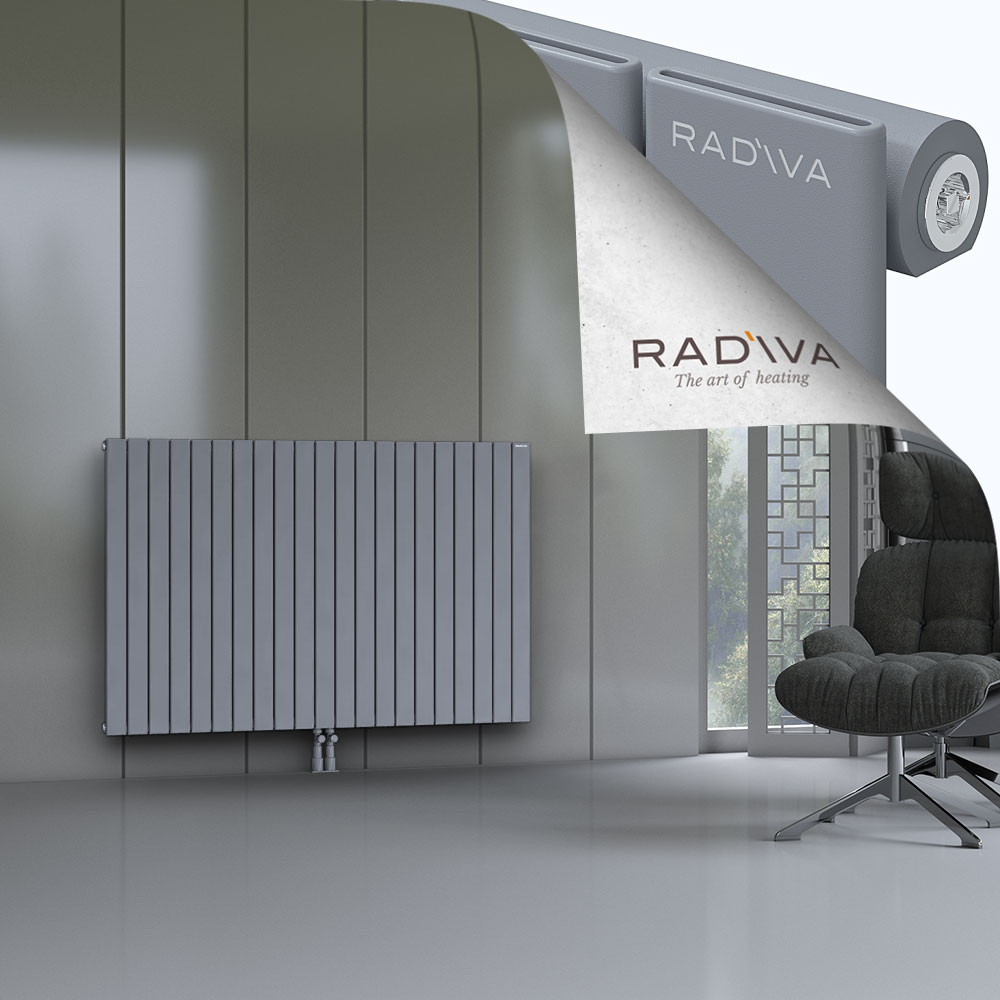

• Model = Arno
• Material = Aluminium
• Height = 1000 mm
• Width = 1550 mm
• Color / Coating = Grey (Contact Your Sales Representative for Special Color Requests, Chrome Covers are Used in Special Color Aluminium Radiators)• Paint Surface = Texture
• Number of Sections = 21 Pieces
• Total Number of Profiles (Front + Back) = 21+0 Pieces
• Profile Dimension = 70x11 mm
• Maximum Working Pressure = 10 bar
• Radiator Depth = 48 mm
• Wall to Center of Inlet = 45 mm
• Wall Projection Distance = 76,5 mm
• Radiator Thread Dimension = 1/2"
• Water Volume = 5,04 lt
• Weight = 26,34 kg
• Boxed Weight = 32,25 kg
• Box Size = 106x162x8 cmTapping Options
Choose Your Radiator Before Adding To Cart!
Tapping Distance stands for the distance between the Water Inlet and Outlet.
The compatibility of the radiator you plan to buy with your existing installation is very important.
For this reason, we manufacture our radiators with many Tapping options in order to adapt to all existing installation connection types in your country.
If your installation has not been done yet, choose "Standard Entry" in terms of delivery time!
Tapping Options Are Just Above The Product Price.
Click for Radiator Installation Guide!
When you choose the Standard Input Option while adding your Aluminum Radiator to the Basket, you can connect it to your installation with all the connection types listed below and the title of which is Standard Input (1-2-3-4-5-6).
You or your plumber (the plumbers are experienced in this field) should simply place the Water Diverter, which we have given to you free of charge in the box of your radiator, between the 1st and 2nd sections according to the Water Inlet Direction, according to your Standard Connection Type.
In the diagrams below, the Water Diverter is Shown as a Black SQUARE.
You do not need to apply any diverter in the assembly forms that you do not see a diverter in the diagram.• Standard Entry1 = 1640 mm (Bottom Left Hot Water Inlet - Bottom Right Cold Water Outlet)
• Standard Entry2 = 1640 mm (Bottom Right Hot Water Inlet - Bottom Left Cold Water Outlet)
• Standard Entry3 = 1640 mm (Top Left Hot Water Inlet - Bottom Right Cold Water Outlet)
• Standard Entry4 = 1640 mm (Top Right Hot Water Inlet - Bottom Left Cold Water Outlet)
• Standard Entry5 = 950 mm (Top Left Hot Water Inlet - Bottom Left Cold Water Outlet)
• Standard Entry6 = 950 mm (Top Right Hot Water Inlet - Bottom Right Cold Water Outlet)
• Bottom Middle Entrance = 50 mm ( Bottom Middle Side by Side Hot Water Inlet, Cold Water Outlet)
• Bottom Right Entrance = 50 mm ( Bottom Right Side by Side Hot Water Inlet, Cold Water Outlet)
• Bottom Left Entrance = 50 mm ( Bottom Left Side Side Hot Water Inlet, Cold Water Outlet)Heat Output
Kcal/h
• Heat Output 75/65-20° ∆t=50°C = 1486 Kcal/h
• Heat Output 90/70-20° ∆t=60°C = 1872 Kcal/h
• Heat Output 55/45-20° ∆t=30°C = 761 Kcal/h
Watt
• Heat Output 75/65-20° ∆t=50°C = 1728 Watt
• Heat Output 90/70-20° ∆t=60°C = 2177 Watt
• Heat Output 55/45-20° ∆t=30°C = 885 Watt
Btu
• Heat Output 75/65-20° ∆t=50°C = 5896 Btu
• Heat Output 90/70-20° ∆t=60°C = 7429 Btu
• Heat Output 55/45-20° ∆t=30°C = 3020 Btu
ALUMINIUM RADIATOR WALL MOUNTING DIAGRAM
Aluminum Radiators are lighter than conventional panel radiators or steel decorative radiators and are easier to install on drywall surfaces.
Before making your plasterboard wall application, you need to prepare the drywall vertical profiles in suitable width for our radiators.
The Aluminum Radiator you are viewing now has a Height 1000 mm (represented by H in the Diagram), Width is 1550 mm. (Represented by W in the diagram.)
Accordingly, the C value you will see in the diagram above is 1375 mm and the E value is 890 mm.Warranty:5 YearsDelivery Information:28 Day
-
