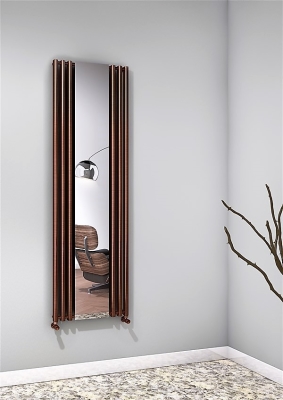

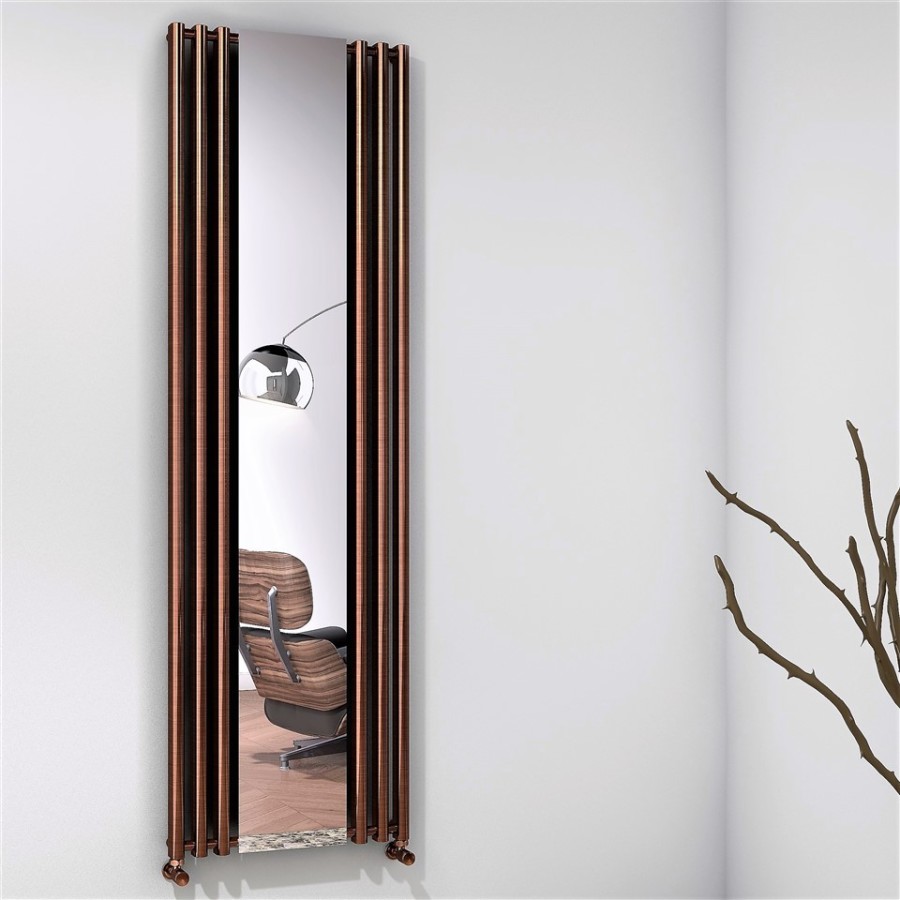

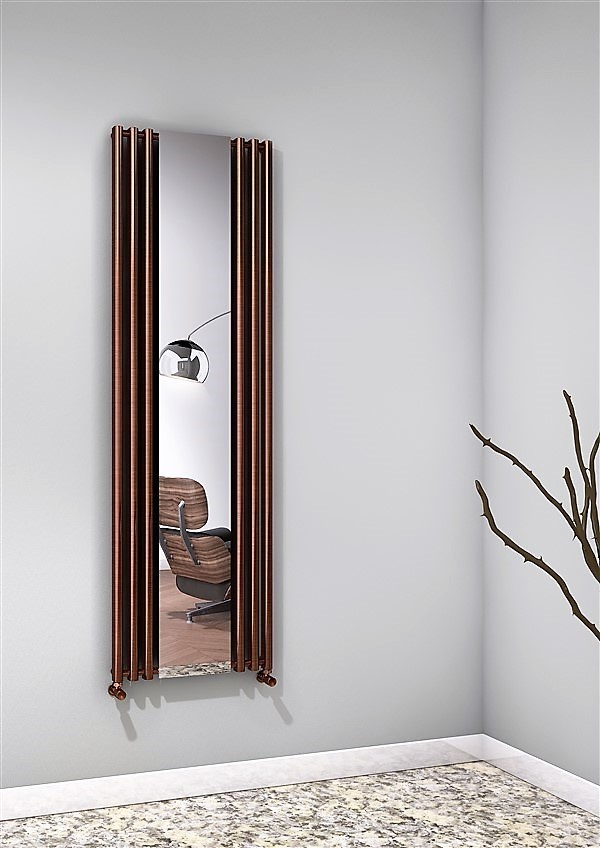

Bahama Decorative Radiator 540x1760 Copper Antique

TECHNICAL INFORMATION

• Model = Bahama

• Working system = Boiler, Central Heating System, Heat Pump (Hydronic Systems)

• Material = Steel

• Width = 540 mm

• Height= 1760 mm

• Color / Coating = Copper Antique

• Mirror Width = 280 mm

• Tapping Distance = 510 mm

• Maximum Working Pressure = 10 bar

• Wall to Center of Inlet = 70 mm

• Wall Projection Distance = 90 mm

• Thread Dimension = 1/2"

• Water Volume = 11,9 lt

• Weight = 22,3 kg

• Boxed Weight = 27,2 kg

• Box Size = 57x178x7 cm

• Wall Mount Set Type = Metal

• Wall Mount Set Color = Same Color As The Product

• Assembly Set Is Included In The Price,Included in the Box.

• Prices do not include valves pls. refer to page "Valves" to see our range

• Prices do not include pipe sleeves pls. refer to page "Accessories" to see our range

Heat Output

Kcal/h

• Heat Output 75/65-20° ∆t=50°C = 341 Kcal/h

• Heat Output 90/70-20° ∆t=60°C = 430 Kcal/h

• Heat Output 55/45-20° ∆t=30°C = 175 Kcal/h

Watts

• Heat Output 75/65-20° ∆t=50°C = 396 Watt

• Heat Output 90/70-20° ∆t=60°C = 499 Watt

• Heat Output 55/45-20° ∆t=30°C = 203 Watt

Btu

• Heat Output 75/65-20° ∆t=50°C = 1352 Btu

• Heat Output 90/70-20° ∆t=60°C = 1704 Btu

• Heat Output 55/45-20° ∆t=30°C = 693 Btu
