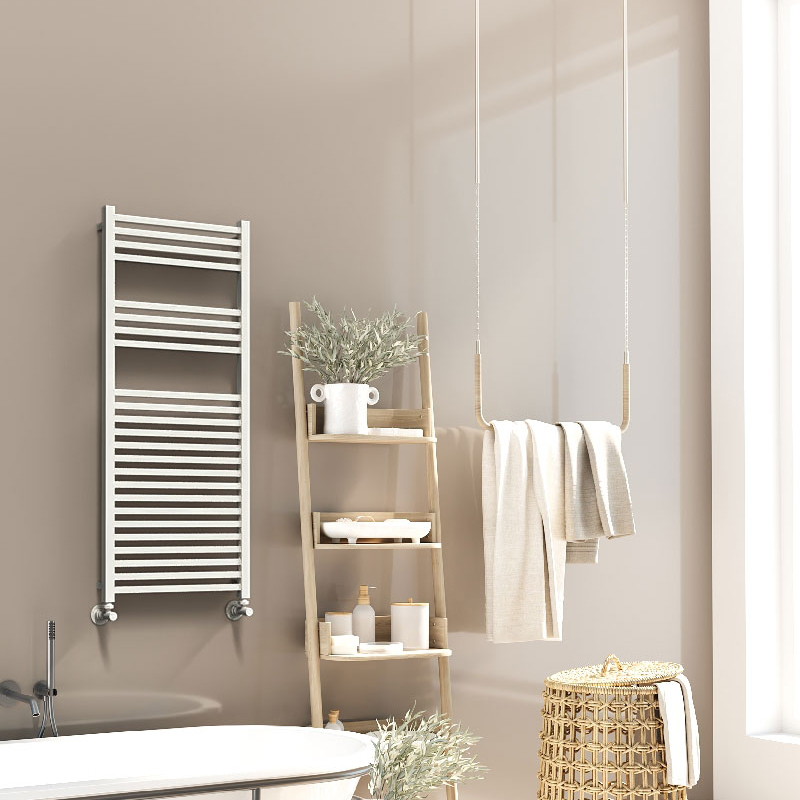

Barbados Decorative Towel Warmer 500x1200 White

DECORATİVE TOWEL WARMERS TECHNICAL INFORMATION

• Model = Barbados

• Working system = Boiler, Central Heating System, Heat Pump (Hydronic Systems)

• Material = Steel

• Width = 500 mm

• Height = 1200 mm

• Color/Coating = Matt White

• Tapping Distance = 470 mm

• Maximum Working Pressure = 10 bar

• Wall to Center of Inlet = 65 mm

• Wall Projection Distance = 80 mm

• Towel Warmer Thread Dimension = 1/2"

• Water Volume = 7 lt

• Weight = 10,5 kg

• Boxed Weight = 12,3 kg

• Box Size = 52x122x5 cm

• Wall Mount Set Type = Metal

• Wall Mount Set Color = Same Color As The Product

• Assembly Set Is Included In The Price,Included in the Box.

• Prices do not include valves pls. refer to page "Valves" to see our range

• Prices do not include pipe sleeves pls. refer to page "Accessories" to see our range

Heat Output

Kcal/h

• Heat Output 75/65-20° ?t=50°C = 509 Kcal/h

• Heat Output 90/70-20° ?t=60°C = 642 Kcal/h

• Heat Output 55/45-20° ?t=30°C = 261 Kcal/h

Watts

• Heat Output 75/65-20° ?t=50°C = 591 Watt

• Heat Output 90/70-20° ?t=60°C = 745 Watt

• Heat Output 55/45-20° ?t=30°C = 303 Watt

Btu

• Heat Output 75/65-20° ?t=50°C = 2017 Btu

• Heat Output 90/70-20° ?t=60°C = 2542 Btu

• Heat Output 55/45-20° ?t=30°C = 1033 Btu
