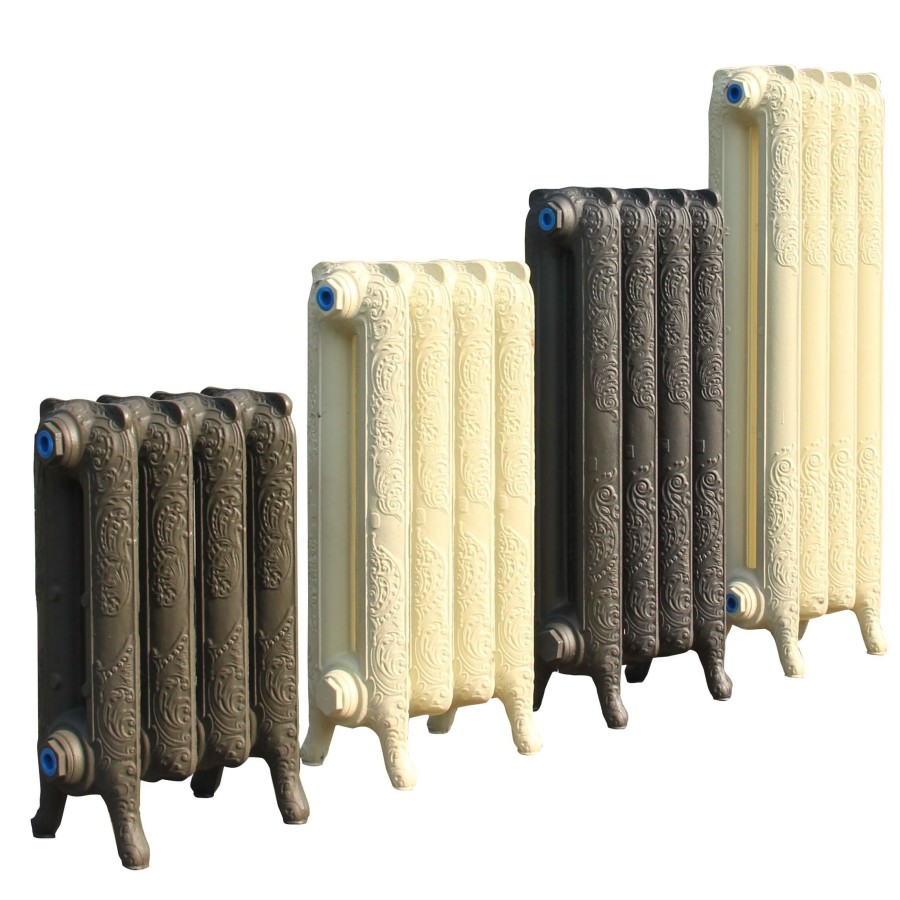

DECORA CASTING RADIATOR WITH LEGS TECHNICAL INFORMATION
• Model = Decora
• Material = Cast Iron
• Number of Columns = 2
• Number of Sections = 10 Pieces
• Height = 760 mm
• Width = 760 mm
• Color / Coating / Surface = Primer
• Tapping Distance = 600 mm
• Number of Legs = 2
• Maximum Working Pressure = 9 Bar
• Section Depth = 184,5 mm
• Section Thickness = 76 mm
• Water Volume = 26,4 lt
• Weight = 119,6 kg
• 4x½" Connection ( 2 Pcs Bottom, 2 Pcs Top)
• Blind plug and reducer available on each group, but not air vent
• Assembly Set Is Not Included In The Price for Wall Mounted Radiators
Heat Output
Kcal / h
• Heat Output 75/65-20° ?t=50°C = 1035 Kcal/h
• Heat Output 90/70-20° ?t=60°C = 1305 Kcal/h
• Heat Output 55/45-20° ?t=30°C = 530 Kcal/h
Watts
• Heat Output 75/65-20° ?t=50°C = 1203 Watt
• Heat Output 90/70-20° ?t=60°C = 1516 Watt
• Heat Output 55/45-20° ?t=30°C = 616 Watt
Btu
• Heat Output 75/65-20° ?t=50°C = 4105 Btu
• Heat Output 90/70-20° ?t=60°C = 5173 Btu
• Heat Output 55/45-20° ?t=30°C = 2102 Btu
Warranty:10 YearsDelivery Information:120 Day
