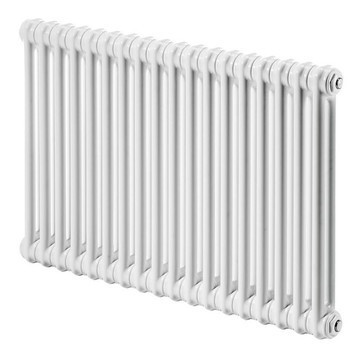

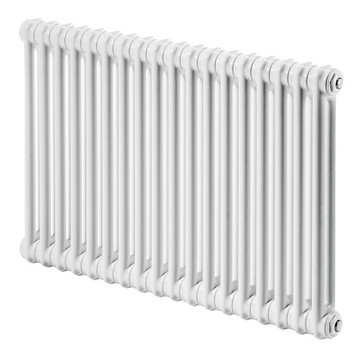

DL 2 Column Radiator 1000x2234 Special Color Category 1

Product Code : 2D2C10002234X1XS
Guarantee : 10 Year
TAXES Included
Price
:
194,821.20 TL
Discounted Price
:
107,151.66 TL
<p>10 Year Warranty</p>
10 Years
Warranty
Kargo Bedava
2000€ +
Free Shipping
Choose Quantity
Planned Delivery
:
06.04.2025 (45 Days)
İnstagram Takip Et
Campaign
  • Features
  • Downloads
  • Videos
  • Payment Options
  • Comments (0)
  • COLUMN RADIATOR TECHNICAL INFORMATION


    • Model = 2K

    • Material  = Steel

    • Height = 1000 mm

    • Width   = 2234 mm

    • Color = Special Color Category 1

    • Number of Columns = 2

    • Number of Sections  = 48 Pieces

    • Legs Needed If Free Standing = 4 Pieces

    • Diameter of Vertical Pipes = 25 mm

    • Maximum Working Pressure = 10 bar

    • Wall to Center of Inlet = 67 mm

    • Wall Projection Distance  = 100 mm

    • Section Width    = 46 mm

    • Radiator Depth  = 66 mm

    • Radiator Thread Dimension     = 1/2"

    • Water Volume    = 48 lt

    • Radiator Weight    = 72 kg

    TAPPING OPTIONS



    • Standard Entry1    = 930 mm

    • Standard Entry Cross = 2324 mm

    • Sides / Bottom Right-Left  = 2324 mm

    • Bottom Middle Entrance = 50 mm

    • Bottom Right Entrance  = 50 mm

    • Bottom Left Entrance   = 50 mm

    Heat Output



    Kcal / h

    • Heat Output 75/65-20° ∆t=50°C = 2977 Kcal/h

    • Heat Output 90/70-20° ∆t=60°C = 3752 Kcal/h

    • Heat Output 55/45-20° ∆t=30°C = 1525 Kcal/h

    Watts

    • Heat Output 75/65-20° ∆t=50°C = 3461 Watt

    • Heat Output 90/70-20° ∆t=60°C = 4361 Watt

    • Heat Output 55/45-20° ∆t=30°C = 1773 Watt

    Btu

    • Heat Output 75/65-20° ∆t=50°C = 11809 Btu

    • Heat Output 90/70-20° ∆t=60°C = 14880 Btu

    • Heat Output 55/45-20° ∆t=30°C = 6047 Btu

    Warranty
    :
    10 Years
    Delivery Information
    :
    45 Day
  • Kolon Radyatörler İçin Duvara Montaj Videosu

    Radyatör Duvara Montaj Aparatları Fiyata Dahildir!





    Kolon Radyatörler İçin Ayak Montaj Videosu

    Ayaklar Ayrı Satılmakta Olup, Radyatörünüzün Ölçüsüne Göre, Ürün Açıklamalarında Belirtilen Miktarda Ayağı Aksesuarlar Bölümünden Sepete Ekleyip Alabilirsiniz.
