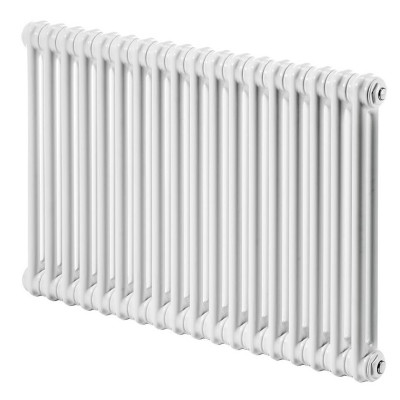

DL 2 Column Radiator 2200x716 White

Product Code : 2D2C22000716B1PS
Guarantee : 10 Year
TAXES Included
Price
:
87,826.80 TL
Discounted Price
:
48,304.74 TL
<p>10 Year Warranty</p>
10 Years
Warranty
Kargo Bedava
2000€ +
Free Shipping
INSTALLATION CONNECTION OPTIONS

Standard / Cross Standard / Cross

Bottom Right - Bottom Left Bottom Right - Bottom Left

Lower Middle 50mm Lower Middle 50mm

Bottom Left 50mm Bottom Left 50mm

Bottom Right 50mm Bottom Right 50mm

Choose Quantity
Planned Delivery
:
05.04.2025 (45 Days)
İnstagram Takip Et
Campaign
  • Features
  • Downloads
  • Videos
  • Payment Options
  • Comments (0)

  • COLUMN RADIATOR TECHNICAL INFORMATION


    • Model = 2K

    • Material  = Steel

    • Height = 2200 mm

    • Width   = 716 mm

    • Color = White

    • Number of Columns = 2

    • Number of Sections  = 15 Pieces

    • Legs Needed If Free Standing = 2 Pieces

    • Diameter of Vertical Pipes = 25 mm

    • Maximum Working Pressure = 10 bar

    • Wall to Center of Inlet = 67 mm

    • Wall Projection Distance  = 100 mm

    • Section Width    = 46 mm

    • Radiator Depth  = 66 mm

    • Radiator Thread Dimension     = 1/2"

    • Water Volume    = 28,5 lt

    • Radiator Weight    = 48 kg

    TAPPING OPTIONS



    • Standard Entry1    = 2130 mm

    • Standard Entry Cross = 806 mm

    • Sides / Bottom Right-Left  = 806 mm

    • Bottom Middle Entrance = 50 mm

    • Bottom Right Entrance  = 50 mm

    • Bottom Left Entrance   = 50 mm

    Heat Output



    Kcal / h

    • Heat Output 75/65-20° ∆t=50°C = 2026 Kcal/h

    • Heat Output 90/70-20° ∆t=60°C = 2553 Kcal/h

    • Heat Output 55/45-20° ∆t=30°C = 1038 Kcal/h

    Watts

    • Heat Output 75/65-20° ∆t=50°C = 2355 Watt

    • Heat Output 90/70-20° ∆t=60°C = 2968 Watt

    • Heat Output 55/45-20° ∆t=30°C = 1206 Watt

    Btu

    • Heat Output 75/65-20° ∆t=50°C = 8036 Btu

    • Heat Output 90/70-20° ∆t=60°C = 10126 Btu

    • Heat Output 55/45-20° ∆t=30°C = 4115 Btu

    Warranty
    :
    10 Years
    Delivery Information
    :
    45 Day

  • Kolon Radyatörler İçin Duvara Montaj Videosu

    Radyatör Duvara Montaj Aparatları Fiyata Dahildir!





    Kolon Radyatörler İçin Ayak Montaj Videosu

    Ayaklar Ayrı Satılmakta Olup, Radyatörünüzün Ölçüsüne Göre, Ürün Açıklamalarında Belirtilen Miktarda Ayağı Aksesuarlar Bölümünden Sepete Ekleyip Alabilirsiniz.



Other Colors
  • %45 Discount - DL 2 Column Radiator 2200x716 White
    AKS Seçenekleri
    DL 2 Column Radiator 2200x716 White ∆t50°C=2028 Kcal/h | ∆t60°C= 2580 Kcal/h | 15 Pipes | Heats 13-39 m2
    87,826.80 TL
    48,304.74 TL
  • %45 Discount - DL 2 Column Radiator 2200x716 Anthracite
    AKS Seçenekleri
    DL 2 Column Radiator 2200x716 Anthracite ∆t50°C=2028 Kcal/h | ∆t60°C= 2580 Kcal/h | 15 Pipes | Heats 13-39 m2
    118,566.18 TL
    65,211.40 TL
  • %45 Discount - DL 2 Column Radiator 2200x716 Matt Black
    AKS Seçenekleri
    DL 2 Column Radiator 2200x716 Matt Black ∆t50°C=2028 Kcal/h | ∆t60°C= 2580 Kcal/h | 15 Pipes | Heats 13-39 m2
    118,566.18 TL
    65,211.40 TL
  • %45 Discount - DL 2 Column Radiator 2200x716 Special Color Category 1
    AKS Seçenekleri
    DL 2 Column Radiator 2200x716 Special Color Category 1 ∆t50°C=2028 Kcal/h | ∆t60°C= 2580 Kcal/h | 15 Pipes | Heats 13-39 m2
    118,566.18 TL
    65,211.40 TL
  • %45 Discount - DL 2 Column Radiator 2200x716 Special Color Category 2
    AKS Seçenekleri
    DL 2 Column Radiator 2200x716 Special Color Category 2 ∆t50°C=2028 Kcal/h | ∆t60°C= 2580 Kcal/h | 15 Pipes | Heats 13-39 m2
    127,348.86 TL
    70,041.87 TL
