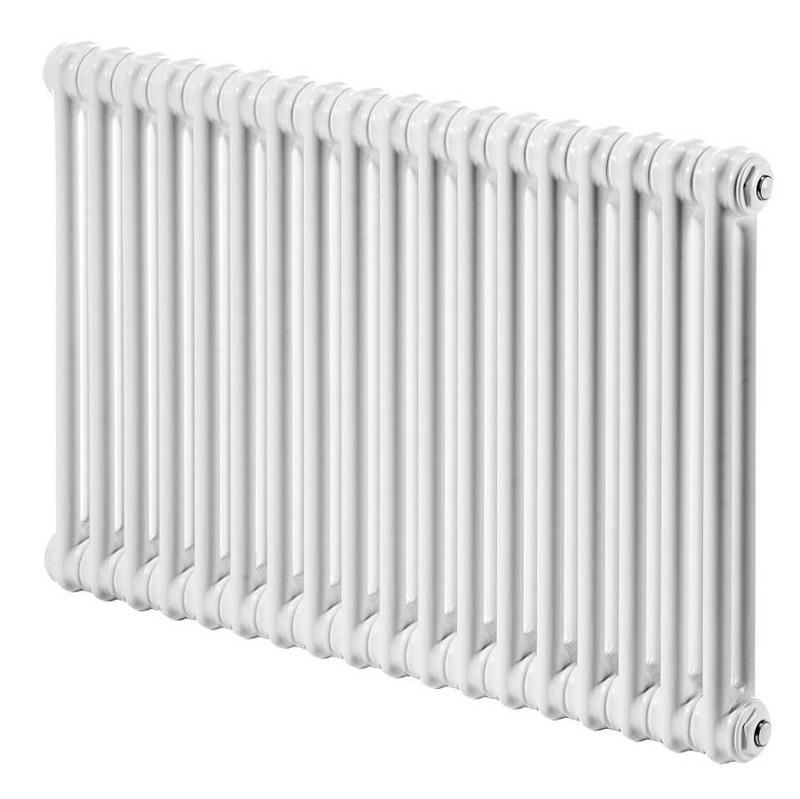

DL 2 Column Radiator 400x808 Special Color Category 1

Product Code : 2D2C04000808X1XS
Guarantee : 10 Year
TAXES Included
Price
:
54,419.04 TL
Discounted Price
:
29,930.47 TL
<p>10 Year Warranty</p>
10 Years
Warranty
Kargo Bedava
2000€ +
Free Shipping
Choose Quantity
Planned Delivery
:
08.04.2025 (45 Days)
İnstagram Takip Et
Campaign
  • Features
  • Downloads
  • Videos
  • Payment Options
  • Comments (0)
  • COLUMN RADIATOR TECHNICAL INFORMATION


    • Model = 2K

    • Material  = Steel

    • Height = 400 mm

    • Width   = 808 mm

    • Color = Special Color Category 1

    • Number of Columns = 2

    • Number of Sections  = 17 Pieces

    • Legs Needed If Free Standing = 2 Pieces

    • Diameter of Vertical Pipes = 25 mm

    • Maximum Working Pressure = 10 bar

    • Wall to Center of Inlet = 67 mm

    • Wall Projection Distance  = 100 mm

    • Section Width    = 46 mm

    • Radiator Depth  = 66 mm

    • Radiator Thread Dimension     = 1/2"

    • Water Volume    = 8,5 lt

    • Radiator Weight    = 10,2 kg

    TAPPING OPTIONS



    • Standard Entry1    = 330 mm

    • Standard Entry Cross = 898 mm

    • Sides / Bottom Right-Left  = 898 mm

    • Bottom Middle Entrance = 50 mm

    • Bottom Right Entrance  = 50 mm

    • Bottom Left Entrance   = 50 mm

    Heat Output



    Kcal / h

    • Heat Output 75/65-20° ∆t=50°C = 455 Kcal/h

    • Heat Output 90/70-20° ∆t=60°C = 574 Kcal/h

    • Heat Output 55/45-20° ∆t=30°C = 233 Kcal/h

    Watts

    • Heat Output 75/65-20° ∆t=50°C = 529 Watt

    • Heat Output 90/70-20° ∆t=60°C = 667 Watt

    • Heat Output 55/45-20° ∆t=30°C = 271 Watt

    Btu

    • Heat Output 75/65-20° ∆t=50°C = 1805 Btu

    • Heat Output 90/70-20° ∆t=60°C = 2275 Btu

    • Heat Output 55/45-20° ∆t=30°C = 925 Btu

    Warranty
    :
    10 Years
    Delivery Information
    :
    45 Day
