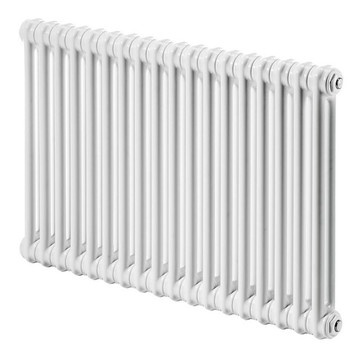

DL 2 Column Radiator 600x2326 Special Color Category 2

Product Code : 2D2C06002326X2XS
Guarantee : 10 Year
TAXES Included
Price
:
180,839.94 TL
Discounted Price
:
99,461.97 TL
<p>10 Year Warranty</p>
10 Years
Warranty
Kargo Bedava
2000€ +
Free Shipping
INSTALLATION CONNECTION OPTIONS

Standard / Cross Standard / Cross

Bottom Right - Bottom Left Bottom Right - Bottom Left

Lower Middle 50mm Lower Middle 50mm

Bottom Left 50mm Bottom Left 50mm

Bottom Right 50mm Bottom Right 50mm

Choose Quantity
Planned Delivery
:
08.04.2025 (45 Days)
İnstagram Takip Et
Campaign
  • Features
  • Downloads
  • Videos
  • Payment Options
  • Comments (0)

  • COLUMN RADIATOR TECHNICAL INFORMATION


    • Model = 2K

    • Material  = Steel

    • Height = 600 mm

    • Width   = 2326 mm

    • Color = Special Color Category 2

    • Number of Columns = 2

    • Number of Sections  = 50 Pieces

    • Legs Needed If Free Standing = 4 Pieces

    • Diameter of Vertical Pipes = 25 mm

    • Maximum Working Pressure = 10 bar

    • Wall to Center of Inlet = 67 mm

    • Wall Projection Distance  = 100 mm

    • Section Width    = 46 mm

    • Radiator Depth  = 66 mm

    • Radiator Thread Dimension     = 1/2"

    • Water Volume    = 35 lt

    • Radiator Weight    = 45 kg

    TAPPING OPTIONS



    • Standard Entry1    = 530 mm

    • Standard Entry Cross = 2416 mm

    • Sides / Bottom Right-Left  = 2416 mm

    • Bottom Middle Entrance = 50 mm

    • Bottom Right Entrance  = 50 mm

    • Bottom Left Entrance   = 50 mm

    Heat Output



    Kcal / h

    • Heat Output 75/65-20° ∆t=50°C = 1927 Kcal/h

    • Heat Output 90/70-20° ∆t=60°C = 2429 Kcal/h

    • Heat Output 55/45-20° ∆t=30°C = 987 Kcal/h

    Watts

    • Heat Output 75/65-20° ∆t=50°C = 2240 Watt

    • Heat Output 90/70-20° ∆t=60°C = 2823 Watt

    • Heat Output 55/45-20° ∆t=30°C = 1147 Watt

    Btu

    • Heat Output 75/65-20° ∆t=50°C = 7643 Btu

    • Heat Output 90/70-20° ∆t=60°C = 9631 Btu

    • Heat Output 55/45-20° ∆t=30°C = 3914 Btu

    Warranty
    :
    10 Years
    Delivery Information
    :
    45 Day

  • Kolon Radyatörler İçin Duvara Montaj Videosu

    Radyatör Duvara Montaj Aparatları Fiyata Dahildir!





    Kolon Radyatörler İçin Ayak Montaj Videosu

    Ayaklar Ayrı Satılmakta Olup, Radyatörünüzün Ölçüsüne Göre, Ürün Açıklamalarında Belirtilen Miktarda Ayağı Aksesuarlar Bölümünden Sepete Ekleyip Alabilirsiniz.
