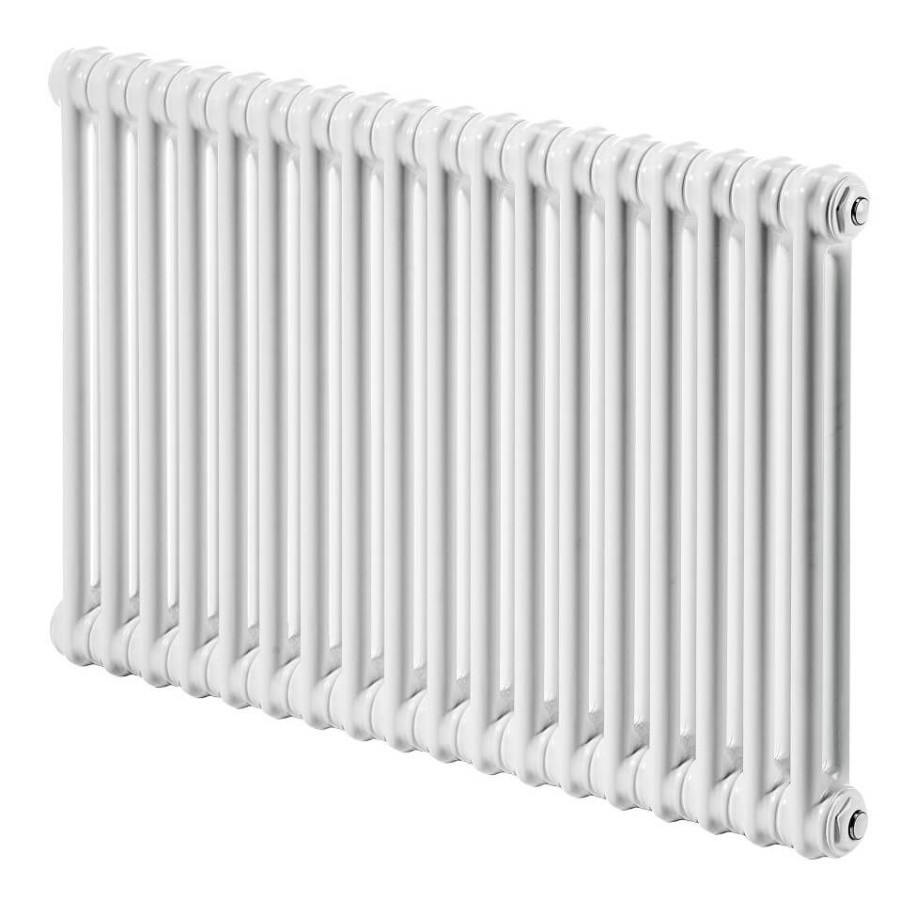

COLUMN RADIATOR TECHNICAL INFORMATION
• Model = 2K
• Material = Steel
• Height = 600 mm
• Width = 2602 mm
• Color = White
• Number of Columns = 2
• Number of Sections = 56 Pieces
• Legs Needed If Free Standing = 4 Pieces
• Diameter of Vertical Pipes = 25 mm
• Maximum Working Pressure = 10 bar
• Wall to Center of Inlet = 67 mm
• Wall Projection Distance = 100 mm
• Section Width = 46 mm
• Radiator Depth = 66 mm
• Radiator Thread Dimension = 1/2"
• Water Volume = 39,2 lt
• Radiator Weight = 50,4 kgTAPPING OPTIONS
• Standard Entry1 = 530 mm
• Standard Entry Cross = 2692 mm
• Sides / Bottom Right-Left = 2692 mm
• Bottom Middle Entrance = 50 mm
• Bottom Right Entrance = 50 mm
• Bottom Left Entrance = 50 mmHeat Output
Kcal / h
• Heat Output 75/65-20° ∆t=50°C = 2158 Kcal/h
• Heat Output 90/70-20° ∆t=60°C = 2720 Kcal/h
• Heat Output 55/45-20° ∆t=30°C = 1105 Kcal/h
Watts
• Heat Output 75/65-20° ∆t=50°C = 2509 Watt
• Heat Output 90/70-20° ∆t=60°C = 3162 Watt
• Heat Output 55/45-20° ∆t=30°C = 1285 Watt
Btu
• Heat Output 75/65-20° ∆t=50°C = 8561 Btu
• Heat Output 90/70-20° ∆t=60°C = 10787 Btu
• Heat Output 55/45-20° ∆t=30°C = 4384 Btu
Warranty:10 YearsDelivery Information:45 Day Kolon Radyatörler İçin Duvara Montaj Videosu
Radyatör Duvara Montaj Aparatları Fiyata Dahildir!
Kolon Radyatörler İçin Ayak Montaj VideosuAyaklar Ayrı Satılmakta Olup, Radyatörünüzün Ölçüsüne Göre, Ürün Açıklamalarında Belirtilen Miktarda Ayağı Aksesuarlar Bölümünden Sepete Ekleyip Alabilirsiniz.
Other Colors
-
%45 DiscountAKS SeçenekleriDl 2 Column Radiator 600x2602 White ∆t50°C=2158 Kcal/h | ∆t60°C= 2715 Kcal/h | 56 Pipes | Heats 14-42 m2
-
%45 DiscountAKS SeçenekleriDl 2 Column Radiator 600x2602 Anthracite ∆t50°C=2158 Kcal/h | ∆t60°C= 2715 Kcal/h | 56 Pipes | Heats 14-42 m2
-
%45 DiscountAKS SeçenekleriDL 2 Column Radiator 600x2602 Matt Black ∆t50°C=2158 Kcal/h | ∆t60°C= 2715 Kcal/h | 56 Pipes | Heats 14-42 m2
-
%45 DiscountAKS SeçenekleriDL 2 Column Radiator 600x2602 Special Color Category 1 ∆t50°C=2158 Kcal/h | ∆t60°C= 2715 Kcal/h | 56 Pipes | Heats 14-42 m2
-
%45 DiscountAKS SeçenekleriDL 2 Column Radiator 600x2602 Special Color Category 2 ∆t50°C=2158 Kcal/h | ∆t60°C= 2715 Kcal/h | 56 Pipes | Heats 14-42 m2
