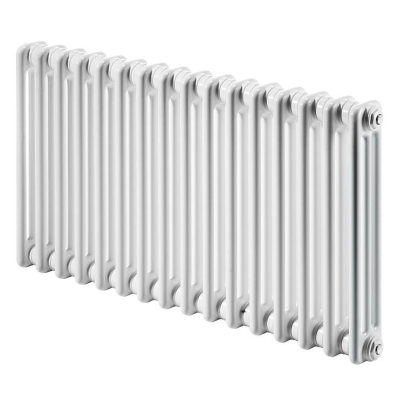

COLUMN RADIATOR TECHNICAL INFORMATION
• Model = 3K
• Material = Steel
• Height = 1000 mm
• Width = 808 mm
• Color = Special Color Category 2
• Number of Columns = 3
• Number of Sections = 17 Pieces
• Legs Needed If Free Standing = 2 Pieces
• Diameter of Vertical Pipes = 25 mm
• Maximum Working Pressure = 10 bar
• Wall to Center of Inlet = 87,5 mm
• Wall Projection Distance = 141 mm
• Section Width = 46 mm
• Radiator Depth = 107 mm
• Radiator Thread Dimension = 1/2"
• Water Volume = 23,8 lt
• Radiator Weight = 35,7 kgTAPPING OPTIONS
• Standard Entry1 = 930 mm
• Standard Entry Cross = 898 mm
• Sides / Bottom Right-Left = 898 mm
• Bottom Middle Entrance = 50 mm
• Bottom Right Entrance = 50 mm
• Bottom Left Entrance = 50 mmHeat Output
Kcal / h
• Heat Output 75/65-20° ∆t=50°C = 1425 Kcal/h
• Heat Output 90/70-20° ∆t=60°C = 1796 Kcal/h
• Heat Output 55/45-20° ∆t=30°C = 730 Kcal/h
Watts
• Heat Output 75/65-20° ∆t=50°C = 1656 Watt
• Heat Output 90/70-20° ∆t=60°C = 2087 Watt
• Heat Output 55/45-20° ∆t=30°C = 848 Watt
Btu
• Heat Output 75/65-20° ∆t=50°C = 5651 Btu
• Heat Output 90/70-20° ∆t=60°C = 7121 Btu
• Heat Output 55/45-20° ∆t=30°C = 2894 Btu
Warranty:10 YearsDelivery Information:45 Day Kolon Radyatörler İçin Duvara Montaj Videosu
Radyatör Duvara Montaj Aparatları Fiyata Dahildir!
Kolon Radyatörler İçin Ayak Montaj VideosuAyaklar Ayrı Satılmakta Olup, Radyatörünüzün Ölçüsüne Göre, Ürün Açıklamalarında Belirtilen Miktarda Ayağı Aksesuarlar Bölümünden Sepete Ekleyip Alabilirsiniz.
