COLUMN RADIATOR TECHNICAL INFORMATION
• Model = 4K
• Material = Steel
• Height = 1000 mm
• Width = 2234 mm
• Color = Anthracite
• Number of Columns = 4
• Number of Sections = 48 Pieces
• Legs Needed If Free Standing = 4 Pieces
• Diameter of Vertical Pipes = 25 mm
• Maximum Working Pressure = 10 bar
• Wall to Center of Inlet = 108 mm
• Wall Projection Distance = 182 mm
• Section Width = 46 mm
• Radiator Depth = 148 mm
• Radiator Thread Dimension = 1/2"
• Water Volume = 91,2 lt
• Radiator Weight = 139,2 kgTAPPING OPTIONS
• Standard Entry1 = 930 mm
• Standard Entry Cross = 2324 mm
• Sides / Bottom Right-Left = 2324 mm
• Bottom Middle Entrance = 50 mm
• Bottom Right Entrance = 50 mm
• Bottom Left Entrance = 50 mmHeat Output
Kcal / h
• Heat Output 75/65-20° ∆t=50°C = 5449 Kcal/h
• Heat Output 90/70-20° ∆t=60°C = 6866 Kcal/h
• Heat Output 55/45-20° ∆t=30°C = 2790 Kcal/h
Watts
• Heat Output 75/65-20° ∆t=50°C = 6336 Watt
• Heat Output 90/70-20° ∆t=60°C = 7984 Watt
• Heat Output 55/45-20° ∆t=30°C = 3245 Watt
Btu
• Heat Output 75/65-20° ∆t=50°C = 21619 Btu
• Heat Output 90/70-20° ∆t=60°C = 27240 Btu
• Heat Output 55/45-20° ∆t=30°C = 11069 Btu
Warranty:10 YearsDelivery Information:45 Day Kolon Radyatörler İçin Duvara Montaj Videosu
Radyatör Duvara Montaj Aparatları Fiyata Dahildir!
Kolon Radyatörler İçin Ayak Montaj VideosuAyaklar Ayrı Satılmakta Olup, Radyatörünüzün Ölçüsüne Göre, Ürün Açıklamalarında Belirtilen Miktarda Ayağı Aksesuarlar Bölümünden Sepete Ekleyip Alabilirsiniz.
Other Colors
-
%45 DiscountAKS SeçenekleriDL 4 Column Radiator 1000x2234 White ∆t50°C=5428 Kcal/h | ∆t60°C= 6868 Kcal/h | 48 Pipes | Heats 35-105 m2
-
%45 DiscountAKS SeçenekleriDL 4 Column Radiator 1000x2234 Anthracite ∆t50°C=5428 Kcal/h | ∆t60°C= 6868 Kcal/h | 48 Pipes | Heats 35-105 m2
-
%45 DiscountAKS SeçenekleriDL 4 Column Radiator 1000x2234 Matt Black ∆t50°C=5428 Kcal/h | ∆t60°C= 6868 Kcal/h | 48 Pipes | Heats 35-105 m2
-
%45 DiscountAKS SeçenekleriDL 4 Column Radiator 1000x2234 Special Color Category 1 ∆t50°C=5428 Kcal/h | ∆t60°C= 6868 Kcal/h | 48 Pipes | Heats 35-105 m2
-

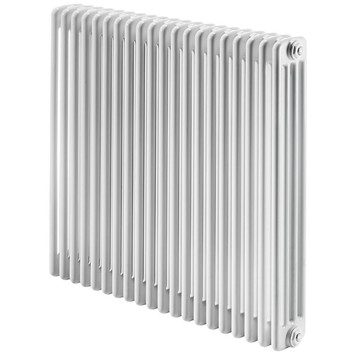

%45 DiscountAKS SeçenekleriDL 4 Column Radiator 1000x2234 Special Color Category 2 ∆t50°C=5428 Kcal/h | ∆t60°C= 6868 Kcal/h | 48 Pipes | Heats 35-105 m2
