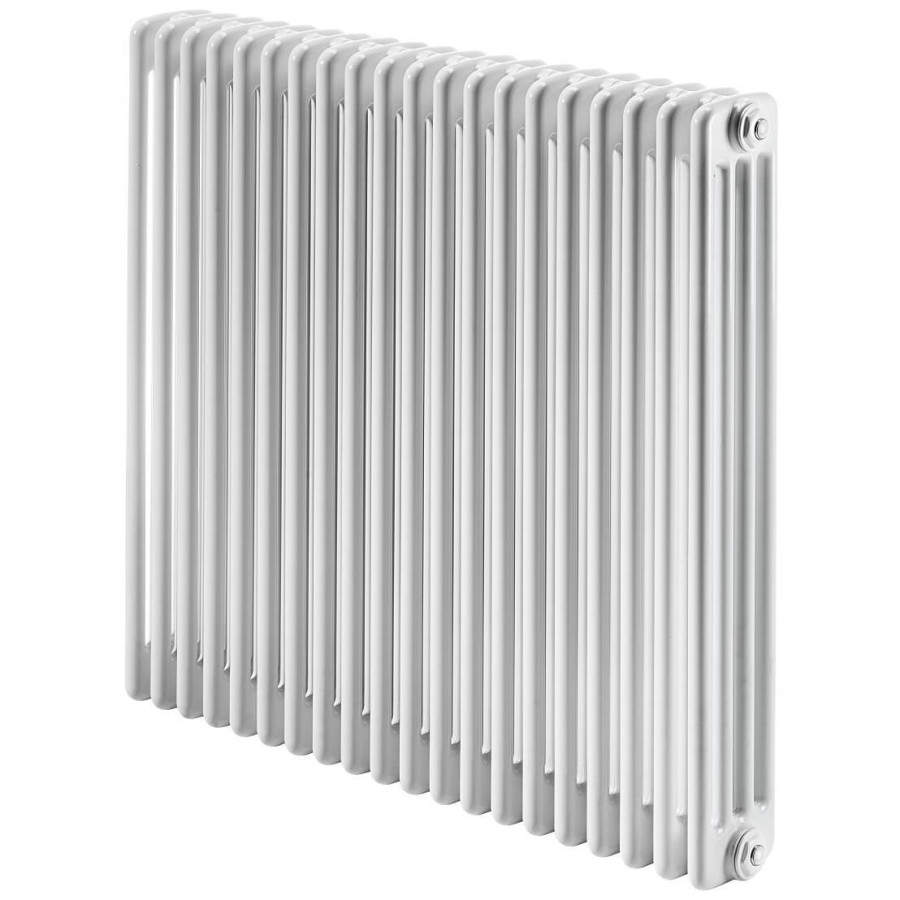

COLUMN RADIATOR TECHNICAL INFORMATION
• Model = 4K
• Material = Steel
• Height = 300 mm
• Width = 2418 mm
• Color = White
• Number of Columns = 4
• Number of Sections = 52 Pieces
• Legs Needed If Free Standing = 4 Pieces
• Diameter of Vertical Pipes = 25 mm
• Maximum Working Pressure = 10 bar
• Wall to Center of Inlet = 108 mm
• Wall Projection Distance = 182 mm
• Section Width = 46 mm
• Radiator Depth = 148 mm
• Radiator Thread Dimension = 1/2"
• Water Volume = 41,6 lt
• Radiator Weight = 46,8 kgTAPPING OPTIONS
• Standard Entry1 = 230 mm
• Standard Entry Cross = 2508 mm
• Sides / Bottom Right-Left = 2508 mm
• Bottom Middle Entrance = 50 mm
• Bottom Right Entrance = 50 mm
• Bottom Left Entrance = 50 mmHeat Output
Kcal / h
• Heat Output 75/65-20° ∆t=50°C = 1892 Kcal/h
• Heat Output 90/70-20° ∆t=60°C = 2384 Kcal/h
• Heat Output 55/45-20° ∆t=30°C = 969 Kcal/h
Watts
• Heat Output 75/65-20° ∆t=50°C = 2200 Watt
• Heat Output 90/70-20° ∆t=60°C = 2772 Watt
• Heat Output 55/45-20° ∆t=30°C = 1127 Watt
Btu
• Heat Output 75/65-20° ∆t=50°C = 7507 Btu
• Heat Output 90/70-20° ∆t=60°C = 9459 Btu
• Heat Output 55/45-20° ∆t=30°C = 3844 Btu
Warranty:10 YearsDelivery Information:45 Day Kolon Radyatörler İçin Duvara Montaj Videosu
Radyatör Duvara Montaj Aparatları Fiyata Dahildir!
Kolon Radyatörler İçin Ayak Montaj VideosuAyaklar Ayrı Satılmakta Olup, Radyatörünüzün Ölçüsüne Göre, Ürün Açıklamalarında Belirtilen Miktarda Ayağı Aksesuarlar Bölümünden Sepete Ekleyip Alabilirsiniz.
