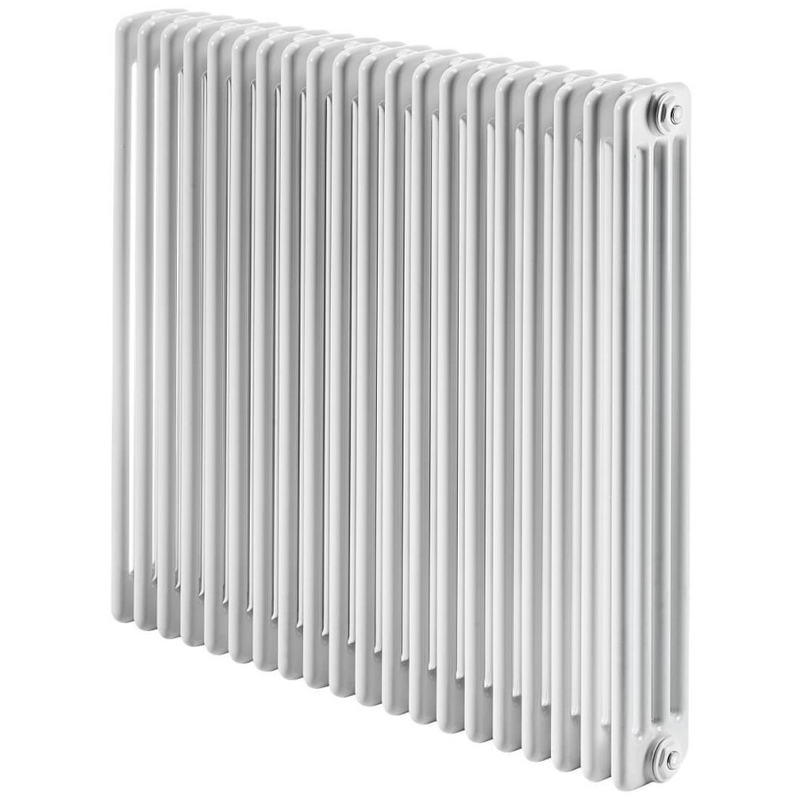

COLUMN RADIATOR TECHNICAL INFORMATION
• Model = 4K
• Material = Steel
• Height = 400 mm
• Width = 624 mm
• Color = Special Color Category 1
• Number of Columns = 4
• Number of Sections = 13 Pieces
• Legs Needed If Free Standing = 2 Pieces
• Diameter of Vertical Pipes = 25 mm
• Maximum Working Pressure = 10 bar
• Wall to Center of Inlet = 108 mm
• Wall Projection Distance = 182 mm
• Section Width = 46 mm
• Radiator Depth = 148 mm
• Radiator Thread Dimension = 1/2"
• Water Volume = 11,7 lt
• Radiator Weight = 15,6 kgTAPPING OPTIONS
• Standard Entry1 = 330 mm
• Standard Entry Cross = 714 mm
• Sides / Bottom Right-Left = 714 mm
• Bottom Middle Entrance = 50 mm
• Bottom Right Entrance = 50 mm
• Bottom Left Entrance = 50 mmHeat Output
Kcal / h
• Heat Output 75/65-20° ∆t=50°C = 621 Kcal/h
• Heat Output 90/70-20° ∆t=60°C = 783 Kcal/h
• Heat Output 55/45-20° ∆t=30°C = 318 Kcal/h
Watts
• Heat Output 75/65-20° ∆t=50°C = 722 Watt
• Heat Output 90/70-20° ∆t=60°C = 910 Watt
• Heat Output 55/45-20° ∆t=30°C = 370 Watt
Btu
• Heat Output 75/65-20° ∆t=50°C = 2464 Btu
• Heat Output 90/70-20° ∆t=60°C = 3105 Btu
• Heat Output 55/45-20° ∆t=30°C = 1262 Btu
Warranty:10 YearsDelivery Information:45 Day Kolon Radyatörler İçin Duvara Montaj Videosu
Radyatör Duvara Montaj Aparatları Fiyata Dahildir!
Kolon Radyatörler İçin Ayak Montaj VideosuAyaklar Ayrı Satılmakta Olup, Radyatörünüzün Ölçüsüne Göre, Ürün Açıklamalarında Belirtilen Miktarda Ayağı Aksesuarlar Bölümünden Sepete Ekleyip Alabilirsiniz.
