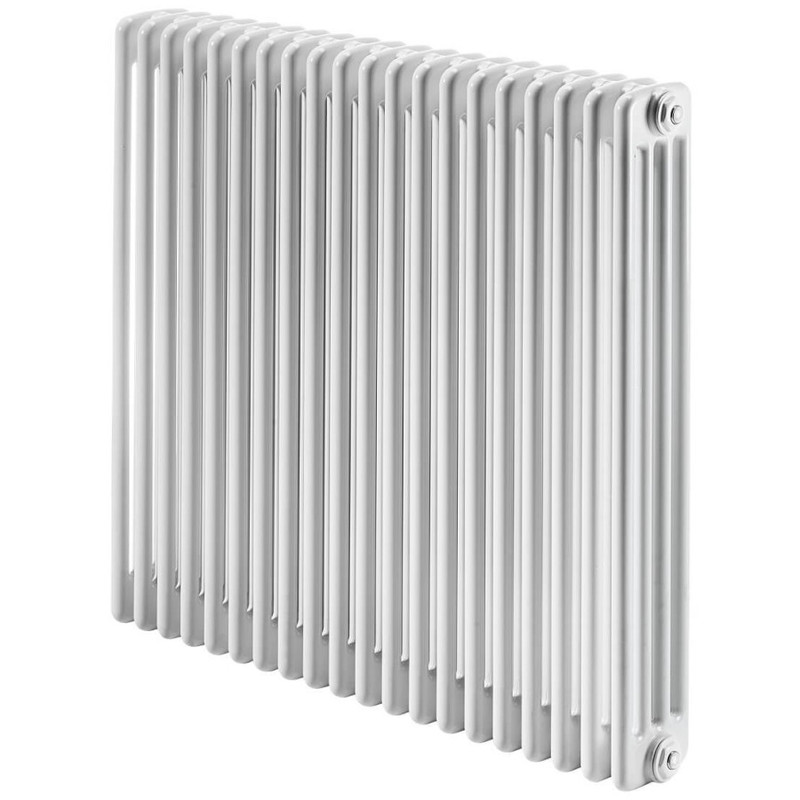

DL 4 Column Radiator 500x1498 Special Color Category 1

Product Code : 2D4C05001498X1XS
Guarantee : 10 Year
TAXES Included
Price
:
150,295.50 TL
Discounted Price
:
82,662.53 TL
<p>10 Year Warranty</p>
10 Years
Warranty
Kargo Bedava
2000€ +
Free Shipping
INSTALLATION CONNECTION OPTIONS

Standard / Cross Standard / Cross

Bottom Right - Bottom Left Bottom Right - Bottom Left

Lower Middle 50mm Lower Middle 50mm

Bottom Left 50mm Bottom Left 50mm

Bottom Right 50mm Bottom Right 50mm

Choose Quantity
Planned Delivery
:
16.03.2025 (45 Days)
İnstagram Takip Et
Campaign
  • Features
  • Downloads
  • Videos
  • Payment Options
  • Comments (0)

  • COLUMN RADIATOR TECHNICAL INFORMATION


    • Model = 4K

    • Material  = Steel

    • Height = 500 mm

    • Width   = 1498 mm

    • Color = Special Color Category 1

    • Number of Columns = 4

    • Number of Sections  = 32 Pieces

    • Legs Needed If Free Standing = 3 Pieces

    • Diameter of Vertical Pipes = 25 mm

    • Maximum Working Pressure = 10 bar

    • Wall to Center of Inlet = 108 mm

    • Wall Projection Distance  = 182 mm

    • Section Width    = 46 mm

    • Radiator Depth  = 148 mm

    • Radiator Thread Dimension     = 1/2"

    • Water Volume    = 35,2 lt

    • Radiator Weight    = 48 kg

    TAPPING OPTIONS



    • Standard Entry1    = 430 mm

    • Standard Entry Cross = 1588 mm

    • Sides / Bottom Right-Left  = 1588 mm

    • Bottom Middle Entrance = 50 mm

    • Bottom Right Entrance  = 50 mm

    • Bottom Left Entrance   = 50 mm

    Heat Output



    Kcal / h

    • Heat Output 75/65-20° ∆t=50°C = 1880 Kcal/h

    • Heat Output 90/70-20° ∆t=60°C = 2369 Kcal/h

    • Heat Output 55/45-20° ∆t=30°C = 963 Kcal/h

    Watts

    • Heat Output 75/65-20° ∆t=50°C = 2186 Watt

    • Heat Output 90/70-20° ∆t=60°C = 2755 Watt

    • Heat Output 55/45-20° ∆t=30°C = 1120 Watt

    Btu

    • Heat Output 75/65-20° ∆t=50°C = 7459 Btu

    • Heat Output 90/70-20° ∆t=60°C = 9399 Btu

    • Heat Output 55/45-20° ∆t=30°C = 3820 Btu

    Warranty
    :
    10 Years
    Delivery Information
    :
    45 Day

  • Kolon Radyatörler İçin Duvara Montaj Videosu

    Radyatör Duvara Montaj Aparatları Fiyata Dahildir!





    Kolon Radyatörler İçin Ayak Montaj Videosu

    Ayaklar Ayrı Satılmakta Olup, Radyatörünüzün Ölçüsüne Göre, Ürün Açıklamalarında Belirtilen Miktarda Ayağı Aksesuarlar Bölümünden Sepete Ekleyip Alabilirsiniz.
