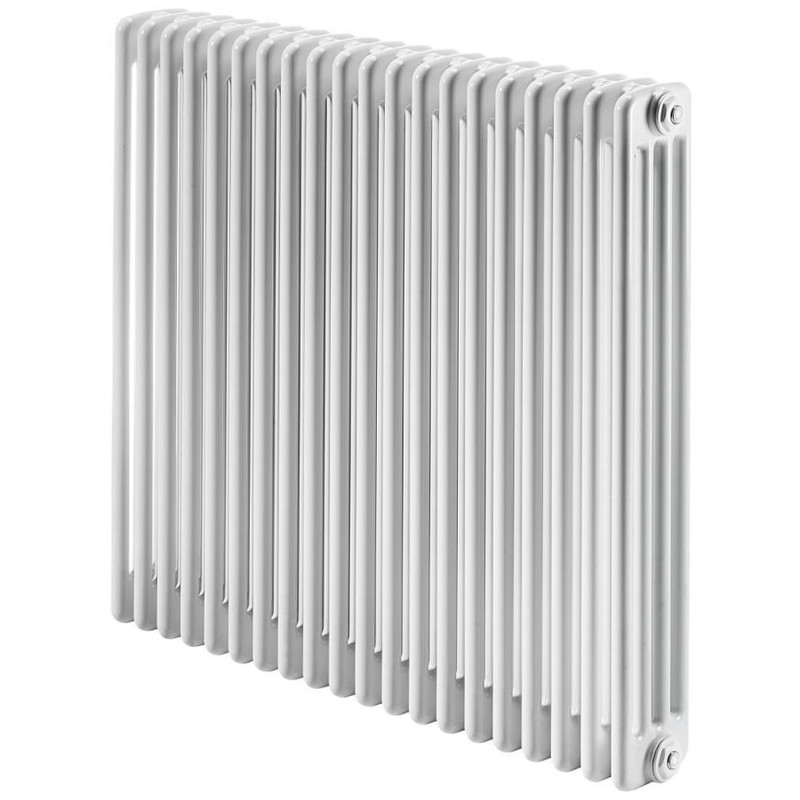

COLUMN RADIATOR TECHNICAL INFORMATION
• Model = 4K
• Material = Steel
• Height = 500 mm
• Width = 1728 mm
• Color = Special Color Category 1
• Number of Columns = 4
• Number of Sections = 37 Pieces
• Legs Needed If Free Standing = 3 Pieces
• Diameter of Vertical Pipes = 25 mm
• Maximum Working Pressure = 10 bar
• Wall to Center of Inlet = 108 mm
• Wall Projection Distance = 182 mm
• Section Width = 46 mm
• Radiator Depth = 148 mm
• Radiator Thread Dimension = 1/2"
• Water Volume = 40,7 lt
• Radiator Weight = 55,5 kgTAPPING OPTIONS
• Standard Entry1 = 430 mm
• Standard Entry Cross = 1818 mm
• Sides / Bottom Right-Left = 1818 mm
• Bottom Middle Entrance = 50 mm
• Bottom Right Entrance = 50 mm
• Bottom Left Entrance = 50 mmHeat Output
Kcal / h
• Heat Output 75/65-20° ∆t=50°C = 2175 Kcal/h
• Heat Output 90/70-20° ∆t=60°C = 2741 Kcal/h
• Heat Output 55/45-20° ∆t=30°C = 1114 Kcal/h
Watts
• Heat Output 75/65-20° ∆t=50°C = 2528 Watt
• Heat Output 90/70-20° ∆t=60°C = 3186 Watt
• Heat Output 55/45-20° ∆t=30°C = 1295 Watt
Btu
• Heat Output 75/65-20° ∆t=50°C = 8626 Btu
• Heat Output 90/70-20° ∆t=60°C = 10869 Btu
• Heat Output 55/45-20° ∆t=30°C = 4417 Btu
Warranty:10 YearsDelivery Information:45 Day Kolon Radyatörler İçin Duvara Montaj Videosu
Radyatör Duvara Montaj Aparatları Fiyata Dahildir!
Kolon Radyatörler İçin Ayak Montaj VideosuAyaklar Ayrı Satılmakta Olup, Radyatörünüzün Ölçüsüne Göre, Ürün Açıklamalarında Belirtilen Miktarda Ayağı Aksesuarlar Bölümünden Sepete Ekleyip Alabilirsiniz.
