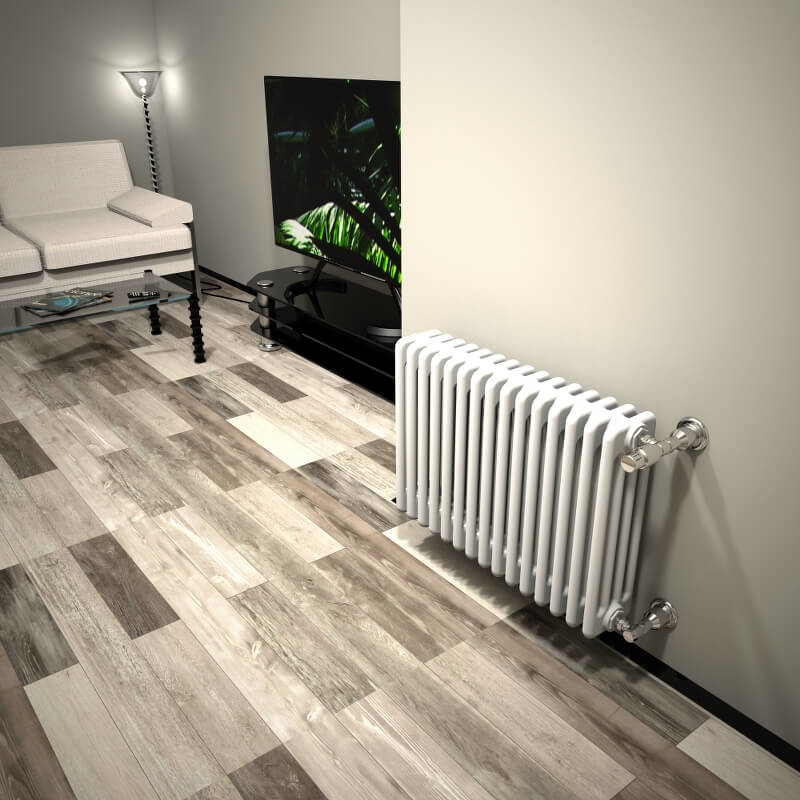

DL 4 Column Radiator 500x716 White

COLUMN RADIATOR TECHNICAL INFORMATION

• Model = 4K

• Material  = Steel

• Height = 500 mm

• Width   = 716 mm

• Color = White

• Number of Columns = 4

• Number of Sections  = 15 Pieces

• Legs Needed If Free Standing = 2 Pieces

• Diameter of Vertical Pipes = 25 mm

• Maximum Working Pressure = 10 bar

• Wall to Center of Inlet = 108 mm

• Wall Projection Distance  = 182 mm

• Section Width    = 46 mm

• Radiator Depth  = 148 mm

• Radiator Thread Dimension     = 1/2"

• Water Volume    = 16,5 lt

• Radiator Weight    = 22,5 kg

TAPPING OPTIONS

• Standard Entry1    = 430 mm

• Standard Entry Cross = 806 mm

• Sides / Bottom Right-Left  = 806 mm

• Bottom Middle Entrance = 50 mm

• Bottom Right Entrance  = 50 mm

• Bottom Left Entrance   = 50 mm

Heat Output

Kcal / h

• Heat Output 75/65-20° ∆t=50°C = 882 Kcal/h

• Heat Output 90/70-20° ∆t=60°C = 1112 Kcal/h

• Heat Output 55/45-20° ∆t=30°C = 452 Kcal/h

Watts

• Heat Output 75/65-20° ∆t=50°C = 1025 Watt

• Heat Output 90/70-20° ∆t=60°C = 1292 Watt

• Heat Output 55/45-20° ∆t=30°C = 525 Watt

Btu

• Heat Output 75/65-20° ∆t=50°C = 3498 Btu

• Heat Output 90/70-20° ∆t=60°C = 4408 Btu

• Heat Output 55/45-20° ∆t=30°C = 1791 Btu
