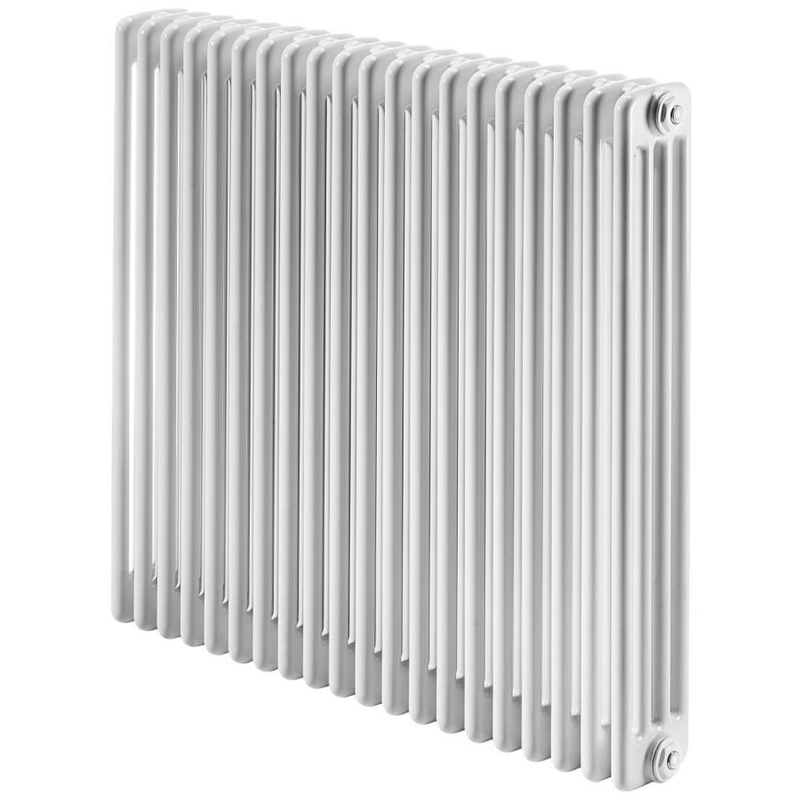

COLUMN RADIATOR TECHNICAL INFORMATION
• Model = 4K
• Material = Steel
• Height = 600 mm
• Width = 1728 mm
• Color = Special Color Category 1
• Number of Columns = 4
• Number of Sections = 37 Pieces
• Legs Needed If Free Standing = 3 Pieces
• Diameter of Vertical Pipes = 25 mm
• Maximum Working Pressure = 10 bar
• Wall to Center of Inlet = 108 mm
• Wall Projection Distance = 182 mm
• Section Width = 46 mm
• Radiator Depth = 148 mm
• Radiator Thread Dimension = 1/2"
• Water Volume = 44,4 lt
• Radiator Weight = 66,6 kgTAPPING OPTIONS
• Standard Entry1 = 530 mm
• Standard Entry Cross = 1818 mm
• Sides / Bottom Right-Left = 1818 mm
• Bottom Middle Entrance = 50 mm
• Bottom Right Entrance = 50 mm
• Bottom Left Entrance = 50 mmHeat Output
Kcal / h
• Heat Output 75/65-20° ∆t=50°C = 2581 Kcal/h
• Heat Output 90/70-20° ∆t=60°C = 3253 Kcal/h
• Heat Output 55/45-20° ∆t=30°C = 1322 Kcal/h
Watts
• Heat Output 75/65-20° ∆t=50°C = 3001 Watt
• Heat Output 90/70-20° ∆t=60°C = 3782 Watt
• Heat Output 55/45-20° ∆t=30°C = 1537 Watt
Btu
• Heat Output 75/65-20° ∆t=50°C = 10240 Btu
• Heat Output 90/70-20° ∆t=60°C = 12903 Btu
• Heat Output 55/45-20° ∆t=30°C = 5243 Btu
Warranty:10 YearsDelivery Information:45 Day Kolon Radyatörler İçin Duvara Montaj Videosu
Radyatör Duvara Montaj Aparatları Fiyata Dahildir!
Kolon Radyatörler İçin Ayak Montaj VideosuAyaklar Ayrı Satılmakta Olup, Radyatörünüzün Ölçüsüne Göre, Ürün Açıklamalarında Belirtilen Miktarda Ayağı Aksesuarlar Bölümünden Sepete Ekleyip Alabilirsiniz.
Other Colors
-
%45 DiscountAKS SeçenekleriDl 4 Column Radiator 600x1728 White ∆t50°C=2581 Kcal/h | ∆t60°C= 3252 Kcal/h | 37 Pipes | Heats 17-50 m2
-
%45 DiscountAKS SeçenekleriDl 4 Column Radiator 600x1728 Anthracite ∆t50°C=2581 Kcal/h | ∆t60°C= 3252 Kcal/h | 37 Pipes | Heats 17-50 m2
-
%45 DiscountAKS SeçenekleriDL 4 Column Radiator 600x1728 Matt Black ∆t50°C=2581 Kcal/h | ∆t60°C= 3252 Kcal/h | 37 Pipes | Heats 17-50 m2
-
%45 DiscountAKS SeçenekleriDL 4 Column Radiator 600x1728 Special Color Category 1 ∆t50°C=2581 Kcal/h | ∆t60°C= 3252 Kcal/h | 37 Pipes | Heats 17-50 m2
-
%45 DiscountAKS SeçenekleriDL 4 Column Radiator 600x1728 Special Color Category 2 ∆t50°C=2581 Kcal/h | ∆t60°C= 3252 Kcal/h | 37 Pipes | Heats 17-50 m2
