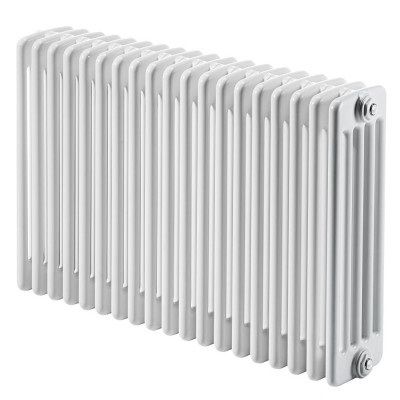

COLUMN RADIATOR TECHNICAL INFORMATION
• Model = 5K
• Material = Steel
• Height = 1800 mm
• Width = 624 mm
• Color = Special Color Category 2
• Number of Columns = 5
• Number of Sections = 13 Pieces
• Legs Needed If Free Standing = 3 Pieces
• Diameter of Vertical Pipes = 25 mm
• Maximum Working Pressure = 10 bar
• Wall to Center of Inlet = 128,5 mm
• Wall Projection Distance = 223 mm
• Section Width = 46 mm
• Radiator Depth = 189 mm
• Radiator Thread Dimension = 1/2"
• Water Volume = 50,7 lt
• Radiator Weight = 84,5 kgTAPPING OPTIONS
• Standard Entry1 = 1730 mm
• Standard Entry Cross = 714 mm
• Sides / Bottom Right-Left = 714 mm
• Bottom Middle Entrance = 50 mm
• Bottom Right Entrance = 50 mm
• Bottom Left Entrance = 50 mmHeat Output
Kcal / h
• Heat Output 75/65-20° ∆t=50°C = 3053 Kcal/h
• Heat Output 90/70-20° ∆t=60°C = 3847 Kcal/h
• Heat Output 55/45-20° ∆t=30°C = 1564 Kcal/h
Watts
• Heat Output 75/65-20° ∆t=50°C = 3549 Watt
• Heat Output 90/70-20° ∆t=60°C = 4472 Watt
• Heat Output 55/45-20° ∆t=30°C = 1818 Watt
Btu
• Heat Output 75/65-20° ∆t=50°C = 12110 Btu
• Heat Output 90/70-20° ∆t=60°C = 15259 Btu
• Heat Output 55/45-20° ∆t=30°C = 6201 Btu
Warranty:10 YearsDelivery Information:45 Day Kolon Radyatörler İçin Duvara Montaj Videosu
Radyatör Duvara Montaj Aparatları Fiyata Dahildir!
Kolon Radyatörler İçin Ayak Montaj VideosuAyaklar Ayrı Satılmakta Olup, Radyatörünüzün Ölçüsüne Göre, Ürün Açıklamalarında Belirtilen Miktarda Ayağı Aksesuarlar Bölümünden Sepete Ekleyip Alabilirsiniz.
Other Colors
-
%45 DiscountAKS SeçenekleriDl 5 Column Radiator 1800x624 White ∆t50°C=3051 Kcal/h | ∆t60°C= 3899 Kcal/h | 13 Pipes | Heats 20-59 m2
-
%45 DiscountAKS SeçenekleriDl 5 Column Radiator 1800x624 Anthracite ∆t50°C=3051 Kcal/h | ∆t60°C= 3899 Kcal/h | 13 Pipes | Heats 20-59 m2
-
%45 DiscountAKS SeçenekleriDL 5 Column Radiator 1800x624 Matt Black ∆t50°C=3051 Kcal/h | ∆t60°C= 3899 Kcal/h | 13 Pipes | Heats 20-59 m2
-
%45 DiscountAKS SeçenekleriDL 5 Column Radiator 1800x624 Special Color Category 1 ∆t50°C=3051 Kcal/h | ∆t60°C= 3899 Kcal/h | 13 Pipes | Heats 20-59 m2
-
%45 DiscountAKS SeçenekleriDL 5 Column Radiator 1800x624 Special Color Category 2 ∆t50°C=3051 Kcal/h | ∆t60°C= 3899 Kcal/h | 13 Pipes | Heats 20-59 m2
