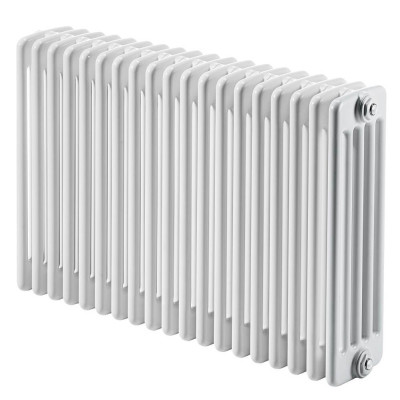

COLUMN RADIATOR TECHNICAL INFORMATION
• Model = 5K
• Material = Steel
• Height = 300 mm
• Width = 1314 mm
• Color = Special Color Category 1
• Number of Columns = 5
• Number of Sections = 28 Pieces
• Legs Needed If Free Standing = 3 Pieces
• Diameter of Vertical Pipes = 25 mm
• Maximum Working Pressure = 10 bar
• Wall to Center of Inlet = 128,5 mm
• Wall Projection Distance = 223 mm
• Section Width = 46 mm
• Radiator Depth = 189 mm
• Radiator Thread Dimension = 1/2"
• Water Volume = 28 lt
• Radiator Weight = 33,6 kgTAPPING OPTIONS
• Standard Entry1 = 230 mm
• Standard Entry Cross = 1404 mm
• Sides / Bottom Right-Left = 1404 mm
• Bottom Middle Entrance = 50 mm
• Bottom Right Entrance = 50 mm
• Bottom Left Entrance = 50 mmHeat Output
Kcal / h
• Heat Output 75/65-20° ∆t=50°C = 1251 Kcal/h
• Heat Output 90/70-20° ∆t=60°C = 1577 Kcal/h
• Heat Output 55/45-20° ∆t=30°C = 641 Kcal/h
Watts
• Heat Output 75/65-20° ∆t=50°C = 1454 Watt
• Heat Output 90/70-20° ∆t=60°C = 1833 Watt
• Heat Output 55/45-20° ∆t=30°C = 745 Watt
Btu
• Heat Output 75/65-20° ∆t=50°C = 4962 Btu
• Heat Output 90/70-20° ∆t=60°C = 6253 Btu
• Heat Output 55/45-20° ∆t=30°C = 2541 Btu
Warranty:10 YearsDelivery Information:45 Day Kolon Radyatörler İçin Duvara Montaj Videosu
Radyatör Duvara Montaj Aparatları Fiyata Dahildir!
Kolon Radyatörler İçin Ayak Montaj VideosuAyaklar Ayrı Satılmakta Olup, Radyatörünüzün Ölçüsüne Göre, Ürün Açıklamalarında Belirtilen Miktarda Ayağı Aksesuarlar Bölümünden Sepete Ekleyip Alabilirsiniz.
