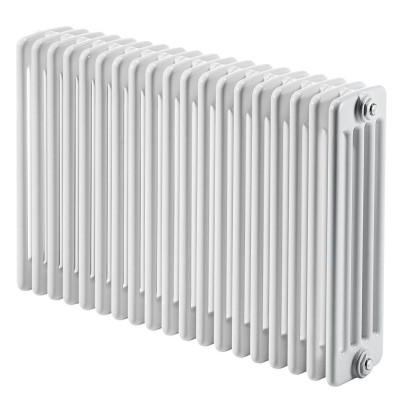

DL 5 Column Radiator 300x2096 Special Color Category 2

Product Code : 2D5C03002096X2XS
Guarantee : 10 Year
TAXES Included
Price
:
342,090.96 TL
Discounted Price
:
188,150.03 TL
<p>10 Year Warranty</p>
10 Years
Warranty
Kargo Bedava
2000€ +
Free Shipping
INSTALLATION CONNECTION OPTIONS

Standard / Cross Standard / Cross

Bottom Right - Bottom Left Bottom Right - Bottom Left

Lower Middle 50mm Lower Middle 50mm

Bottom Left 50mm Bottom Left 50mm

Bottom Right 50mm Bottom Right 50mm

Choose Quantity
Planned Delivery
:
09.04.2025 (45 Days)
İnstagram Takip Et
Campaign
  • Features
  • Downloads
  • Videos
  • Payment Options
  • Comments (0)

  • COLUMN RADIATOR TECHNICAL INFORMATION


    • Model = 5K

    • Material  = Steel

    • Height = 300 mm

    • Width   = 2096 mm

    • Color = Special Color Category 2

    • Number of Columns = 5

    • Number of Sections  = 45 Pieces

    • Legs Needed If Free Standing = 4 Pieces

    • Diameter of Vertical Pipes = 25 mm

    • Maximum Working Pressure = 10 bar

    • Wall to Center of Inlet = 128,5 mm

    • Wall Projection Distance  = 223 mm

    • Section Width    = 46 mm

    • Radiator Depth  = 189 mm

    • Radiator Thread Dimension     = 1/2"

    • Water Volume    = 45 lt

    • Radiator Weight    = 54 kg

    TAPPING OPTIONS



    • Standard Entry1    = 230 mm

    • Standard Entry Cross = 2186 mm

    • Sides / Bottom Right-Left  = 2186 mm

    • Bottom Middle Entrance = 50 mm

    • Bottom Right Entrance  = 50 mm

    • Bottom Left Entrance   = 50 mm

    Heat Output



    Kcal / h

    • Heat Output 75/65-20° ∆t=50°C = 2009 Kcal/h

    • Heat Output 90/70-20° ∆t=60°C = 2532 Kcal/h

    • Heat Output 55/45-20° ∆t=30°C = 1029 Kcal/h

    Watts

    • Heat Output 75/65-20° ∆t=50°C = 2336 Watt

    • Heat Output 90/70-20° ∆t=60°C = 2944 Watt

    • Heat Output 55/45-20° ∆t=30°C = 1197 Watt

    Btu

    • Heat Output 75/65-20° ∆t=50°C = 7971 Btu

    • Heat Output 90/70-20° ∆t=60°C = 10044 Btu

    • Heat Output 55/45-20° ∆t=30°C = 4082 Btu

    Warranty
    :
    10 Years
    Delivery Information
    :
    45 Day

  • Kolon Radyatörler İçin Duvara Montaj Videosu

    Radyatör Duvara Montaj Aparatları Fiyata Dahildir!





    Kolon Radyatörler İçin Ayak Montaj Videosu

    Ayaklar Ayrı Satılmakta Olup, Radyatörünüzün Ölçüsüne Göre, Ürün Açıklamalarında Belirtilen Miktarda Ayağı Aksesuarlar Bölümünden Sepete Ekleyip Alabilirsiniz.



Other Colors
  • %45 Discount - Dl 5 Column Radiator 300x2096 White
    AKS Seçenekleri
    Dl 5 Column Radiator 300x2096 White ∆t50°C=2009 Kcal/h | ∆t60°C= 2525 Kcal/h | 45 Pipes | Heats 13-39 m2
    235,924.80 TL
    129,758.64 TL
  • %45 Discount - Dl 5 Column Radiator 300x2096 Anthracite
    AKS Seçenekleri
    Dl 5 Column Radiator 300x2096 Anthracite ∆t50°C=2009 Kcal/h | ∆t60°C= 2525 Kcal/h | 45 Pipes | Heats 13-39 m2
    318,498.48 TL
    175,174.16 TL
  • %45 Discount - DL 5 Column Radiator 300x2096 Matt Black
    AKS Seçenekleri
    DL 5 Column Radiator 300x2096 Matt Black ∆t50°C=2009 Kcal/h | ∆t60°C= 2525 Kcal/h | 45 Pipes | Heats 13-39 m2
    318,498.48 TL
    175,174.16 TL
  • %45 Discount - DL 5 Column Radiator 300x2096 Special Color Category 1
    AKS Seçenekleri
    DL 5 Column Radiator 300x2096 Special Color Category 1 ∆t50°C=2009 Kcal/h | ∆t60°C= 2525 Kcal/h | 45 Pipes | Heats 13-39 m2
    318,498.48 TL
    175,174.16 TL
  • %45 Discount - DL 5 Column Radiator 300x2096 Special Color Category 2
    AKS Seçenekleri
    DL 5 Column Radiator 300x2096 Special Color Category 2 ∆t50°C=2009 Kcal/h | ∆t60°C= 2525 Kcal/h | 45 Pipes | Heats 13-39 m2
    342,090.96 TL
    188,150.03 TL
