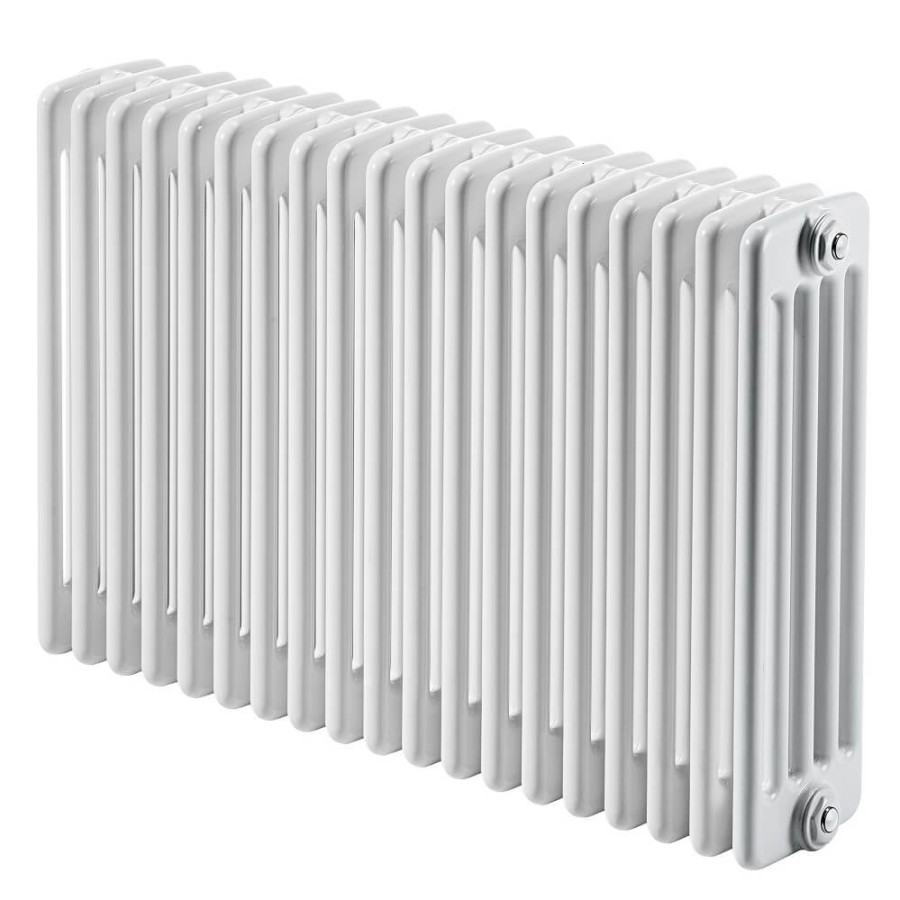

Dl 5 Column Radiator 300x2326 White

Product Code : 2D5C03002326B1PS
Guarantee : 10 Year
TAXES Included
Price
:
261,429.60 TL
Discounted Price
:
143,786.28 TL
<p>10 Year Warranty</p>
10 Years
Warranty
Kargo Bedava
2000€ +
Free Shipping
Options

Standard / Cross Standard / Cross

Bottom Right - Bottom Left Bottom Right - Bottom Left

Lower Middle 50mm Lower Middle 50mm

Bottom Left 50mm Bottom Left 50mm

Bottom Right 50mm Bottom Right 50mm

Choose Quantity
Planned Delivery
:
09.04.2025 (45 Days)
İnstagram Takip Et
Campaign
  • Features
  • Downloads
  • Videos
  • Payment Options
  • Comments (0)

  • COLUMN RADIATOR TECHNICAL INFORMATION


    • Model = 5K

    • Material  = Steel

    • Height = 300 mm

    • Width   = 2326 mm

    • Color = White

    • Number of Columns = 5

    • Number of Sections  = 50 Pieces

    • Legs Needed If Free Standing = 4 Pieces

    • Diameter of Vertical Pipes = 25 mm

    • Maximum Working Pressure = 10 bar

    • Wall to Center of Inlet = 128,5 mm

    • Wall Projection Distance  = 223 mm

    • Section Width    = 46 mm

    • Radiator Depth  = 189 mm

    • Radiator Thread Dimension     = 1/2"

    • Water Volume    = 50 lt

    • Radiator Weight    = 60 kg

    TAPPING OPTIONS



    • Standard Entry1    = 230 mm

    • Standard Entry Cross = 2416 mm

    • Sides / Bottom Right-Left  = 2416 mm

    • Bottom Middle Entrance = 50 mm

    • Bottom Right Entrance  = 50 mm

    • Bottom Left Entrance   = 50 mm

    Heat Output



    Kcal / h

    • Heat Output 75/65-20° ∆t=50°C = 2232 Kcal/h

    • Heat Output 90/70-20° ∆t=60°C = 2813 Kcal/h

    • Heat Output 55/45-20° ∆t=30°C = 1143 Kcal/h

    Watts

    • Heat Output 75/65-20° ∆t=50°C = 2595 Watt

    • Heat Output 90/70-20° ∆t=60°C = 3270 Watt

    • Heat Output 55/45-20° ∆t=30°C = 1329 Watt

    Btu

    • Heat Output 75/65-20° ∆t=50°C = 8855 Btu

    • Heat Output 90/70-20° ∆t=60°C = 11158 Btu

    • Heat Output 55/45-20° ∆t=30°C = 4534 Btu

    Warranty
    :
    10 Years
    Delivery Information
    :
    45 Day

  • Kolon Radyatörler İçin Duvara Montaj Videosu

    Radyatör Duvara Montaj Aparatları Fiyata Dahildir!





    Kolon Radyatörler İçin Ayak Montaj Videosu

    Ayaklar Ayrı Satılmakta Olup, Radyatörünüzün Ölçüsüne Göre, Ürün Açıklamalarında Belirtilen Miktarda Ayağı Aksesuarlar Bölümünden Sepete Ekleyip Alabilirsiniz.
