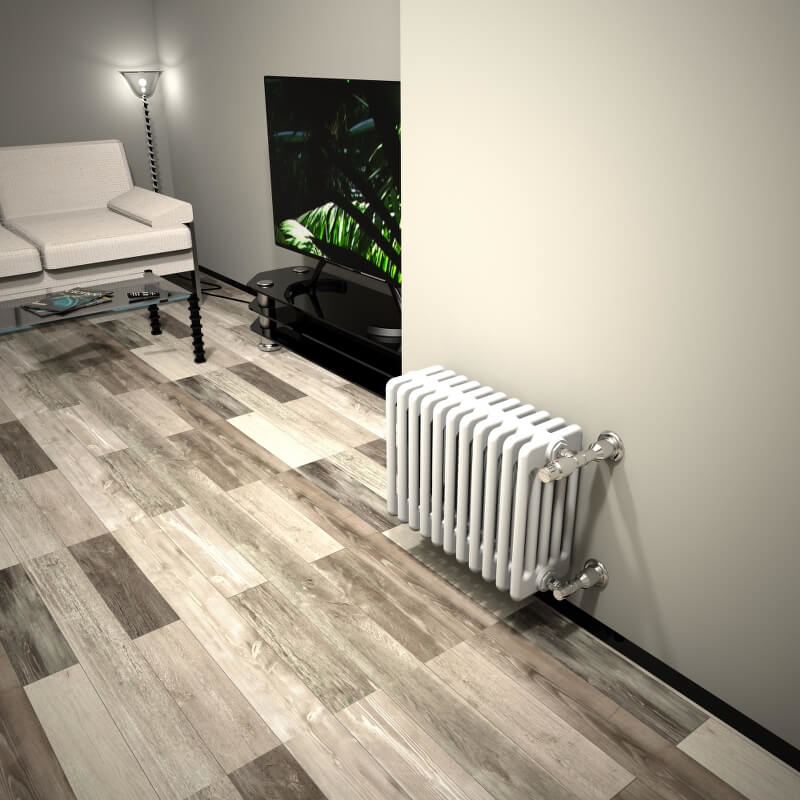

DL 5 Column Radiator 400x532 White

COLUMN RADIATOR TECHNICAL INFORMATION

• Model = 5K

• Material  = Steel

• Height = 400 mm

• Width   = 532 mm

• Color = White

• Number of Columns = 5

• Number of Sections  = 11 Pieces

• Legs Needed If Free Standing = 2 Pieces

• Diameter of Vertical Pipes = 25 mm

• Maximum Working Pressure = 10 bar

• Wall to Center of Inlet = 128,5 mm

• Wall Projection Distance  = 223 mm

• Section Width    = 46 mm

• Radiator Depth  = 189 mm

• Radiator Thread Dimension     = 1/2"

• Water Volume    = 13,2 lt

• Radiator Weight    = 17,6 kg

TAPPING OPTIONS

• Standard Entry1    = 330 mm

• Standard Entry Cross = 622 mm

• Sides / Bottom Right-Left  = 622 mm

• Bottom Middle Entrance = 50 mm

• Bottom Right Entrance  = 50 mm

• Bottom Left Entrance   = 50 mm

Heat Output

Kcal / h

• Heat Output 75/65-20° ∆t=50°C = 637 Kcal/h

• Heat Output 90/70-20° ∆t=60°C = 803 Kcal/h

• Heat Output 55/45-20° ∆t=30°C = 327 Kcal/h

Watts

• Heat Output 75/65-20° ∆t=50°C = 740 Watt

• Heat Output 90/70-20° ∆t=60°C = 933 Watt

• Heat Output 55/45-20° ∆t=30°C = 379 Watt

Btu

• Heat Output 75/65-20° ∆t=50°C = 2525 Btu

• Heat Output 90/70-20° ∆t=60°C = 3182 Btu

• Heat Output 55/45-20° ∆t=30°C = 1293 Btu
