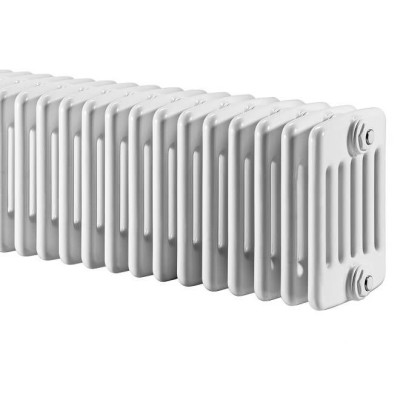

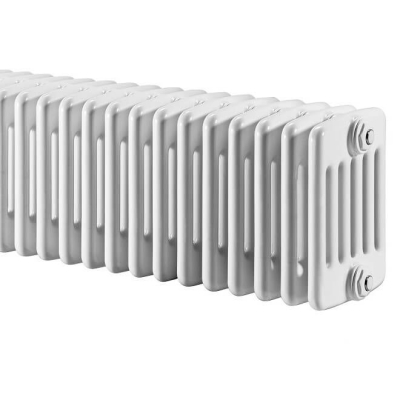

COLUMN RADIATOR TECHNICAL INFORMATION
• Model = 6K
• Material = Steel
• Height = 1800 mm
• Width = 440 mm
• Color = Special Color Category 2
• Number of Columns = 6
• Number of Sections = 9 Pieces
• Legs Needed If Free Standing = 2 Pieces
• Diameter of Vertical Pipes = 25 mm
• Maximum Working Pressure = 10 bar
• Wall to Center of Inlet = 149 mm
• Wall Projection Distance = 264 mm
• Section Width = 46 mm
• Radiator Depth = 230 mm
• Radiator Thread Dimension = 1/2"
• Water Volume = 42,3 lt
• Radiator Weight = 69,3 kgTAPPING OPTIONS
• Standard Entry1 = 1730 mm
• Standard Entry Cross = 530 mm
• Sides / Bottom Right-Left = 530 mm
• Bottom Middle Entrance = 50 mm
• Bottom Right Entrance = 50 mm
• Bottom Left Entrance = 50 mmHeat Output
Kcal / h
• Heat Output 75/65-20° ∆t=50°C = 2547 Kcal/h
• Heat Output 90/70-20° ∆t=60°C = 3210 Kcal/h
• Heat Output 55/45-20° ∆t=30°C = 1305 Kcal/h
Watts
• Heat Output 75/65-20° ∆t=50°C = 2961 Watt
• Heat Output 90/70-20° ∆t=60°C = 3731 Watt
• Heat Output 55/45-20° ∆t=30°C = 1517 Watt
Btu
• Heat Output 75/65-20° ∆t=50°C = 10103 Btu
• Heat Output 90/70-20° ∆t=60°C = 12730 Btu
• Heat Output 55/45-20° ∆t=30°C = 5173 Btu
Warranty:10 YearsDelivery Information:45 Day Kolon Radyatörler İçin Duvara Montaj Videosu
Radyatör Duvara Montaj Aparatları Fiyata Dahildir!
Kolon Radyatörler İçin Ayak Montaj VideosuAyaklar Ayrı Satılmakta Olup, Radyatörünüzün Ölçüsüne Göre, Ürün Açıklamalarında Belirtilen Miktarda Ayağı Aksesuarlar Bölümünden Sepete Ekleyip Alabilirsiniz.
