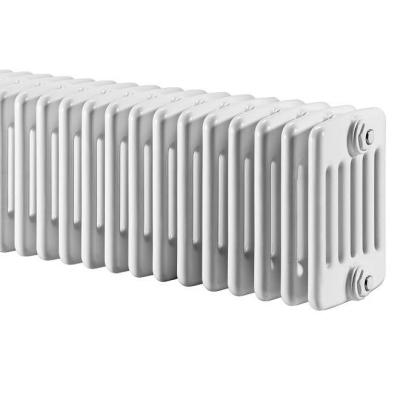

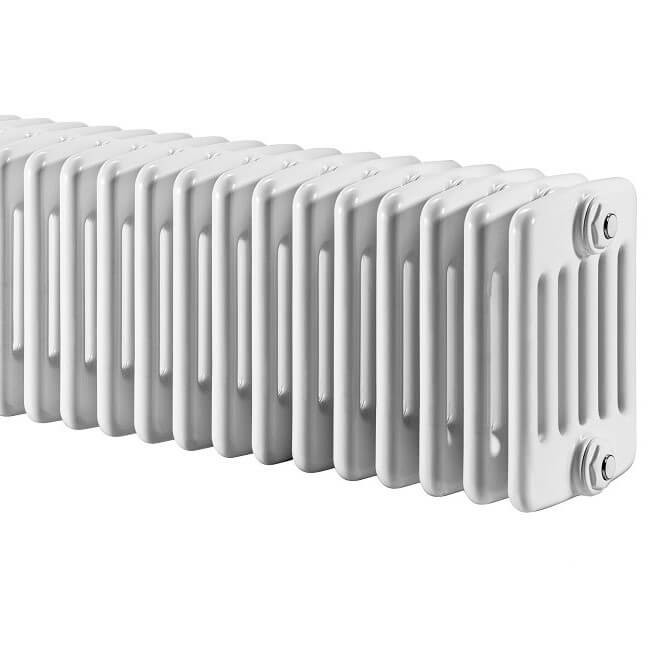

COLUMN RADIATOR TECHNICAL INFORMATION
• Model = 6K
• Material = Steel
• Height = 300 mm
• Width = 624 mm
• Color = White
• Number of Columns = 6
• Number of Sections = 13 Pieces
• Legs Needed If Free Standing = 2 Pieces
• Diameter of Vertical Pipes = 25 mm
• Maximum Working Pressure = 10 bar
• Wall to Center of Inlet = 149 mm
• Wall Projection Distance = 264 mm
• Section Width = 46 mm
• Radiator Depth = 230 mm
• Radiator Thread Dimension = 1/2"
• Water Volume = 14,3 lt
• Radiator Weight = 19,5 kgTAPPING OPTIONS
• Standard Entry1 = 230 mm
• Standard Entry Cross = 714 mm
• Sides / Bottom Right-Left = 714 mm
• Bottom Middle Entrance = 50 mm
• Bottom Right Entrance = 50 mm
• Bottom Left Entrance = 50 mmHeat Output
Kcal / h
• Heat Output 75/65-20° ∆t=50°C = 697 Kcal/h
• Heat Output 90/70-20° ∆t=60°C = 879 Kcal/h
• Heat Output 55/45-20° ∆t=30°C = 357 Kcal/h
Watts
• Heat Output 75/65-20° ∆t=50°C = 810 Watt
• Heat Output 90/70-20° ∆t=60°C = 1021 Watt
• Heat Output 55/45-20° ∆t=30°C = 415 Watt
Btu
• Heat Output 75/65-20° ∆t=50°C = 2764 Btu
• Heat Output 90/70-20° ∆t=60°C = 3483 Btu
• Heat Output 55/45-20° ∆t=30°C = 1416 Btu
Warranty:10 YearsDelivery Information:45 Day Kolon Radyatörler İçin Duvara Montaj Videosu
Radyatör Duvara Montaj Aparatları Fiyata Dahildir!
Kolon Radyatörler İçin Ayak Montaj VideosuAyaklar Ayrı Satılmakta Olup, Radyatörünüzün Ölçüsüne Göre, Ürün Açıklamalarında Belirtilen Miktarda Ayağı Aksesuarlar Bölümünden Sepete Ekleyip Alabilirsiniz.
