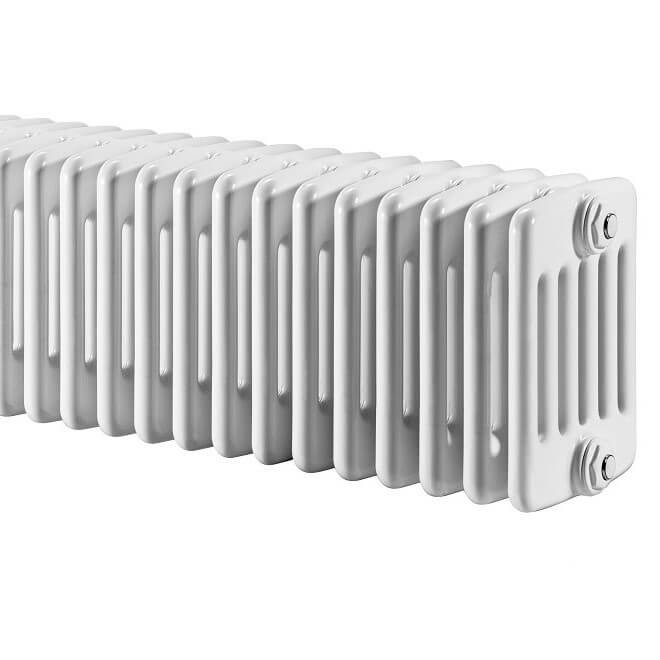

COLUMN RADIATOR TECHNICAL INFORMATION
• Model = 6K
• Material = Steel
• Height = 400 mm
• Width = 2234 mm
• Color = Special Color Category 1
• Number of Columns = 6
• Number of Sections = 48 Pieces
• Legs Needed If Free Standing = 4 Pieces
• Diameter of Vertical Pipes = 25 mm
• Maximum Working Pressure = 10 bar
• Wall to Center of Inlet = 149 mm
• Wall Projection Distance = 264 mm
• Section Width = 46 mm
• Radiator Depth = 230 mm
• Radiator Thread Dimension = 1/2"
• Water Volume = 62,4 lt
• Radiator Weight = 91,2 kgTAPPING OPTIONS
• Standard Entry1 = 330 mm
• Standard Entry Cross = 2324 mm
• Sides / Bottom Right-Left = 2324 mm
• Bottom Middle Entrance = 50 mm
• Bottom Right Entrance = 50 mm
• Bottom Left Entrance = 50 mmHeat Output
Kcal / h
• Heat Output 75/65-20° ∆t=50°C = 3344 Kcal/h
• Heat Output 90/70-20° ∆t=60°C = 4214 Kcal/h
• Heat Output 55/45-20° ∆t=30°C = 1713 Kcal/h
Watts
• Heat Output 75/65-20° ∆t=50°C = 3888 Watt
• Heat Output 90/70-20° ∆t=60°C = 4899 Watt
• Heat Output 55/45-20° ∆t=30°C = 1991 Watt
Btu
• Heat Output 75/65-20° ∆t=50°C = 13266 Btu
• Heat Output 90/70-20° ∆t=60°C = 16716 Btu
• Heat Output 55/45-20° ∆t=30°C = 6793 Btu
Warranty:10 YearsDelivery Information:45 Day Kolon Radyatörler İçin Duvara Montaj Videosu
Radyatör Duvara Montaj Aparatları Fiyata Dahildir!
Kolon Radyatörler İçin Ayak Montaj VideosuAyaklar Ayrı Satılmakta Olup, Radyatörünüzün Ölçüsüne Göre, Ürün Açıklamalarında Belirtilen Miktarda Ayağı Aksesuarlar Bölümünden Sepete Ekleyip Alabilirsiniz.
