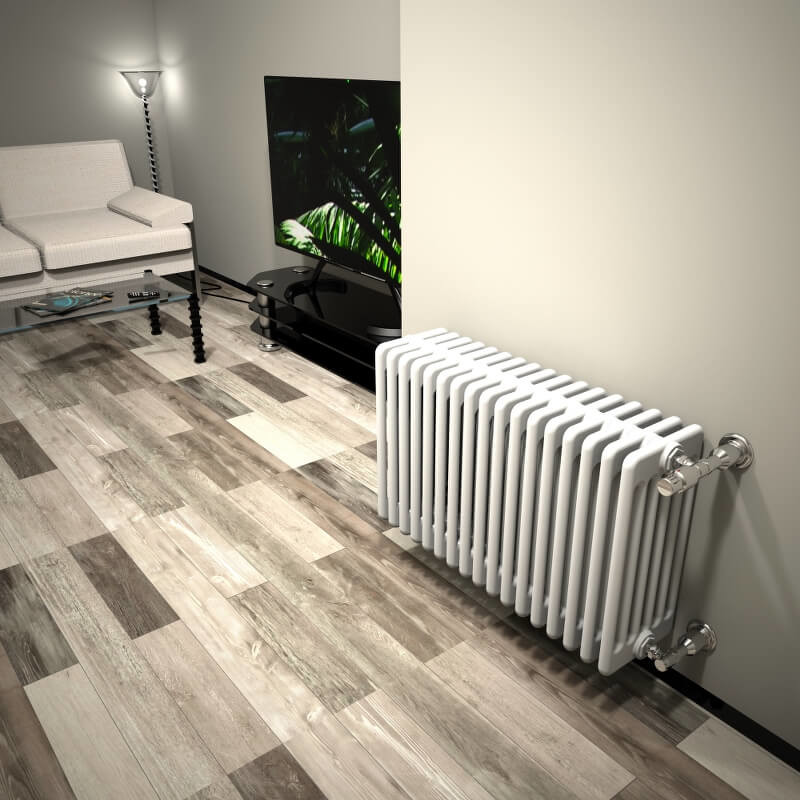

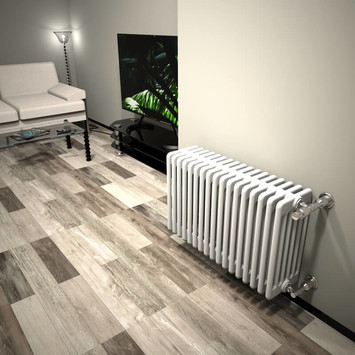

DL 6 Column Radiator 500x808 White

COLUMN RADIATOR TECHNICAL INFORMATION

• Model = 6K

• Material  = Steel

• Height = 500 mm

• Width   = 808 mm

• Color = White

• Number of Columns = 6

• Number of Sections  = 17 Pieces

• Legs Needed If Free Standing = 2 Pieces

• Diameter of Vertical Pipes = 25 mm

• Maximum Working Pressure = 10 bar

• Wall to Center of Inlet = 149 mm

• Wall Projection Distance  = 264 mm

• Section Width    = 46 mm

• Radiator Depth  = 230 mm

• Radiator Thread Dimension     = 1/2"

• Water Volume    = 27,2 lt

• Radiator Weight    = 39,1 kg

TAPPING OPTIONS

• Standard Entry1    = 430 mm

• Standard Entry Cross = 898 mm

• Sides / Bottom Right-Left  = 898 mm

• Bottom Middle Entrance = 50 mm

• Bottom Right Entrance  = 50 mm

• Bottom Left Entrance   = 50 mm

Heat Output

Kcal / h

• Heat Output 75/65-20° ∆t=50°C = 1454 Kcal/h

• Heat Output 90/70-20° ∆t=60°C = 1833 Kcal/h

• Heat Output 55/45-20° ∆t=30°C = 745 Kcal/h

Watts

• Heat Output 75/65-20° ∆t=50°C = 1690 Watt

• Heat Output 90/70-20° ∆t=60°C = 2130 Watt

• Heat Output 55/45-20° ∆t=30°C = 866 Watt

Btu

• Heat Output 75/65-20° ∆t=50°C = 5767 Btu

• Heat Output 90/70-20° ∆t=60°C = 7267 Btu

• Heat Output 55/45-20° ∆t=30°C = 2953 Btu
