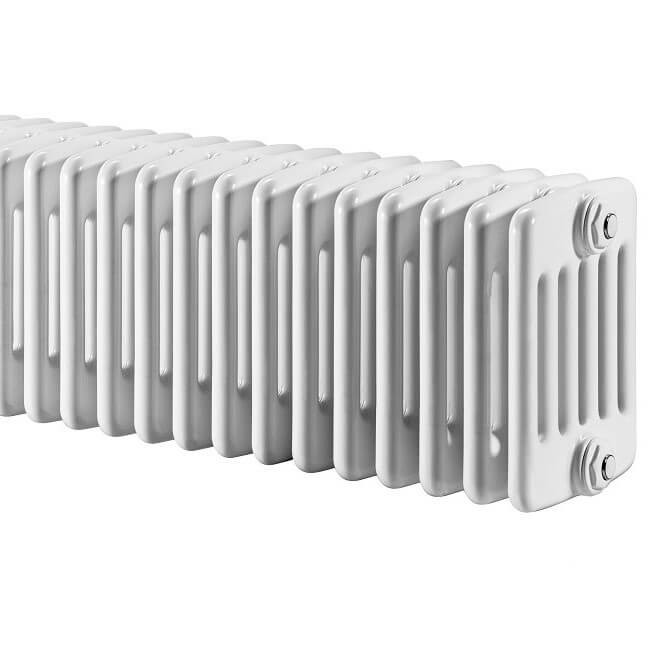

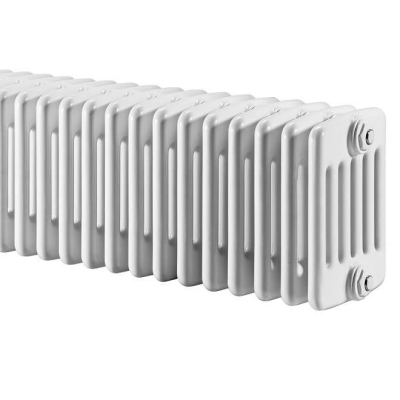

Dl 6 Column Radiator 900x1820 White

Product Code : 2D6C09001820B1PS
Guarantee : 10 Year
TAXES Included
Price
:
217,040.40 TL
Discounted Price
:
119,372.22 TL
<p>10 Year Warranty</p>
10 Years
Warranty
Kargo Bedava
2000€ +
Free Shipping
Options

Standard / Cross Standard / Cross

Bottom Right - Bottom Left Bottom Right - Bottom Left

Lower Middle 50mm Lower Middle 50mm

Bottom Left 50mm Bottom Left 50mm

Bottom Right 50mm Bottom Right 50mm

Choose Quantity
Planned Delivery
:
06.04.2025 (45 Days)
İnstagram Takip Et
Campaign
  • Features
  • Downloads
  • Videos
  • Payment Options
  • Comments (0)

  • COLUMN RADIATOR TECHNICAL INFORMATION


    • Model = 6K

    • Material  = Steel

    • Height = 900 mm

    • Width   = 1820 mm

    • Color = White

    • Number of Columns = 6

    • Number of Sections  = 39 Pieces

    • Legs Needed If Free Standing = 4 Pieces

    • Diameter of Vertical Pipes = 25 mm

    • Maximum Working Pressure = 10 bar

    • Wall to Center of Inlet = 149 mm

    • Wall Projection Distance  = 264 mm

    • Section Width    = 46 mm

    • Radiator Depth  = 230 mm

    • Radiator Thread Dimension     = 1/2"

    • Water Volume    = 97,5 lt

    • Radiator Weight    = 156 kg

    TAPPING OPTIONS



    • Standard Entry1    = 830 mm

    • Standard Entry Cross = 1910 mm

    • Sides / Bottom Right-Left  = 1910 mm

    • Bottom Middle Entrance = 50 mm

    • Bottom Right Entrance  = 50 mm

    • Bottom Left Entrance   = 50 mm

    Heat Output



    Kcal / h

    • Heat Output 75/65-20° ∆t=50°C = 5736 Kcal/h

    • Heat Output 90/70-20° ∆t=60°C = 7228 Kcal/h

    • Heat Output 55/45-20° ∆t=30°C = 2937 Kcal/h

    Watts

    • Heat Output 75/65-20° ∆t=50°C = 6669 Watt

    • Heat Output 90/70-20° ∆t=60°C = 8403 Watt

    • Heat Output 55/45-20° ∆t=30°C = 3415 Watt

    Btu

    • Heat Output 75/65-20° ∆t=50°C = 22755 Btu

    • Heat Output 90/70-20° ∆t=60°C = 28672 Btu

    • Heat Output 55/45-20° ∆t=30°C = 11651 Btu

    Warranty
    :
    10 Years
    Delivery Information
    :
    45 Day

  • Kolon Radyatörler İçin Duvara Montaj Videosu

    Radyatör Duvara Montaj Aparatları Fiyata Dahildir!





    Kolon Radyatörler İçin Ayak Montaj Videosu

    Ayaklar Ayrı Satılmakta Olup, Radyatörünüzün Ölçüsüne Göre, Ürün Açıklamalarında Belirtilen Miktarda Ayağı Aksesuarlar Bölümünden Sepete Ekleyip Alabilirsiniz.
