TECHNICAL INFORMATION

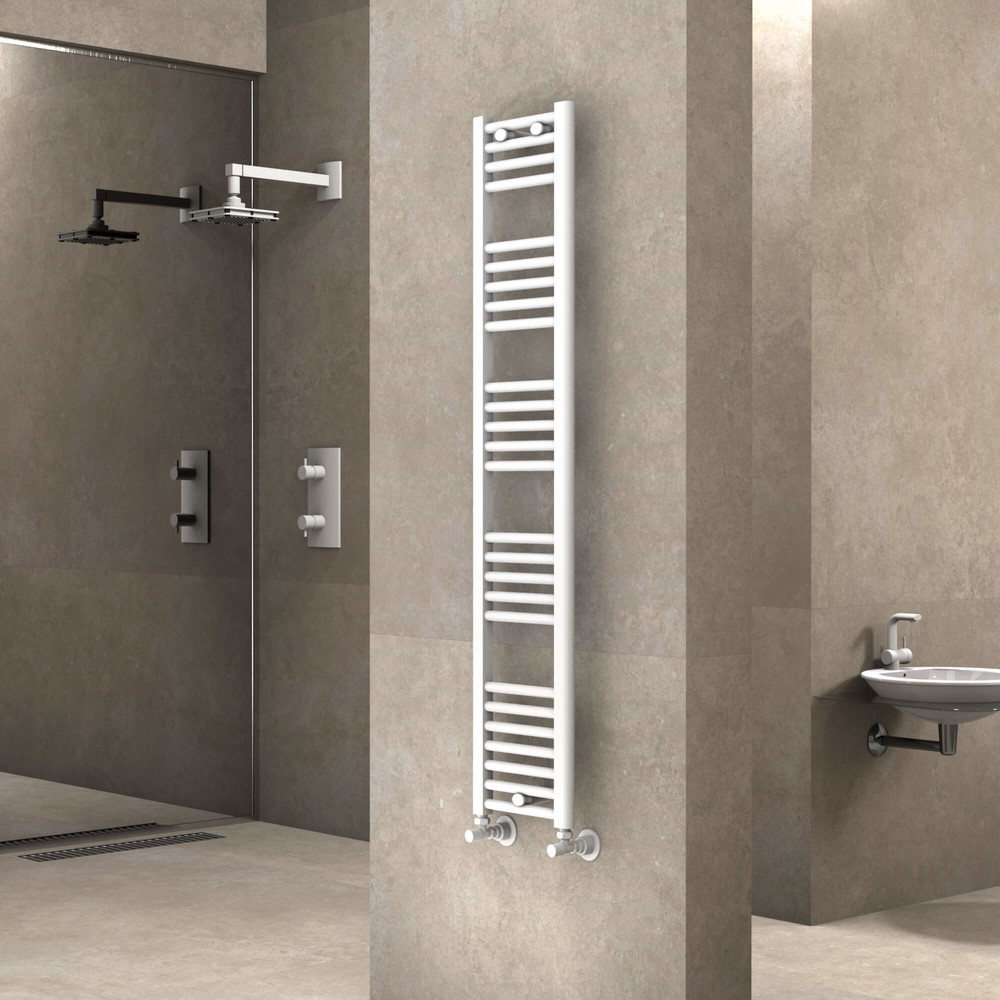

• Model = Haiti
• Material =Steel
• Width= 300mm
• Height = 1500mm
• Tapping Distance = 255 mm
• Color / Coating = White
• Horizontal Pipe Quantity= 26Pieces
• Horizontal Pipe Dimension = 22mm
• Vertical Collector Size= 30x40mm D Profilee
• Maximum Working Pressure= 10bar
• Wall to Center of Inlet= 65-85 mm
• Wall Projection Distance=80-100 mm
• Towel Warmer Thread Dimension=1/2"
• Water Volume= 4,6lt
• Weight= 6,7kg
• Boxed Weight=7,4kg
• Box Size= 32x152x3,8cm
• Assembly Set Is Included In The Price,Included in the Box.
• Prices do not include valves pls. refer to page "Valves" to see our range
• Prices do not include pipe sleeves pls. refer to page "Accessories" to see our rangeHeat Output
Kcal/h
• Heat Output 75/65-20°?t=50°C = 358Kcal/h
• Heat Output 90/70-20° ?t=60°C= 452Kcal/h
• Heat Output 55/45-20° ?t=30°C= 184Kcal/h
Watts
• Heat Output 75/65-20°?t=50°C= 416Watt
• Heat Output 90/70-20°?t=60°C= 525Watt
• Heat Output 55/45-20°?t=30°C= 213Watt
Btu
• Heat Output 75/65-20°?t=50°C= 1420Btu
• Heat Output 90/70-20°?t=60°C= 1790Btu
• Heat Output 55/45-20°?t=30°C= 728Btu
Warranty:5 YearsDelivery Information:1 Day -
