TECHNICAL INFORMATION

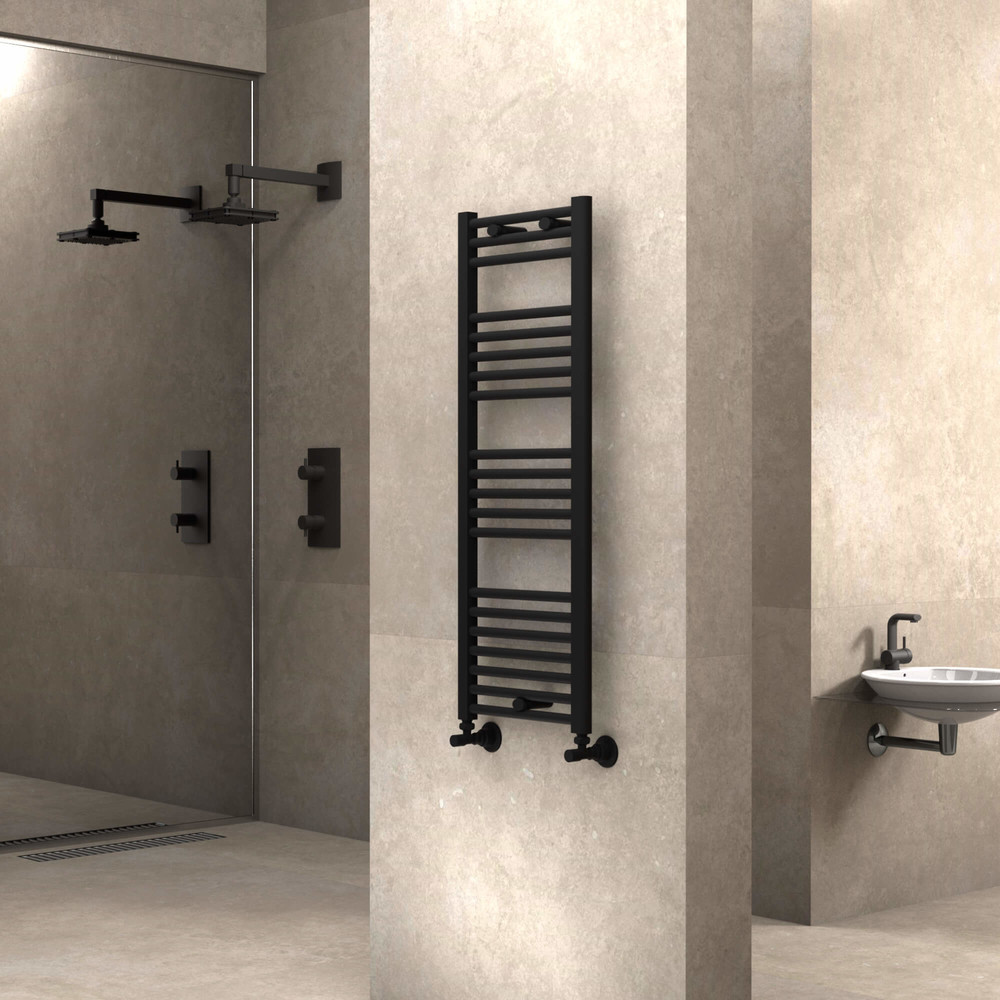

• Model = Haiti
• Material =Steel
• Width= 400mm
• Height = 1100mm
• Tapping Distance = 355 mm
• Color / Coating = Matte Black
• Horizontal Pipe Quantity= 20Pieces
• Horizontal Pipe Dimension = 22mm
• Vertical Collector Size= 30x40mm D Profile
• Maximum Working Pressure= 10bar
• Wall to Center of Inlet= 65-85 mm
• Wall Projection Distance=80-100 mm
• Towel Warmer Thread Dimension=1/2"
• Water Volume= 4,1lt
• Weight= 5,6kg
• Boxed Weight=6,2kg
• Box Size= 42x112x3,8cm
• Assembly Set Is Included In The Price,Included in the Box.
Prices do not include pipe sleeves pls. refer to page "Accessories" to see our rangeHeat Output
Kcal/h
• Heat Output 75/65-20°?t=50°C = 342Kcal/h
• Heat Output 90/70-20° ?t=60°C= 431Kcal/h
• Heat Output 55/45-20° ?t=30°C= 176Kcal/h
Watts
• Heat Output 75/65-20°?t=50°C= 398Watt
• Heat Output 90/70-20°?t=60°C= 501Watt
• Heat Output 55/45-20°?t=30°C= 204Watt
Btu
• Heat Output 75/65-20°?t=50°C= 1357Btu
• Heat Output 90/70-20°?t=60°C= 1710Btu
• Heat Output 55/45-20°?t=30°C= 695Btu
Warranty:5 YearsDelivery Information:15 Day -
Other Colors
-
%45 DiscountAKS SeçenekleriHaiti Towel Warmer 400x1100 White 20 Pipes | 355mm Aks |∆t50°C= 342 Kcal/h | ∆t60°C= 431 Kcal/h | Heats2-7 m2
-
%45 DiscountAKS SeçenekleriHaiti Towel Warmer 400x1100 Anthracite 20 Pipes | 355mm Aks |∆t50°C= 342 Kcal/h | ∆t60°C= 431 Kcal/h | Heats2-7 m2
-
%45 DiscountAKS SeçenekleriHaiti Towel Warmer 400x1100 Matte Black 20 Pipes | 355mm Aks |∆t50°C= 342 Kcal/h | ∆t60°C= 431 Kcal/h | Heats2-7 m2
-
%45 DiscountAKS SeçenekleriHaiti Towel Warmer 400x1100 Chrome 20 Pipes | 355mm Aks |∆t50°C= 223 Kcal/h | ∆t60°C= 281 Kcal/h | Heats1-4 m2
-
%45 DiscountAKS SeçenekleriHaiti Towel Warmer 400x1100 Gold 20 Pipes | 355mm Aks |∆t50°C= 223 Kcal/h | ∆t60°C= 281 Kcal/h | Heats1-4 m2
-
%45 DiscountAKS SeçenekleriHaiti Towel Warmer 400x1100 Copper Antique 20 Pipes | 355mm Aks |∆t50°C= 223 Kcal/h | ∆t60°C= 281 Kcal/h | Heats1-4 m2
-
%45 DiscountAKS SeçenekleriHaiti Towel Warmer 400x1100 Wood Effect 20 Pipes | 355mm Aks |∆t50°C= 342 Kcal/h | ∆t60°C= 431 Kcal/h | Heats2-7 m2
