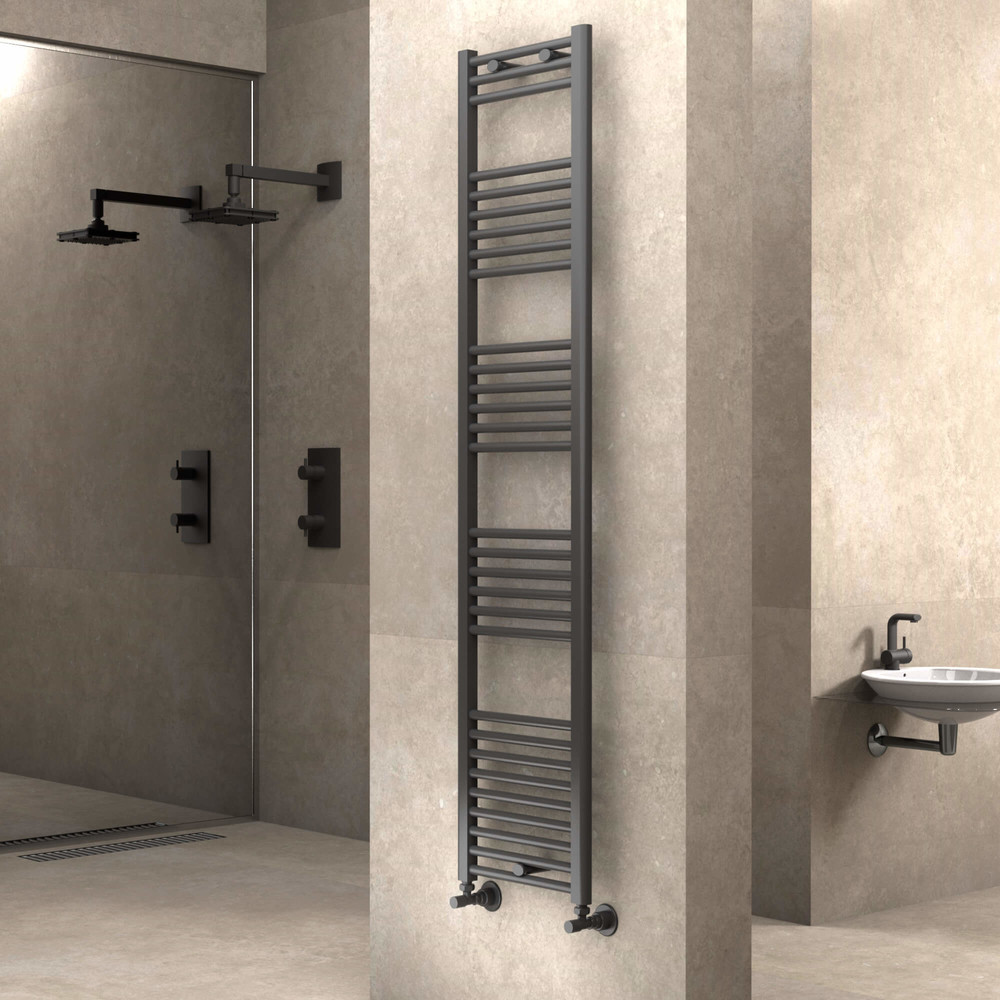

Haiti Towel Warmer 400x1800 Anthracite

TECHNICAL INFORMATION

• Model = Haiti

• Material =Steel

• Width= 400mm

• Height = 1800mm

• Tapping Distance = 355 mm

• Color / Coating = Anthracite

• Horizontal Pipe Quantity= 30Pieces

• Horizontal Pipe Dimension = 22mm

• Vertical Collector Size= 30x40mm D Profile

• Maximum Working Pressure= 10bar

• Wall to Center of Inlet= 65-85 mm

• Wall Projection Distance=80-100 mm

• Towel Warmer Thread Dimension=1/2"

• Water Volume= 6,4lt

• Weight= 8,8kg

• Boxed Weight=9,5kg

• Box Size= 42x182x3,8cm

• Assembly Set Is Included In The Price,Included in the Box.





Prices do not include pipe sleeves pls. refer to page "Accessories" to see our range

Heat Output

Kcal/h


• Heat Output 75/65-20°?t=50°C = 519Kcal/h

• Heat Output 90/70-20° ?t=60°C= 654Kcal/h

• Heat Output 55/45-20° ?t=30°C= 266Kcal/h


Watts

• Heat Output 75/65-20°?t=50°C= 602Watt

• Heat Output 90/70-20°?t=60°C= 760Watt

• Heat Output 55/45-20°?t=30°C= 309Watt


Btu

• Heat Output 75/65-20°?t=50°C= 2056Btu

• Heat Output 90/70-20°?t=60°C= 2591Btu

• Heat Output 55/45-20°?t=30°C= 1053Btu
