TECHNICAL INFORMATION

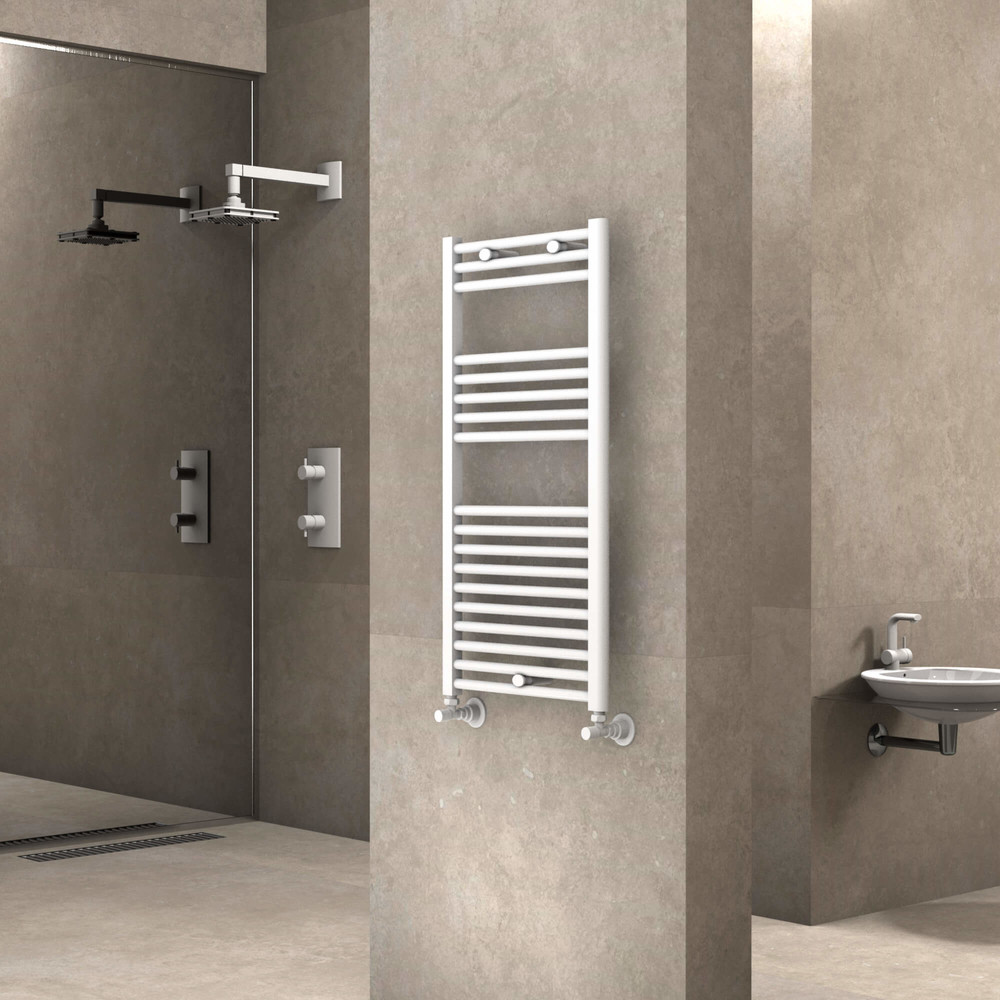

• Model = Haiti
• Material =Steel
• Width= 500mm
• Height = 1000mm
• Tapping Distance = 455 mm
• Color / Coating = White
• Horizontal Pipe Quantity= 18Pieces
• Horizontal Pipe Dimension = 22mm
• Vertical Collector Size= 30x40mm D Profilee
• Maximum Working Pressure= 10bar
• Wall to Center of Inlet= 65-85 mm
• Wall Projection Distance=80-100 mm
• Towel Warmer Thread Dimension=1/2"
• Water Volume= 4,3lt
• Weight= 5,8kg
• Boxed Weight=6,5kg
• Box Size= 52x102x3,8cm
• Assembly Set Is Included In The Price,Included in the Box.
• Prices do not include valves pls. refer to page "Valves" to see our range
• Prices do not include pipe sleeves pls. refer to page "Accessories" to see our rangeHeat Output
Kcal/h
• Heat Output 75/65-20°?t=50°C = 369Kcal/h
• Heat Output 90/70-20° ?t=60°C= 465Kcal/h
• Heat Output 55/45-20° ?t=30°C= 189Kcal/h
Watts
• Heat Output 75/65-20°?t=50°C= 429Watt
• Heat Output 90/70-20°?t=60°C= 541Watt
• Heat Output 55/45-20°?t=30°C= 220Watt
Btu
• Heat Output 75/65-20°?t=50°C= 1464Btu
• Heat Output 90/70-20°?t=60°C= 1845Btu
• Heat Output 55/45-20°?t=30°C= 750Btu
Warranty:5 YearsDelivery Information:1 Day -
Other Colors
-
%45 Discount
AKS SeçenekleriHaiti Towel Warmer 500x1000 White 18 Pipes | 455mm Aks |∆t50°C= 372 Kcal/h | ∆t60°C= 469 Kcal/h | Heats2-7 m2 -
%45 Discount
AKS SeçenekleriHaiti Towel Warmer 500x1000 Anthracite 18 Pipes | 455mm Aks |∆t50°C= 372 Kcal/h | ∆t60°C= 469 Kcal/h | Heats2-7 m2
-
%45 Discount
AKS SeçenekleriHaiti Towel Warmer 500x1000 Matte Black 18 Pipes | 455mm Aks |∆t50°C= 372 Kcal/h | ∆t60°C= 469 Kcal/h | Heats2-7 m2
-
%45 Discount
AKS SeçenekleriHaiti Towel Warmer 500x1000 Chrome 18 Pipes | 455mm Aks |∆t50°C= 243 Kcal/h | ∆t60°C= 306 Kcal/h | Heats2-5 m2
-
%45 Discount
AKS SeçenekleriHaiti Towel Warmer 500x1000 Gold 18 Pipes | 455mm Aks |∆t50°C= 243 Kcal/h | ∆t60°C= 306 Kcal/h | Heats2-5 m2
-
%45 Discount

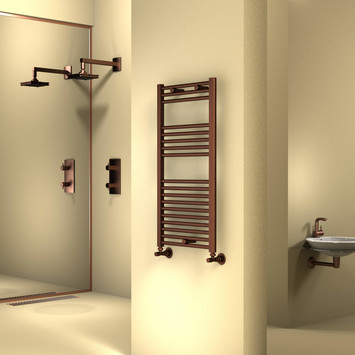

AKS SeçenekleriHaiti Towel Warmer 500x1000 Copper Antique 18 Pipes | 455mm Aks |∆t50°C= 243 Kcal/h | ∆t60°C= 306 Kcal/h | Heats2-5 m2
-
%45 Discount
AKS SeçenekleriHaiti Towel Warmer 500x1000 Wood Effect 18 Pipes | 455mm Aks |∆t50°C= 372 Kcal/h | ∆t60°C= 469 Kcal/h | Heats2-7 m2
Accessories
-
%45 Discount
AKS SeçenekleriRadiator Valve 1/2'' White Corner (Metal Head) PPRC ve Demir Boru Tesisatlara Uygundur
-
%45 Discount
AKS SeçenekleriRadiator Valve 1/2'' White Corner Pex (Metal Head 16x2 Connection) Pex Boru Tesisatlara Uygundur
-
%45 Discount
AKS SeçenekleriRadiator Valve 1/2'' Corner PPRC ve Demir Boru Tesisatlara Uygundur
-
%45 Discount
AKS SeçenekleriRadiator Valve 1/2'' Eco Corner PPRC ve Demir Boru Tesisatlara Uygundur
-
%45 Discount
AKS SeçenekleriRadiator Valve 1/2'' Corner Pex (16x2 Connection) Pex Boru Tesisatlara Uygundur
-
%45 Discount
AKS SeçenekleriRadiator Valve 1/2'' Eco Corner Pex (16x2 Connection) Pex Boru Tesisatlara Uygundur
-
%45 Discount
AKS Seçenekleri
-
%45 Discount
AKS SeçenekleriRadiator Return Valve 1/2'' Corner PPRC ve Demir Boru Tesisatlara Uygundur
-
%45 Discount
AKS SeçenekleriRadiator Return Valve 1/2'' Corner (16x2 Connection) Pex Boru Tesisatlara Uygundur
-
%45 Discount
AKS SeçenekleriTowel Warmer Tube Hiding Sleeve Plug-In Plastic White Pex Boru Tesisatlara Uygundur
-
%45 Discount
AKS SeçenekleriTowel Warmer Tube Hiding Sleeve Stringed Plastic White Pex Boru Tesisatlara Uygundur
-
%45 Discount

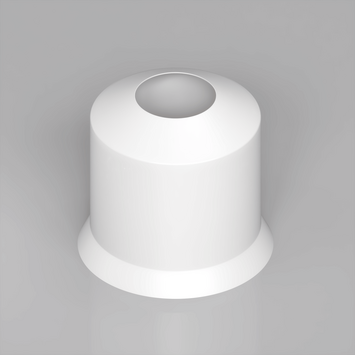

AKS SeçenekleriPPRC Towel Warmer Tube Hiding Sleeve White PPRC ve Demir Boru Tesisatlara Uygundur
-
