TECHNICAL INFORMATION

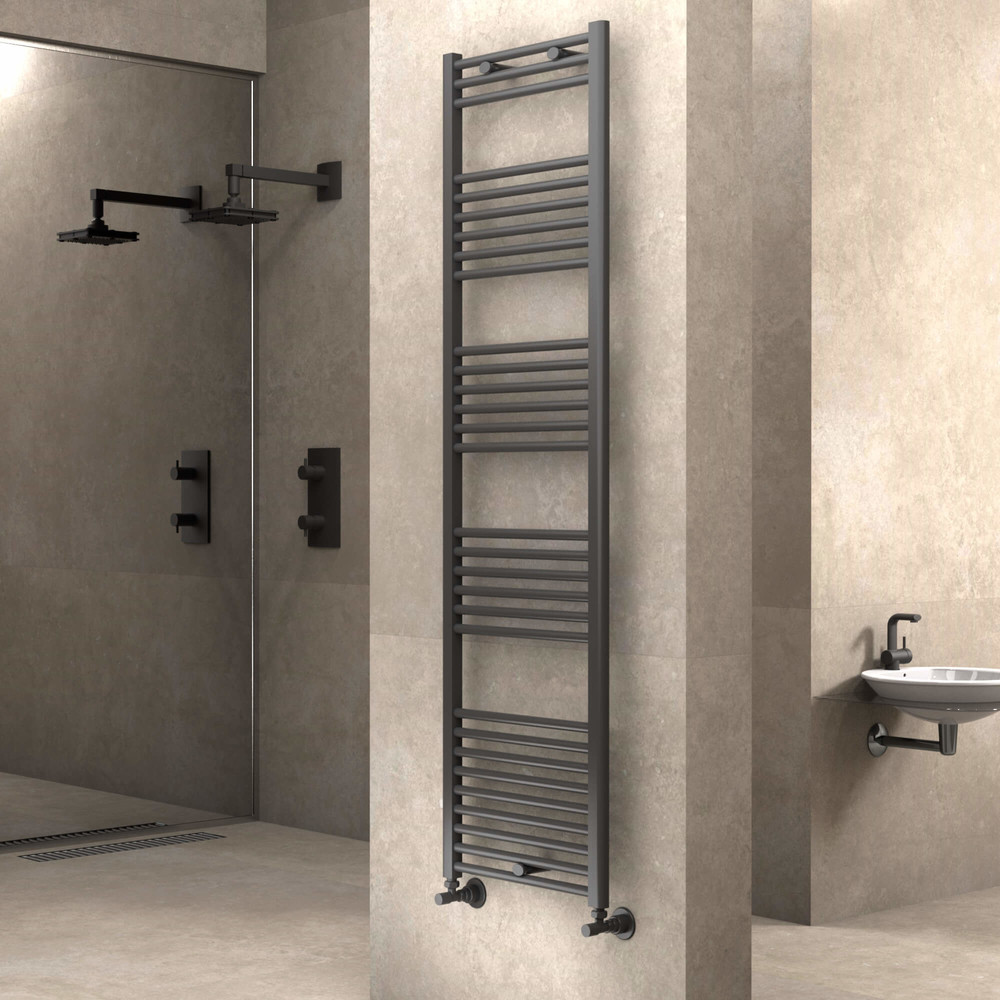

• Model = Haiti
• Material =Steel
• Width= 500mm
• Height = 1800mm
• Tapping Distance = 455 mm
• Color / Coating = Anthracite
• Horizontal Pipe Quantity= 30Pieces
• Horizontal Pipe Dimension = 22mm
• Vertical Collector Size= 30x40mm D Profile
• Maximum Working Pressure= 10bar
• Wall to Center of Inlet= 65-85 mm
• Wall Projection Distance=80-100 mm
• Towel Warmer Thread Dimension=1/2"
• Water Volume= 7,4lt
• Weight= 10kg
• Boxed Weight=10,9kg
• Box Size= 52x182x3,8cm
• Assembly Set Is Included In The Price,Included in the Box.
Prices do not include pipe sleeves pls. refer to page "Accessories" to see our rangeHeat Output
Kcal/h
• Heat Output 75/65-20°?t=50°C = 616Kcal/h
• Heat Output 90/70-20° ?t=60°C= 777Kcal/h
• Heat Output 55/45-20° ?t=30°C= 316Kcal/h
Watts
• Heat Output 75/65-20°?t=50°C= 716Watt
• Heat Output 90/70-20°?t=60°C= 902Watt
• Heat Output 55/45-20°?t=30°C= 367Watt
Btu
• Heat Output 75/65-20°?t=50°C= 2443Btu
• Heat Output 90/70-20°?t=60°C= 3079Btu
• Heat Output 55/45-20°?t=30°C= 1251Btu
Warranty:5 YearsDelivery Information:15 Day -
